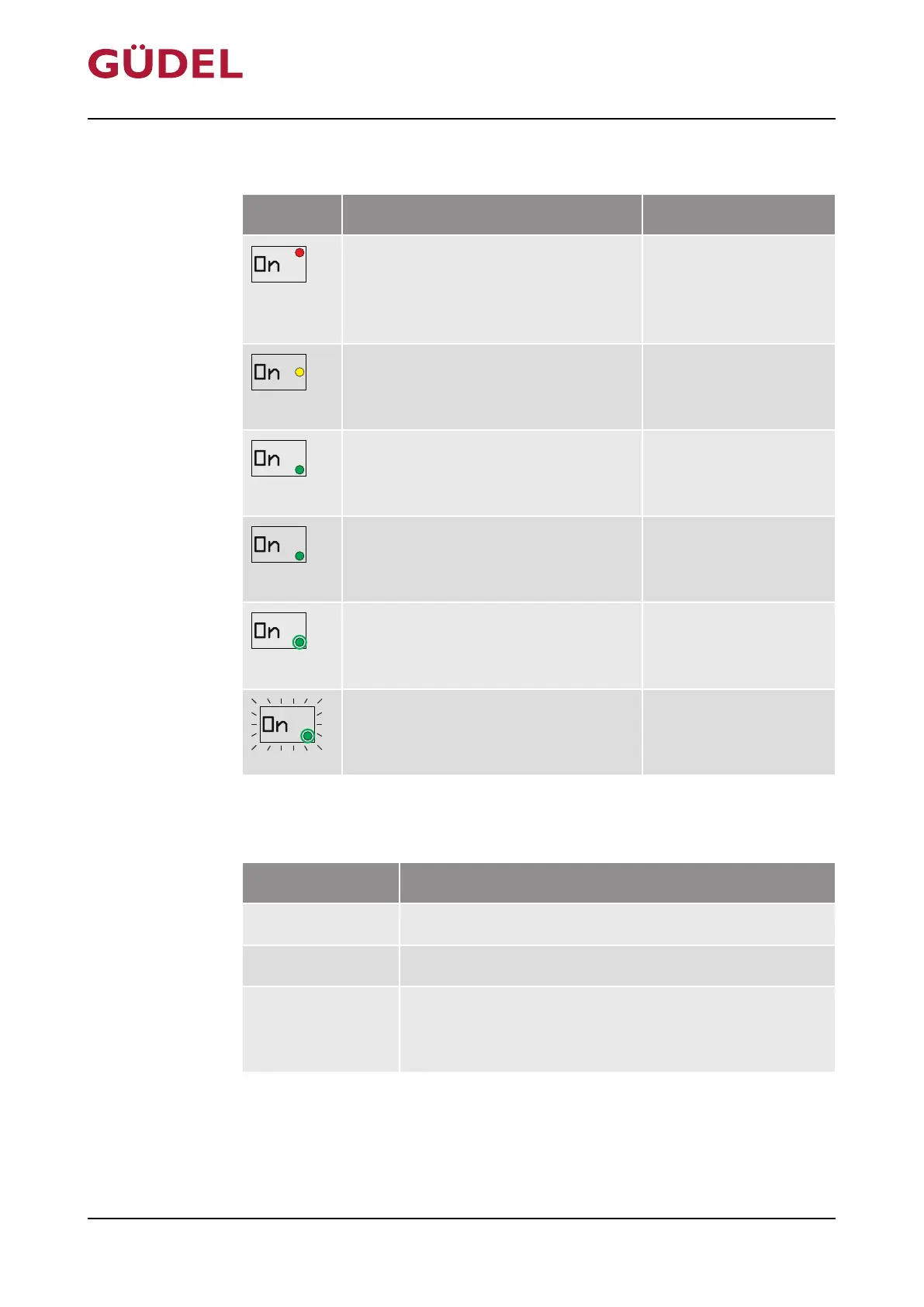

GUDEL FlexxPump4 N - Led; Character Display; Tab. 4-1 LED Explanation

LED
LCD Explanation Designation
On
The red LED lights up if an error
takes place and the FlexxPump had
been switched on before it oc-
curred.
There is an error with
the FlexxPump.
On
The yellow LED lights up if the mag-
netic peg touched the magnetic sur-
face.
The magnetic peg was
recognized by the
FlexxPump
On
The green LED lights up for approx.
10…18s during a dispensing
process.
The FlexxPump trans-
ports lubricant
On
The green LED lights up if changes
can be made and the magnetic pin
has previously been recognized.
Changes can be made
On
The green LED flashes every 5s
when the FlexxPump is switched
"On" and no error is at hand.
The FlexxPump is
ready for operation
On
The green LED and the LCD flash
2x when a value has been con-
firmed.
The altered value has
been adopted
Tab.4-1 LED explanation
Character display
Display in LCD Explanation
no display
The power supply is not connected
OFF The FlexxPump is switched off
On • The FlexxPump is ready for operation
• The FlexxPump pumps lubricant according to the
values set
Design, function OPERATING MANUAL FlexxPump4N Lubrication System
3422906891_v1.0_EN-US
34
