GUDEL FlexxPump4 N - Installing the Lubricant Pump; Fig. 5 -1 Installing the Lubricant Pump

5.4.2 Installing the lubricant pump
The installation position of the lubrication system is not important.
D003085
A B C

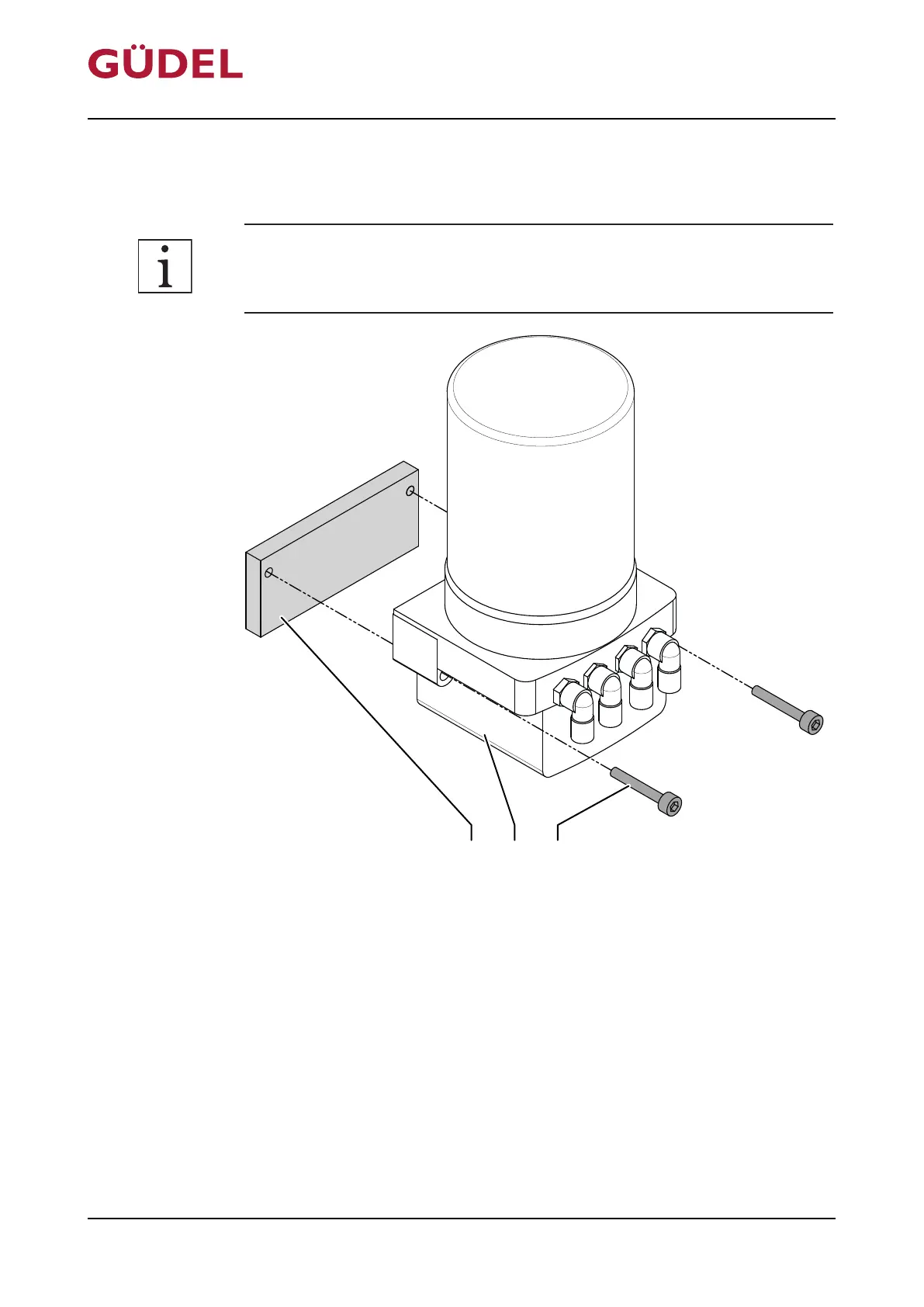

Fig.5-1 Installing the lubricant pump
A Installation site
B Lubricant pump
C Screw
Install the lubricant pump as follows:
1 Mount lubricant pump with two screws M6 L = 35mm
The lubricant pump has been assembled.
