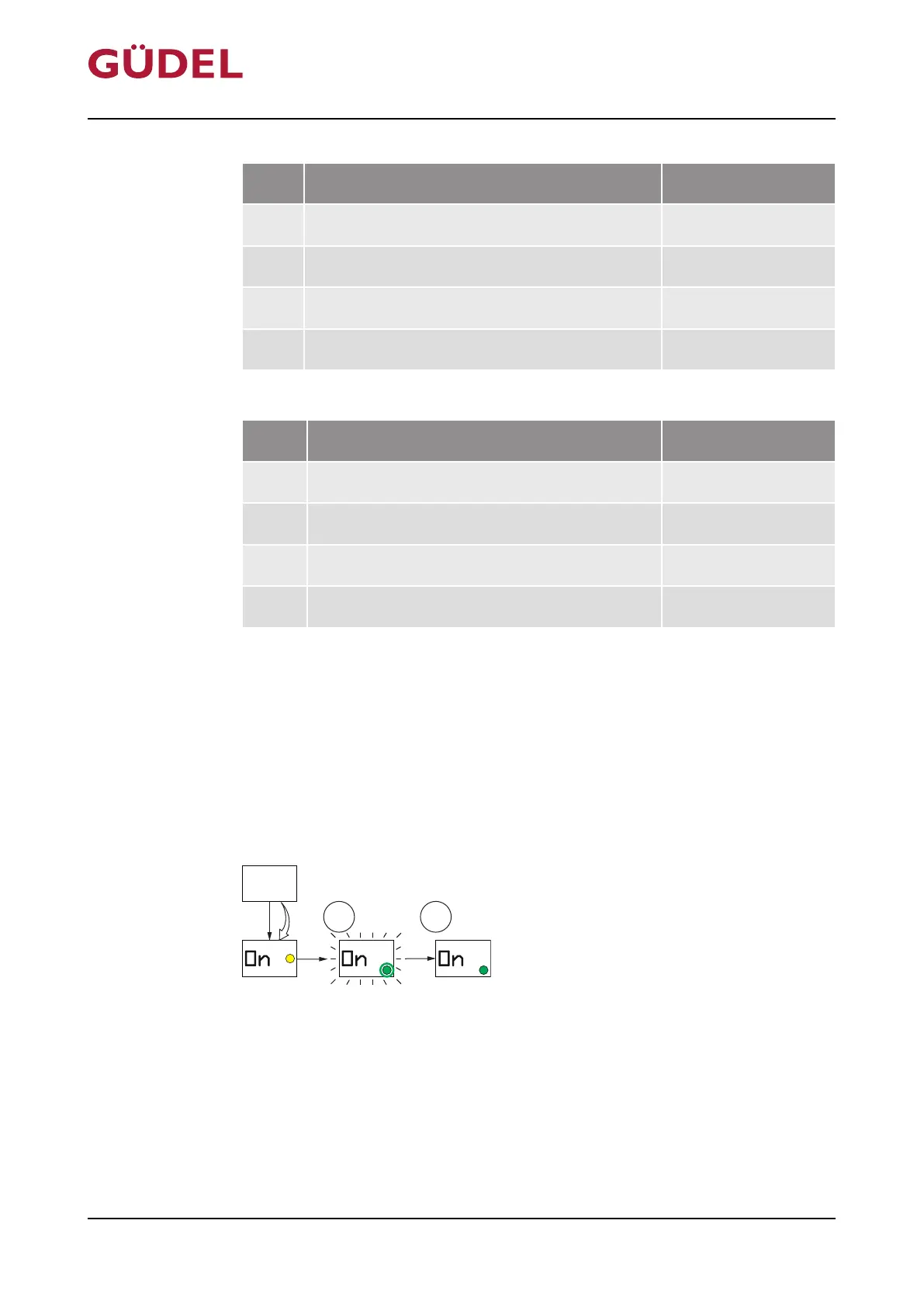

GUDEL FlexxPump4 N - Fig. 7 -13 Switch on Flexxpump; Tab. 7-14 Connection Assignment in Draining Time Mode or Hour Mode; Tab. 7-15 Connection Assignment in Pulse Mode

PIN Assignment Color
1 Input voltage 24VDC brown
2 No assignment white
3 Ground (GND), 0V blue
4 Output signal black
Tab.7-14 Connection assignment in draining time mode or hour mode
PIN Assignment Color
1 Input voltage 24VDC brown
2 Input signal of external control unit white
3 Ground (GND), 0V blue
4 Output signal to external control unit black
Tab.7-15 Connection assignment in pulse mode
Connect the product as follows:
Prerequisite: The hydraulics are connected
1 Connect the connecting cable to the connector plug
The product is connected
Switch on FlexxPump
2x
On
OFF
On
5s
On
Fig.7-13 Switch on FlexxPump
