5.4.3 Connect hydraulics
NOTE
Material damage
Closing hydraulic outputs creates an overpressure. The overpressure can
cause damage to the product.
• Do not close any hydraulic outputs
5.4.3.1 FlexxPump4 N/B 3-fold
Lubrication system with 3 lubrication points
D003487
A B C
D
F E

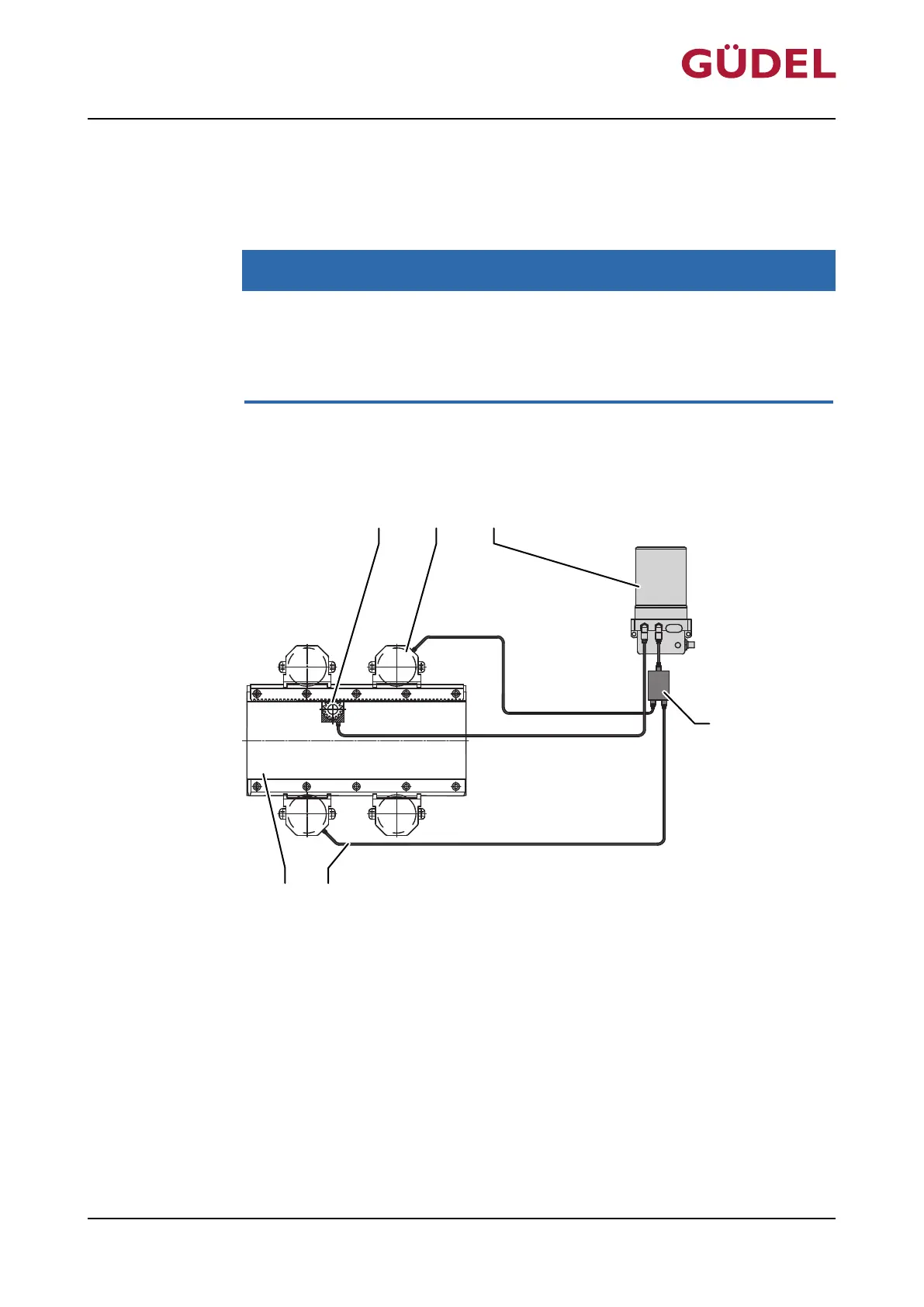

Fig.5-2 Design FlexxPump4 N/B 3-fold
A Lubricating pinion (not included in the
scope of delivery)
D Splitter
B Lubricating element (not included in the
scope of delivery)
E Lubrication line diameter 6/3mm
C FlexxPump4N/B F 1. Axis (not included in the scope of de-
livery)
