H3C S5130S-EI series User Manual

12

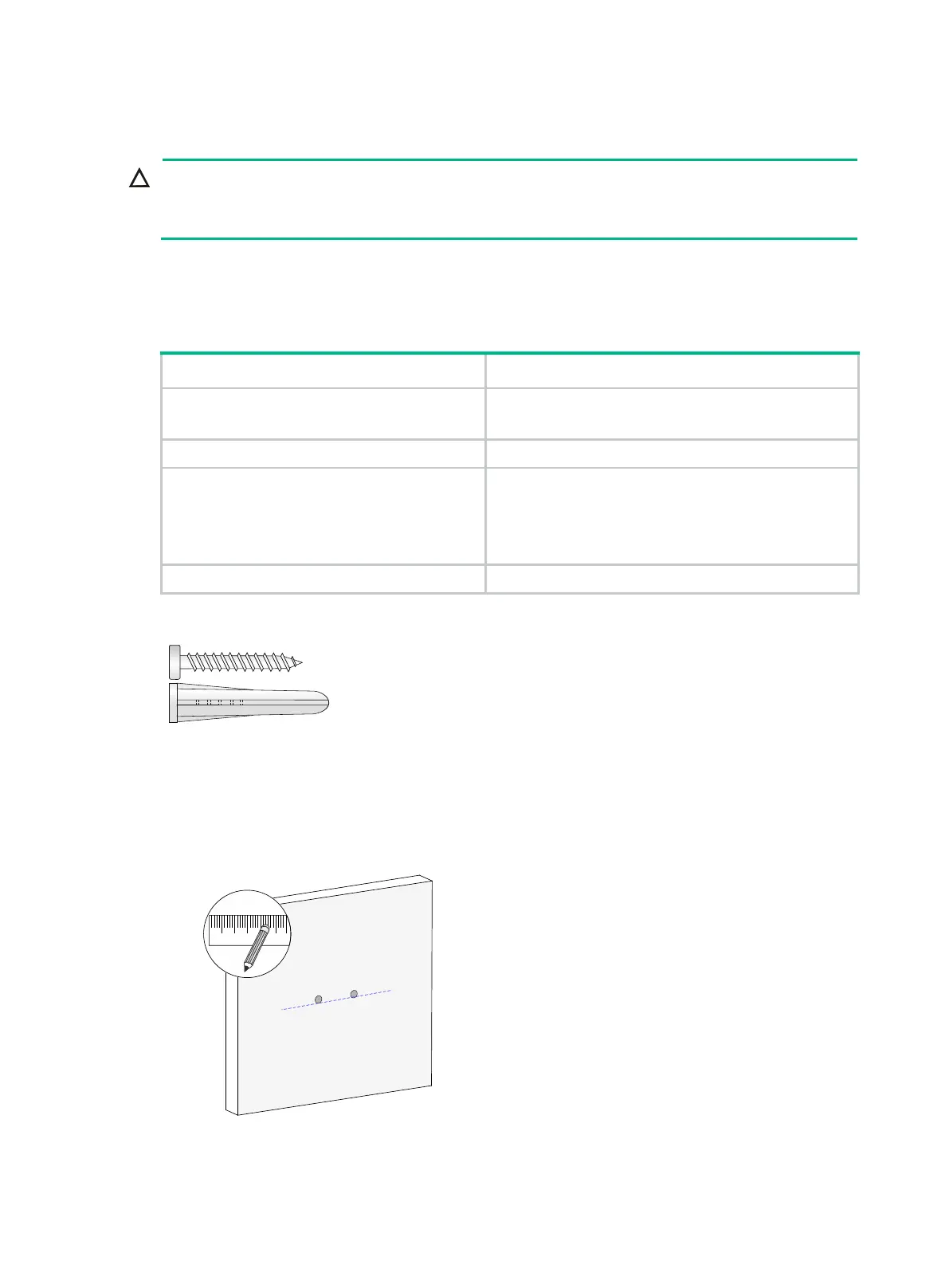

Mounting the switch on a wall
CAUTION:
•
Before drilling holes in a wall, make sure no electrical lines exist in the wall.
• Leave a minimum clearance of 10 mm (0.39 in) around the chassis for heat dissipation.
Table 4 describes the switch models that support wall mounting and installation holes distances
required for wall-mounting the switch. Screw anchors and screws as shown in Figure 10 are
provided with these switches for wall-mounting.
Table 4 Installation hole distances for switch models that support wall mounting
Switch model Hole distance
S5130S-10P-EI
S5130S-12TP-EI
170 mm (6.69 in)
S5130S-20P-EI 176 mm (6.93 in)
S5130S-10P-HPWR-EI
S5130S-12TP-HPWR-EI
S5130S-16S-PWR-EI
S5130S-10MS-UPWR-EI
102 mm (4.02 in)
S5130S-20P-PWR-EI 116 mm (4.57 in)
Figure 10 Screw anchor and screw
To mount the switch on a wall:
1. Mark two installation holes on the wall. Make sure the two holes are on the same horizontal line.
See Table 4 for the distance requirement between the two holes.
Figure 11 Installing the switch on a wall (1)

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
