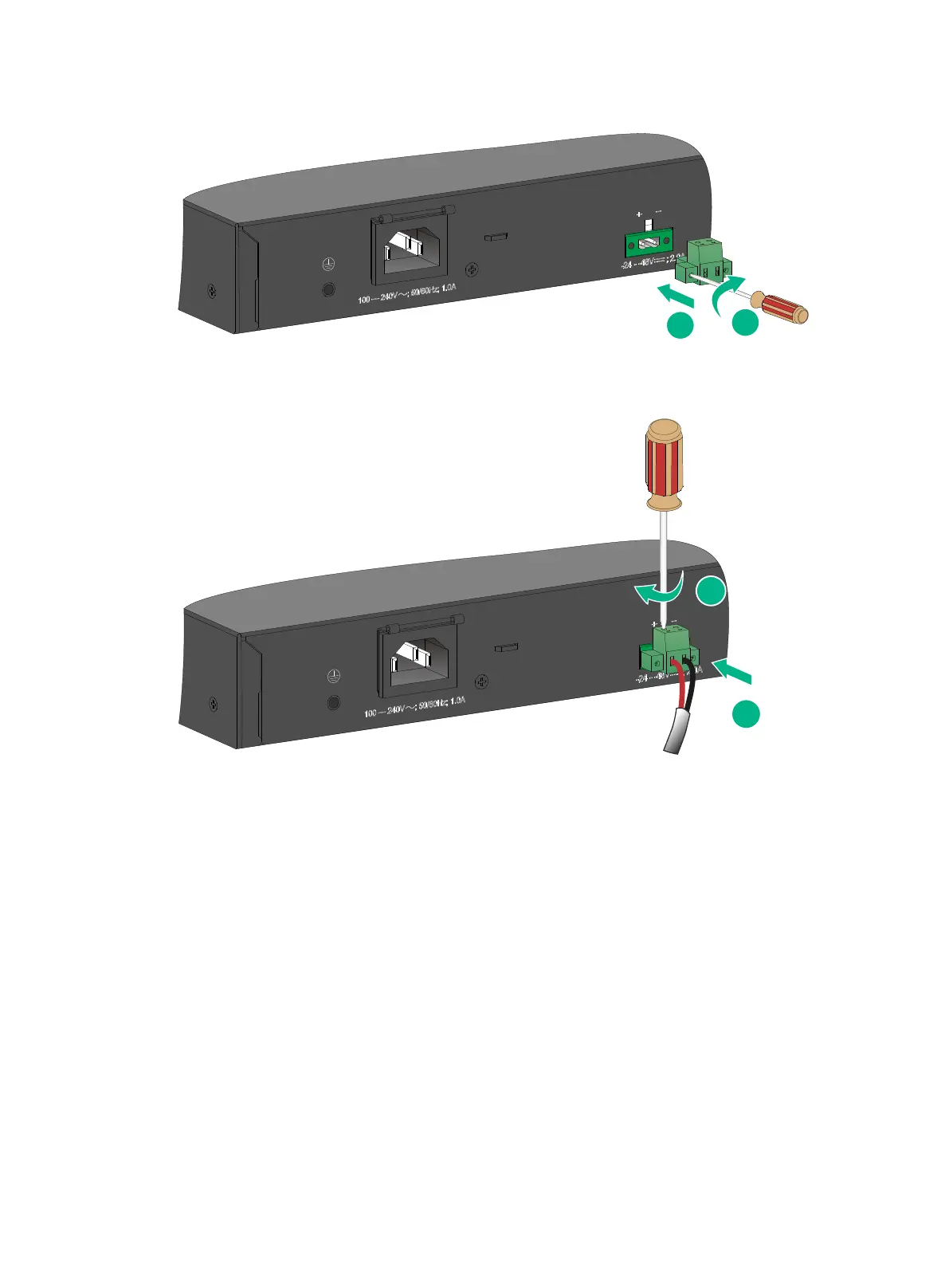

Figure 26 Attaching the terminal block to the fixed DC power module
Figure 27 Securing the DC power cord to the terminal block
Connecting the power cord for a PSR75-12A/PSR150-A1
power module
1. Pull the bail latch leftward, as shown in Figure 28.
2. Connect the plug of the power cord to the power receptacle on the switch. See Figure 29.
3. Pull the bail latch rightward to secure the plug to the power receptacle. See Figure 29.
4. Connect the other end of the power cord to a power source.
5. For a PSR150-A1 power module, connect the power cord to an AC power source. For a
PSR75-12A power module, connect the power cord to an AC power source or a 240V
high-voltage DC power source.
1
2
1
2

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
