H3C S5130S-EI series User Manual

63

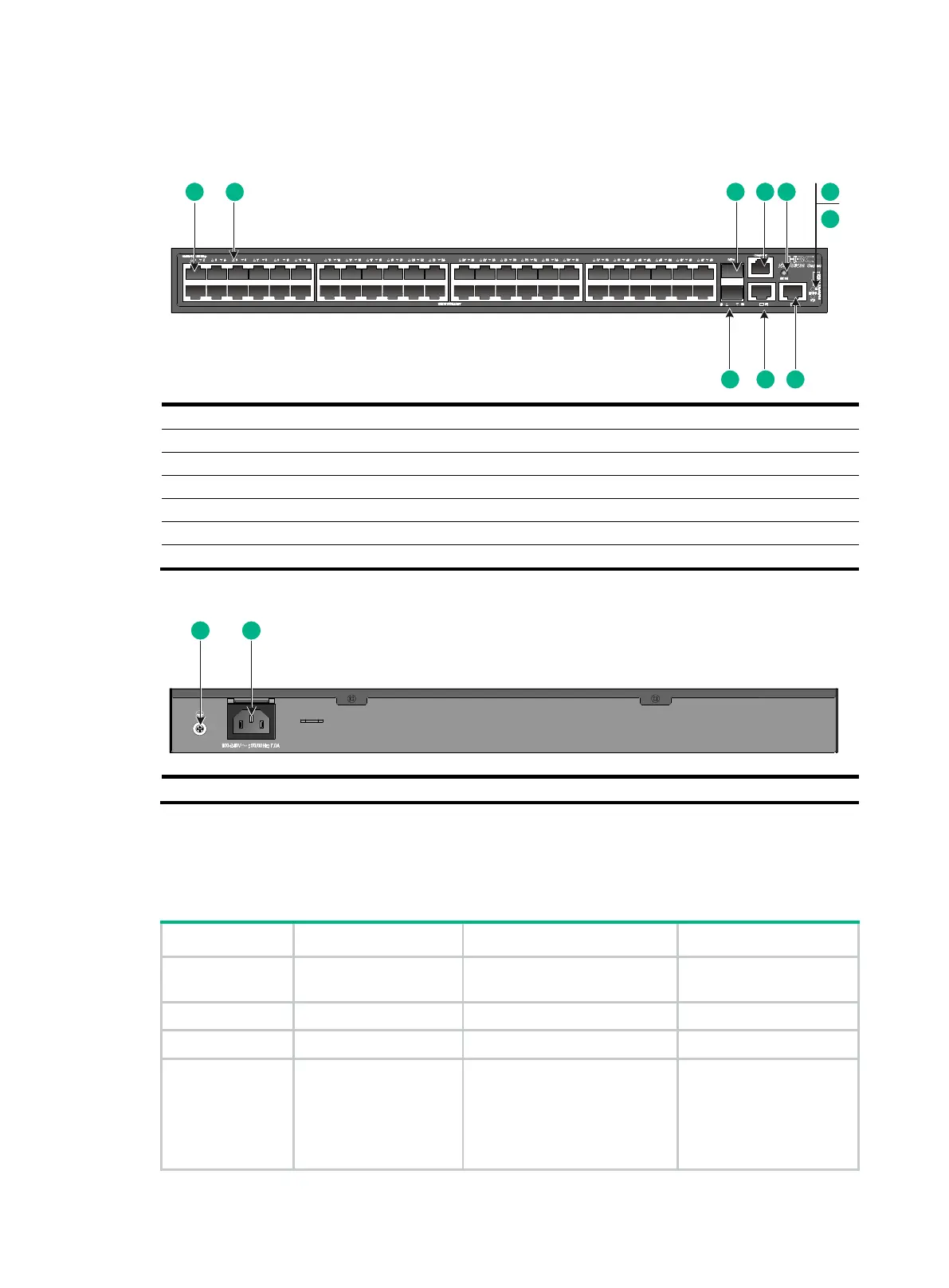

S5130S-52ST-PWR-EI
Figure 102 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP+ port
(4) Console port
(5) Port LED mode switching button
(6) Mode LED (MODE)
(7) System status LED (SYS)
(8) 10/5/2.5/1GBASE-T autosensing Ethernet port
(9) 10/5/2.5/1GBASE-T autosensing Ethernet port LED
(10) SFP+ port LED
Figure 103 Rear panel
(1) AC-input power receptacle
(2) Grounding screw
Technical specifications
Table 10 Technical specifications for non-PoE switch models (1)
Item S5130S-10P-EI S5130S-12TP-EI S5130S-20P-EI
Dimensions (H ×
W × D)
43.6 × 266 × 161 mm
(1.72 × 10.47 × 6.34 in)
43.6 × 266 × 161 mm (1.72 ×
10.47 × 6.34 in)
43.6 × 330 × 230 mm
(1.72 × 12.99 × 9.06 in)
Weight ≤ 1.5 kg (3.31 lb) ≤ 1.5 kg (3.31 lb) ≤ 2 kg (4.41 lb)
Console port 1 × serial console port 1 × serial console port 1 × serial console port
10/100/1000BAS
E-T autosensing
Ethernet port
8
10 (The two highest-numbered
10/100/1000BASE-T
autosensing Ethernet ports
form combo interfaces with
their corresponding SFP ports,
respectively.)
16
1
2
3 4 5
10
7
6
9 8
2
1

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
