H3C S5130S-EI series - S5130 S-52 S-Pwr-Ei

59

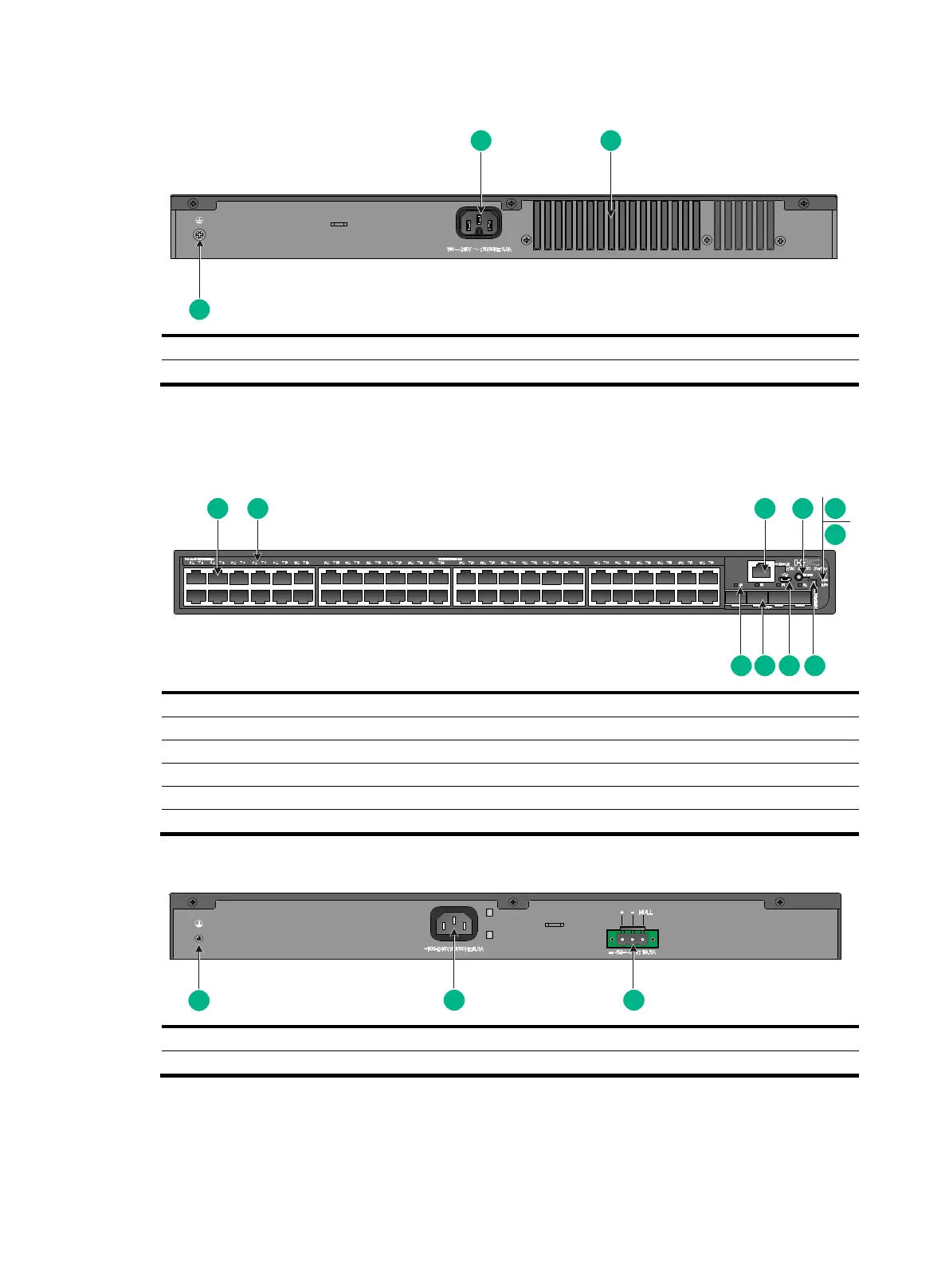

Figure 93 Rear panel
(1) AC-input power receptacle
(2) Heat sink
(3) Grounding screw
S5130S-52S-PWR-EI
Figure 94 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port
(4) Port LED mode switching button
(5) System status LED (SYS)
(6) RPS status LED (RPS)
(7) Mode LED (MODE)
(8) Micro USB console port
(9) SFP+ port
(10) SFP+ port LED
Figure 95 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
1
2
3
1
3
4
6
2
5
7
8
10
9
1
2 3
