S5130S-28S-HPWR-EI

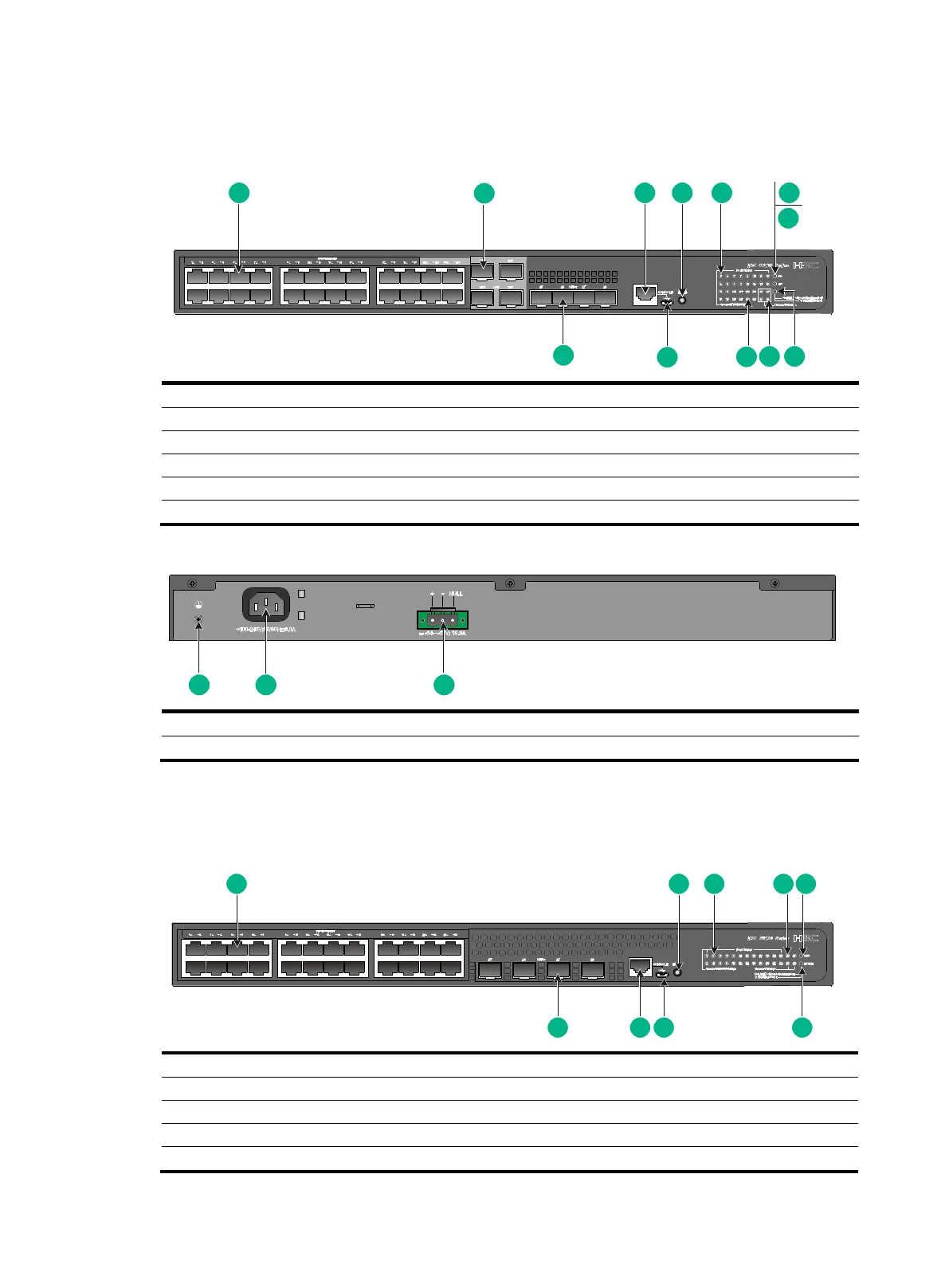

Figure 90 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) SFP port
(3) Console port
(4) Port LED mode switching button
(5) 10/100/1000BASE-T autosensing Ethernet port LED
(6) System status LED (SYS)
(7) RPS status LED (RPS)
(8) Mode LED (MODE)
(9) SFP+ port LED
(10) SFP port LED
(11) Micro USB console port
(12) SFP+ port
Figure 91 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
S5130S-28S-HPWR-EI-Q
Figure 92 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Port LED mode switching button
(3) 10/100/1000BASE-T autosensing Ethernet port LED
(4) SFP+ port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) Micro USB console port
(8) Console port (CONSOLE)
(9) SFP+ port
1
12
4
6
3
9
5
7
8
2
10
11
1
2
3
1
7
9
3 4
8
6
2 5

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
