S5130S-28ST-PWR-EI

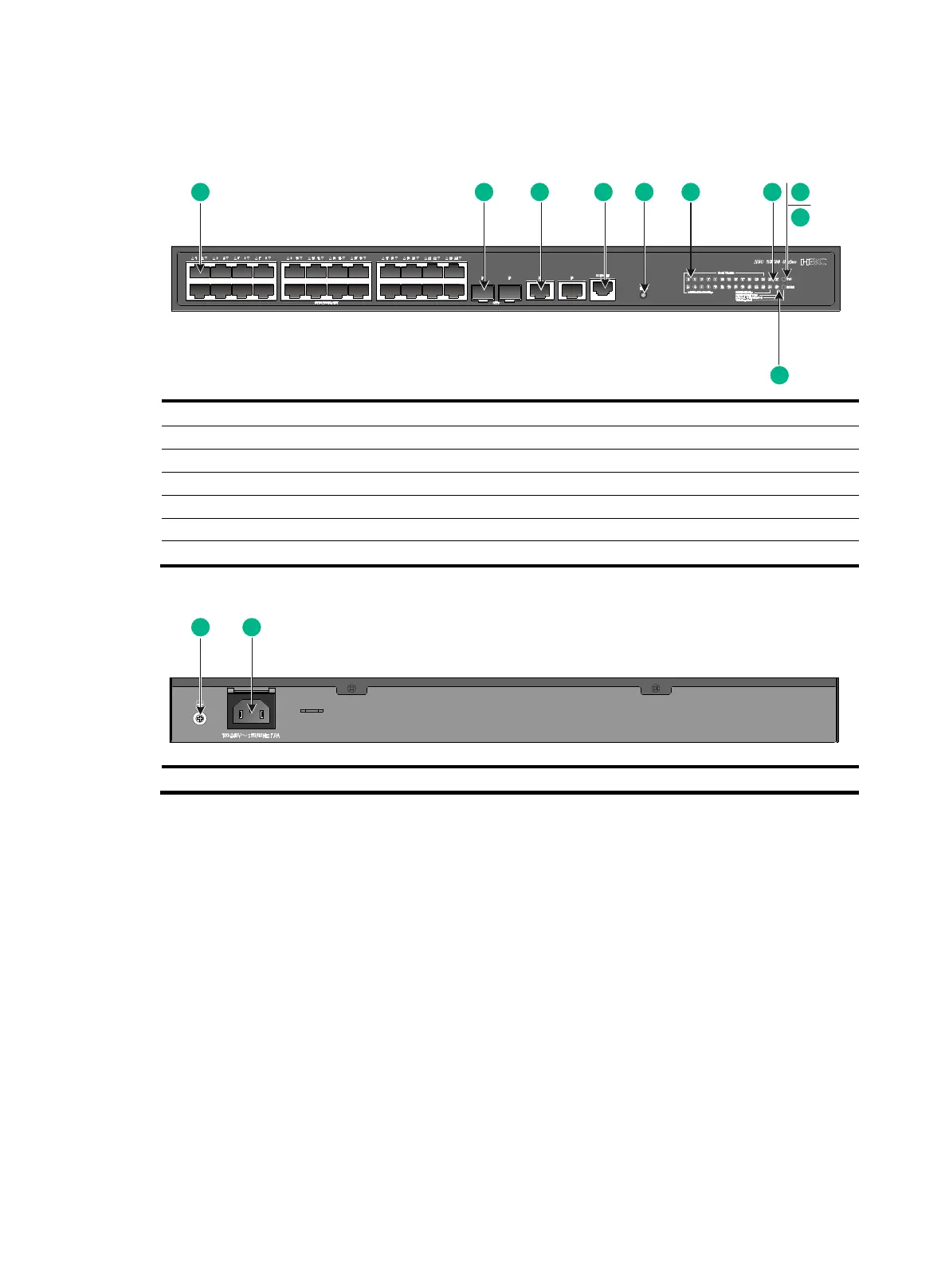

Figure 100 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) SFP+ port
(3) 10/5/2.5/1GBASE-T autosensing Ethernet port
(4) Console port
(5) Port LED mode switching button
(6) 10/100/1000BASE-T autosensing Ethernet port LED
(7) SFP+ port LED
(8) System status LED (SYS)
(9) Mode LED (MODE)
(10) 10/5/2.5/1GBASE-T autosensing Ethernet port LED
Figure 101 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
