46

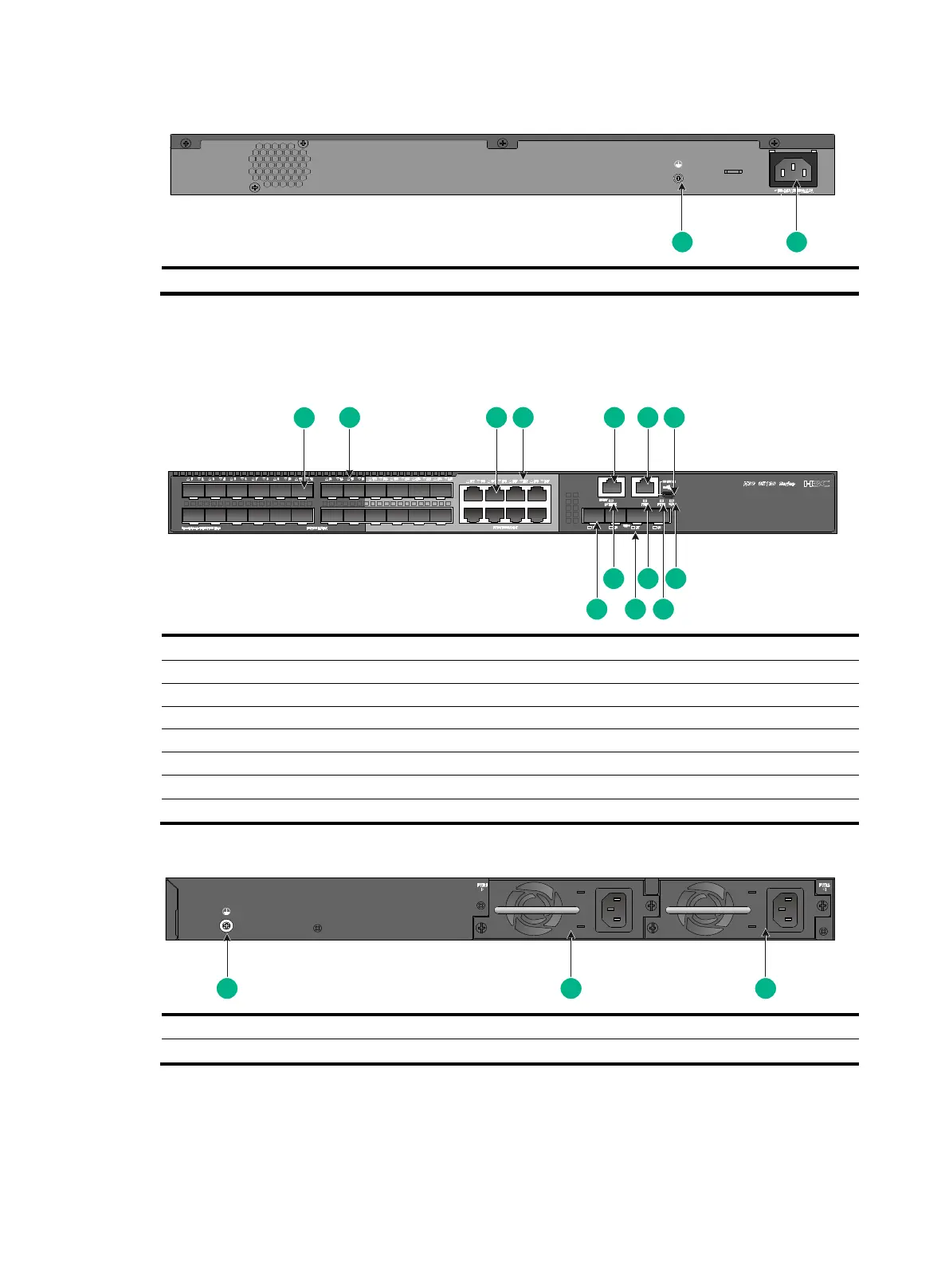

Figure 59 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5130S-28F-EI
Figure 60 Front panel
(1) SFP port
(2) SFP port LED
(3) 10/100/1000BASE-T autosensing Ethernet port
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) Management Ethernet port
(6) Console port
(7) Micro USB console port
(8) System status LED (SYS)
(9) Power module 2 status LED (PWR2)
(10) Power module 1 status LED (PWR1)
(11) SFP+ port LED
(12) Management Ethernet port status LED (ACT/LINK)
(13) SFP+ port
Figure 61 Rear panel
(1) Grounding screw
(2) Power module 1 (PWR1)
(3) Power module 2 (PWR2)
The S5130S-28F-EI switch comes with power module 1 empty and power module slot 2 installed
with a filler panel. You can install one or two power modules for the switch as needed. In Figure 61,
two PSR150-A1 AC power modules are installed. For information about installing and removing a
power module, see "Installing and removing power modules."
1 2
1
2
3
4
7
5
6
8
9
10
11
12
13
1
2
3
