S5130S-28TP-EI

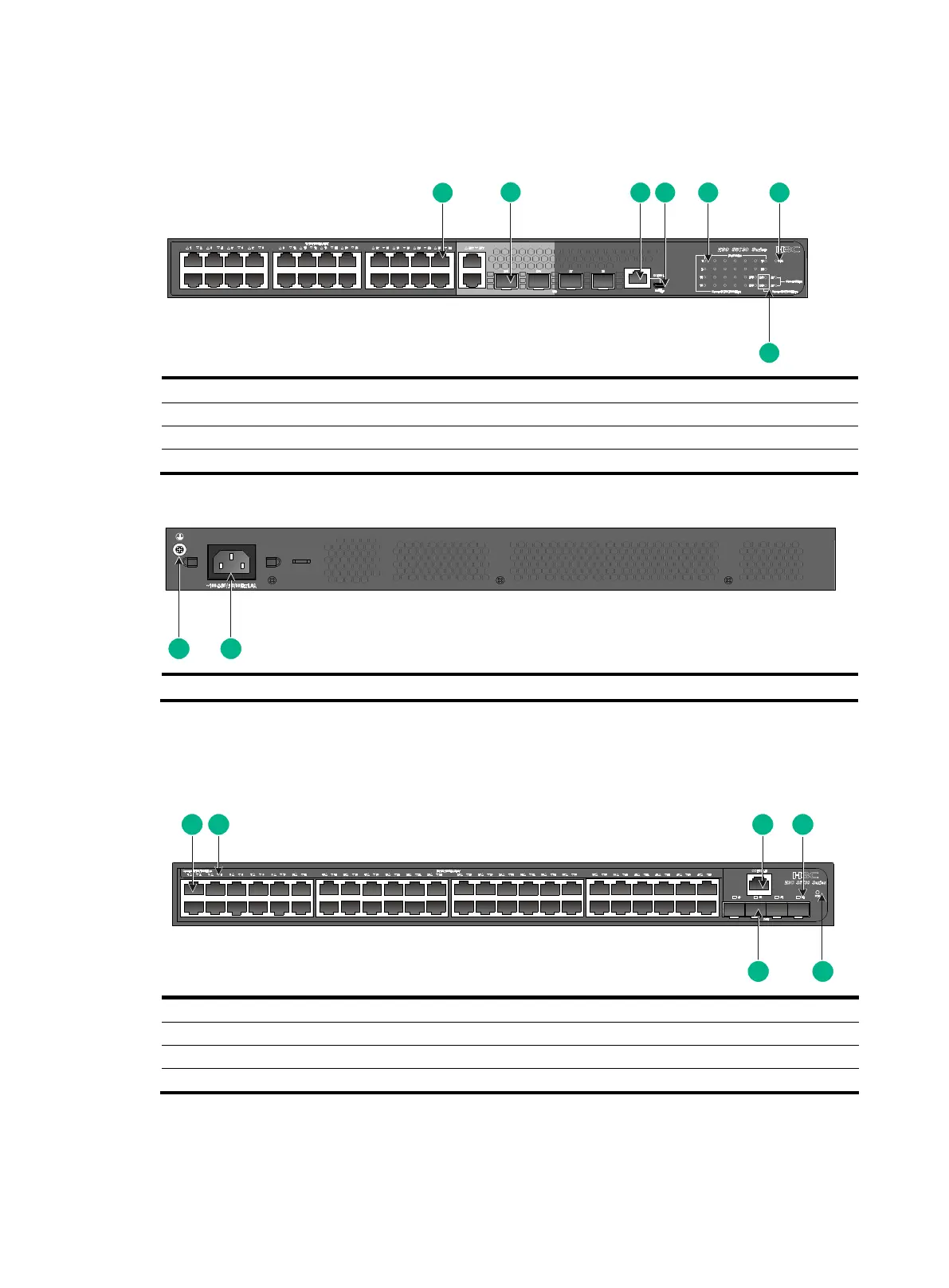

Figure 50 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) SFP port
(3) Console port
(4) Micro USB console port
(5) 10/100/1000BASE-T autosensing Ethernet port LED
(6) System status LED (SYS)
(7) SFP port LED
Figure 51 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5130S-52P-EI/S5130S-52P-EI-M
Figure 52 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port
(4) SFP port LED
(5) System status LED (SYS)
(6) SFP port
1
2
3
4
7
5 6
1
2
1 2 3 4
6 5
