H3C S5130S-EI series User Manual

21

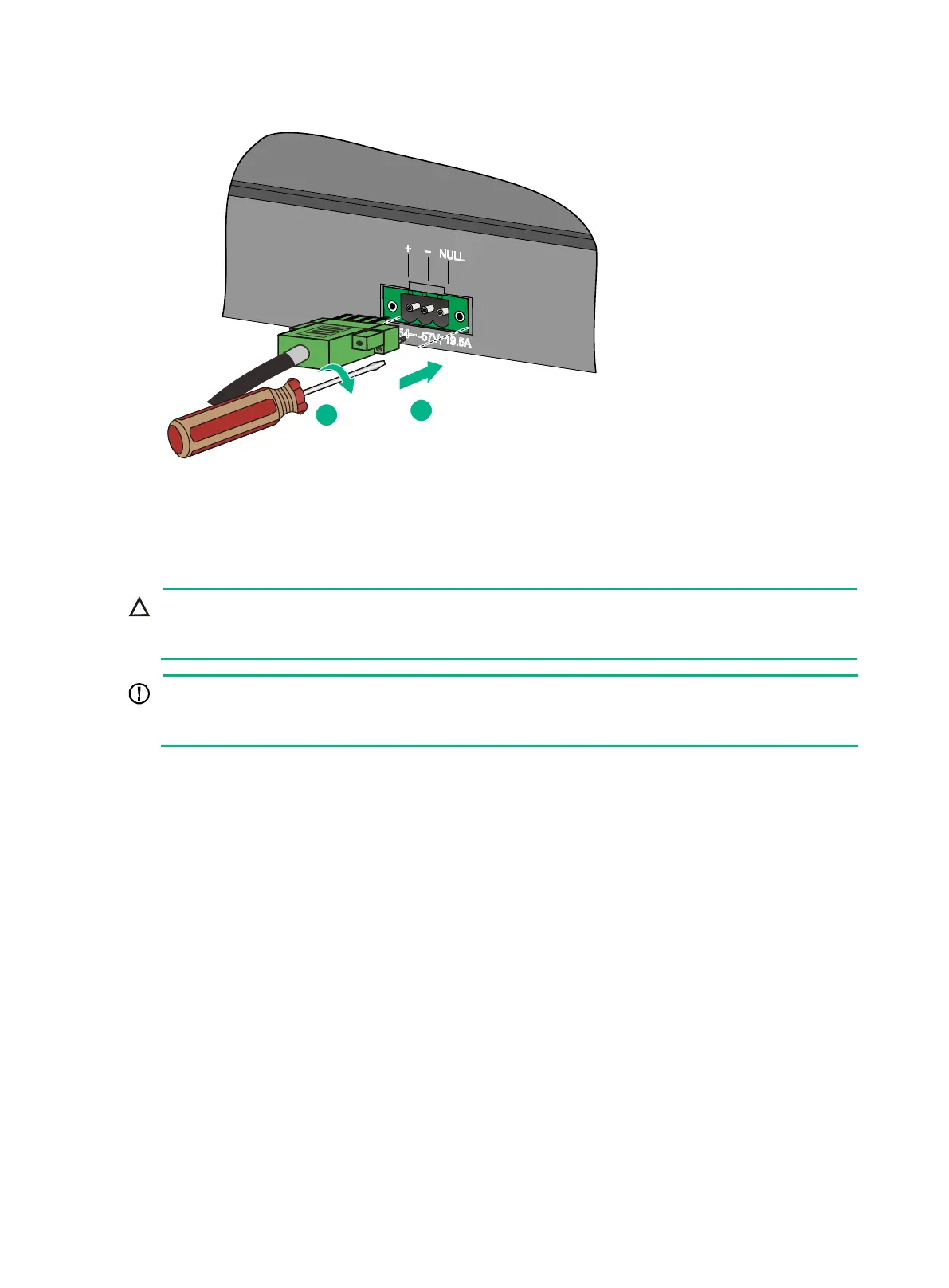

Figure 25 Connecting the DC power cord for the fixed DC power module
Connecting the DC power cord for the fixed DC power
module (method 2)
CAUTION:
To avoid connection mistakes, i
dentify the positive (+) and negative (-) marks
above the DC power
receptacle before connecting the switch to a –48 VDC power source.
IMPORTANT:
No DC power cord is provided with the switch. As a best practice, purchase a DC power cord with a
current carrying capacity over 6A.
To connect the DC power cord for the fixed DC power module:
1. Correctly orient the terminal block and attach the terminal block to the power receptacle on the
power module, as shown by callout 1 in Figure 26.
If you orient the terminal block upside down, you cannot attach it to the power receptacle.
2. Use a flat-head screwdriver to fasten the screws on the terminal block to secure the terminal
block to the power receptacle. See callout 2 in Figure 26.
3. Insert the two DC power wires into the terminal block, as shown by callout 1 in Figure 27.
4. Use a flat-head screwdriver to fasten the screw at the top of the terminal block to secure the DC
power cord to the power receptacle. See callout 2 in Figure 27.
5. Connect the other end of the power cord to a –48 VDC power source.
1
2

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
