H3C S5130S-EI series - S5130 S-10 Ms-Upwr-Ei

61
S5130S-10MS-UPWR-EI

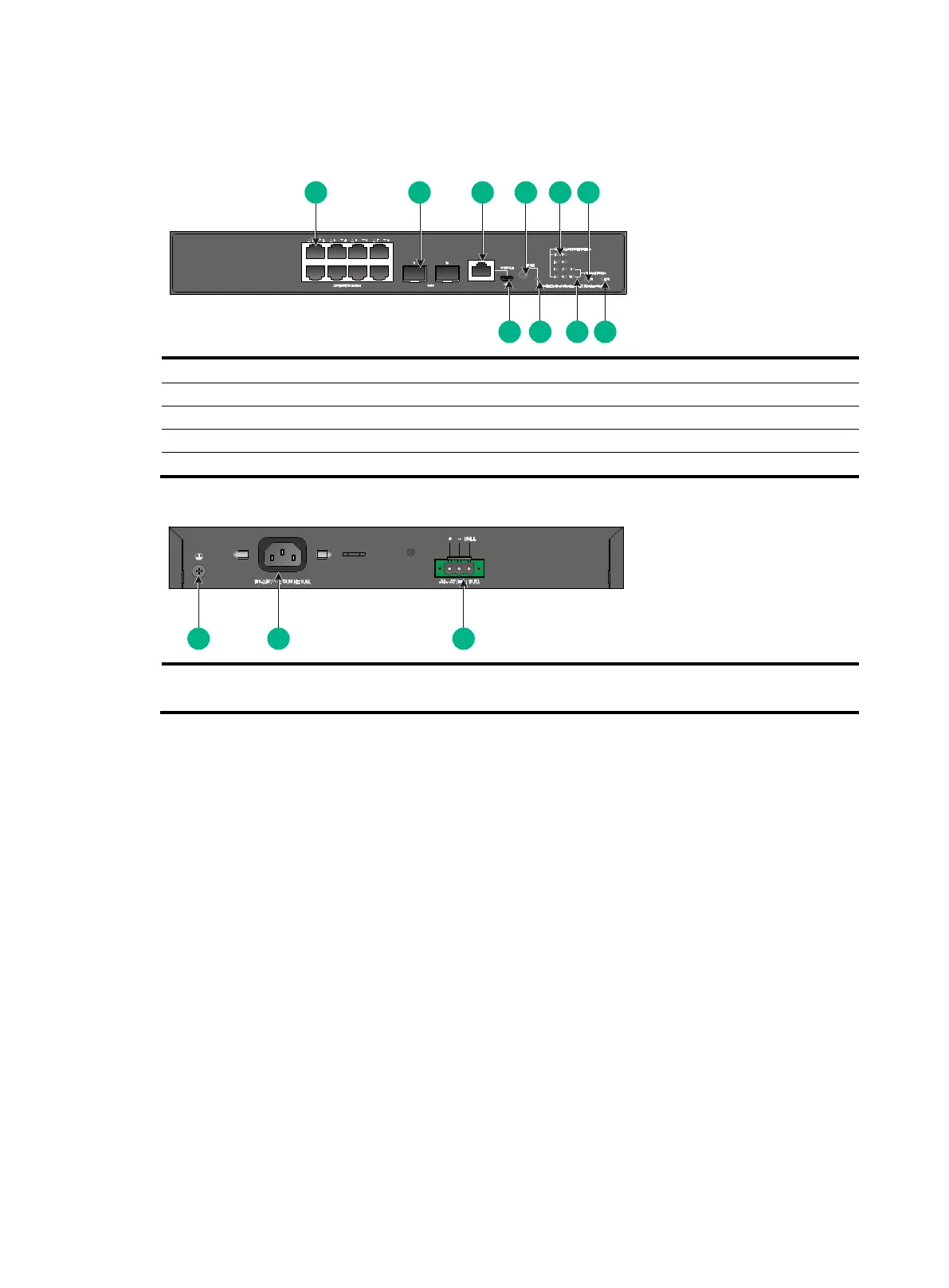

Figure 98 Front panel
(1) 2.5G/1000/100BASE-T autosensing Ethernet port
(2) SFP+ port
(3) Console port
(4) Port LED mode switching button
(5) 2.5G/1000/100BASE-T autosensing Ethernet port LED
(6) System status LED (SYS)
(7) RPS status LED (RPS)
(8) SFP+ port LED
(9) Mode LED (MODE)
(10) Micro USB console port
Figure 99 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
1
2 3
4
5
8
710
9
6
1
32
