10-GE SFP+ cable Max transmission distance
LSWM3STK 3 m (9.84 ft)
LSTM1STK 5 m (16.40 ft)

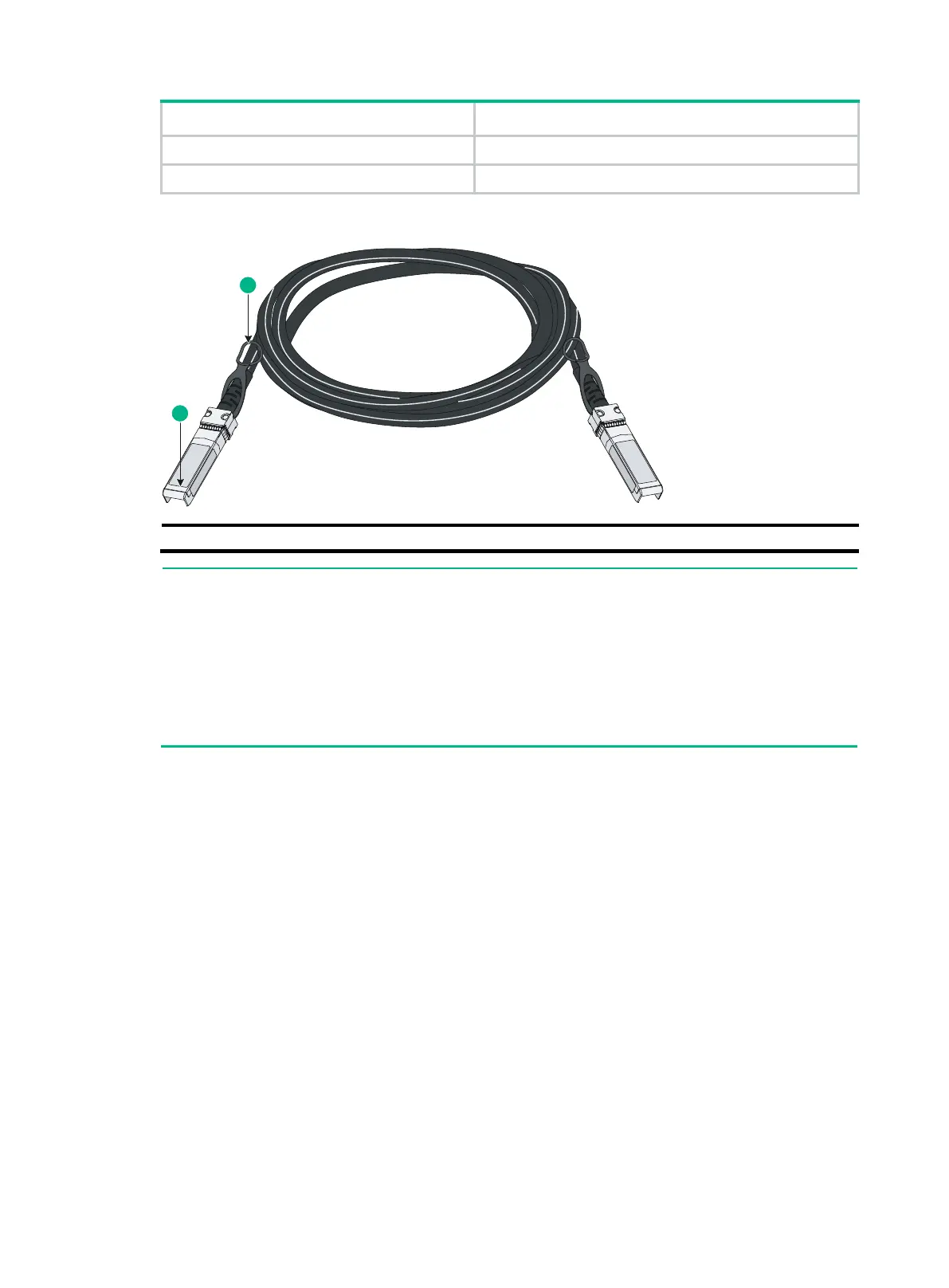

Figure 104 10-GE SFP+ cable
(1) Connector
(2) Pull latch
NOTE:
•
As a best practice, use H3C SFP/SFP+ transceiver modules or SFP+ cables for the SFP+ ports
.
•
The H3C SFP/SFP+ transceiver modules and SFP+ cables available for the SFP+ ports are
subject to change over time. For the most up-to-date list of H3C SFP/SFP+ transceiver modules
and SFP+ cables available for the SFP+ ports, contact your H3C sales representative or
technical support engineer.
•
For the specifications for the H3C SFP/SFP+ transceiver modules and SFP+ cables, see H3C
Transceiver Modules User Guide.
Combo interface
The S5130S-28P-HPWR-EI and S5130S-28S-HPWR-EI switches each provide four combo
interfaces. The S5130S-12TP-EI, S5130S-28TP-EI, S5130S-52TP-EI, S5130S-12TP-HPWR-EI,
and S5130S-52F-EI switches each provide two combo interfaces. The S5130S-28F-EI and
S5130S-28PS-EI switches provide eight combo interfaces. Each combo interface contains an SFP
port and a 10/100/1000BASE-T autosensing Ethernet port. Only one of these two ports operates at a
time.
LEDs
System status LED
The system status LED shows the operating status of the switch.
1
2
