Switch model Available power source Connection procedure reference
S5130S-28F-EI
S5130S-52F-EI
AC power source
Connecting the power cord for a
PSR75-12A/PSR150-A1 power module
240V high-voltage DC power
source
Connecting the power cord for a
PSR75-12A/PSR150-A1 power module
–48 VDC power source in the
equipment room
Connecting the power cord for a
PSR150-D1 power module
H3C RPS800-A or
RPS1600-A
Connecting the power cord for a
PSR150-D1 power module
S5130S-16S-PWR-EI
S5130S-28TP-EI
S5130S-52TP-EI
AC power source
Connecting the AC power cord for the fixed
AC power module (method 2)
S5130S-28PS-EI
AC power source
Connecting the AC power cord for the fixed
AC power module (method 1)
–48 VDC power source in the
equipment room
Connecting the DC power cord for the fixed
DC power module (method 2)
Other S5130S-EI switches AC power source
Connecting the AC power cord for the fixed
AC power module (method 1)
The S5130S-28F-EI and S5130S-52F-EI switches use removable power modules. The PSR75-12A,
PSR150-A1, and PSR150-D1 power modules are available for the switch. The PSR150-A1 power
module uses AC power. The PSR75-12A power module uses AC or 240V high-voltage DC power.
The PSR150-D1 power module uses –48 VDC power or RPS power.
Connecting the AC power cord for the fixed AC power
module (method 1)
1. Connect the plug of the AC power cord to the AC-input power receptacle on the switch. See
Figure 21.
2. Use a cable tie to secure the power cord to the handle near the AC power receptacle. See
Figure 22.
3. Connect the other end of the power cord to an AC power source.

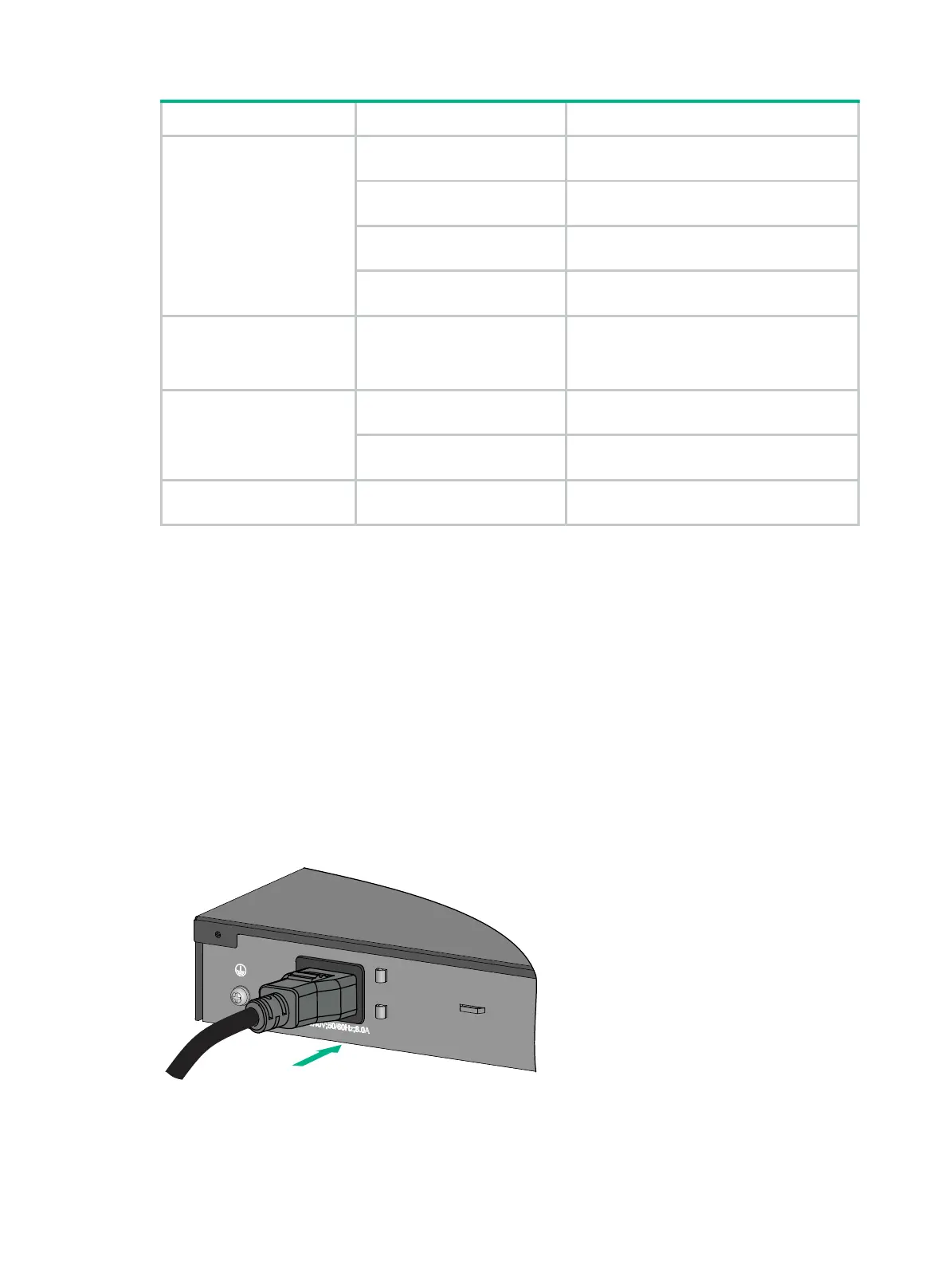

Figure 21 Connecting the AC power cord for the fixed AC power module
