H3C S5130S-EI series - S5130 S-52 P-Pwr-Ei; S5130 S-16 S-Pwr-Ei

56
S5130S-52P-PWR-EI

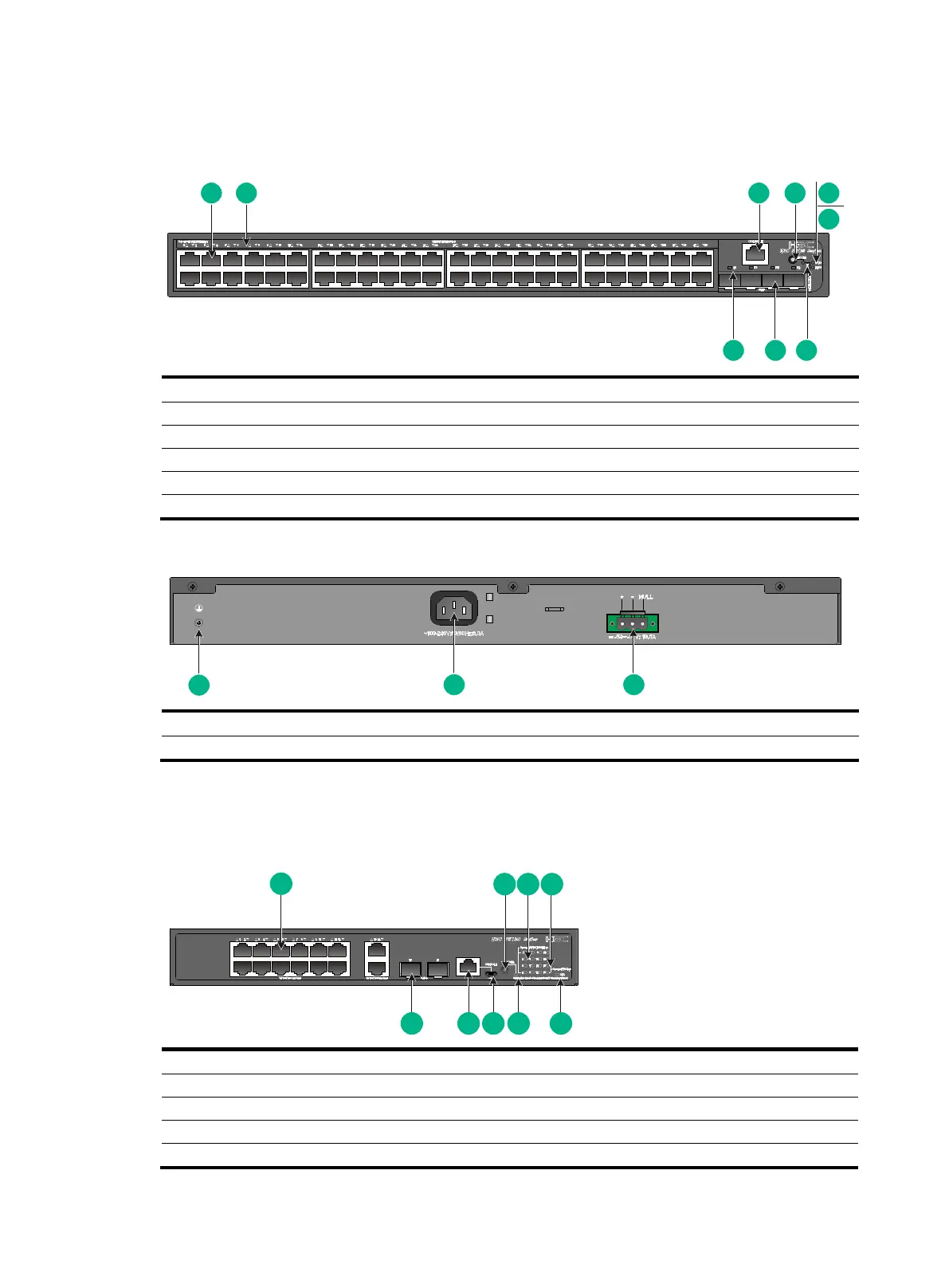

Figure 84 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port
(4) Port LED mode switching button
(5) System status LED (SYS)
(6) RPS status LED (RPS)
(7) Mode LED (MODE)
(8) SFP port
(9) SFP port LED
Figure 85 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
S5130S-16S-PWR-EI
Figure 86 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Port LED mode switching button
(3) 10/100/1000BASE-T autosensing Ethernet port LED
(4) SFP+ port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) Micro USB console port
(8) Console port (CONSOLE)
(9) SFP+ port
1 3
4
6
2
5
789
1
2
3
1
2 3 4
58 679
