H3C S5130S-EI series - S5130 S-12 Tp-Ei; S5130 S-20 P-Ei

41
S5130S-12TP-EI

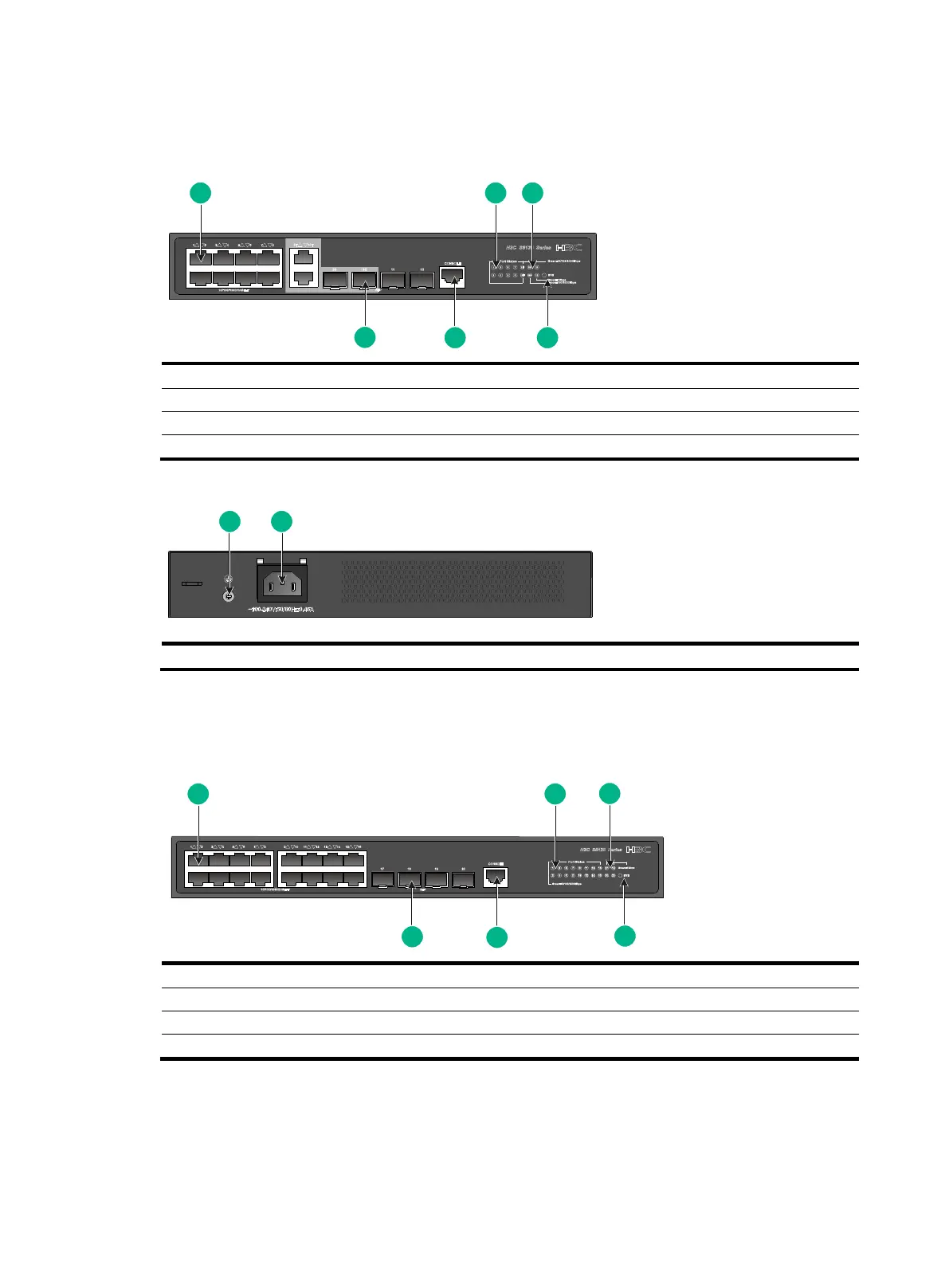

Figure 44 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP port LED
(4) System status LED (SYS)
(5) Console port
(6) SFP port
Figure 45 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5130S-20P-EI
Figure 46 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP port LED
(4) System status LED (SYS)
(5) Console port
(6) SFP port
1 2 3
45
6
2
1
1 2
3
4
6
5
