H3C S5130S-EI series - S5130 S-28 S-Ei;S5130 S-28 S-Ei-M; S5130 S-52 S-Ei;S5130 S-52 S-Ei-M

45

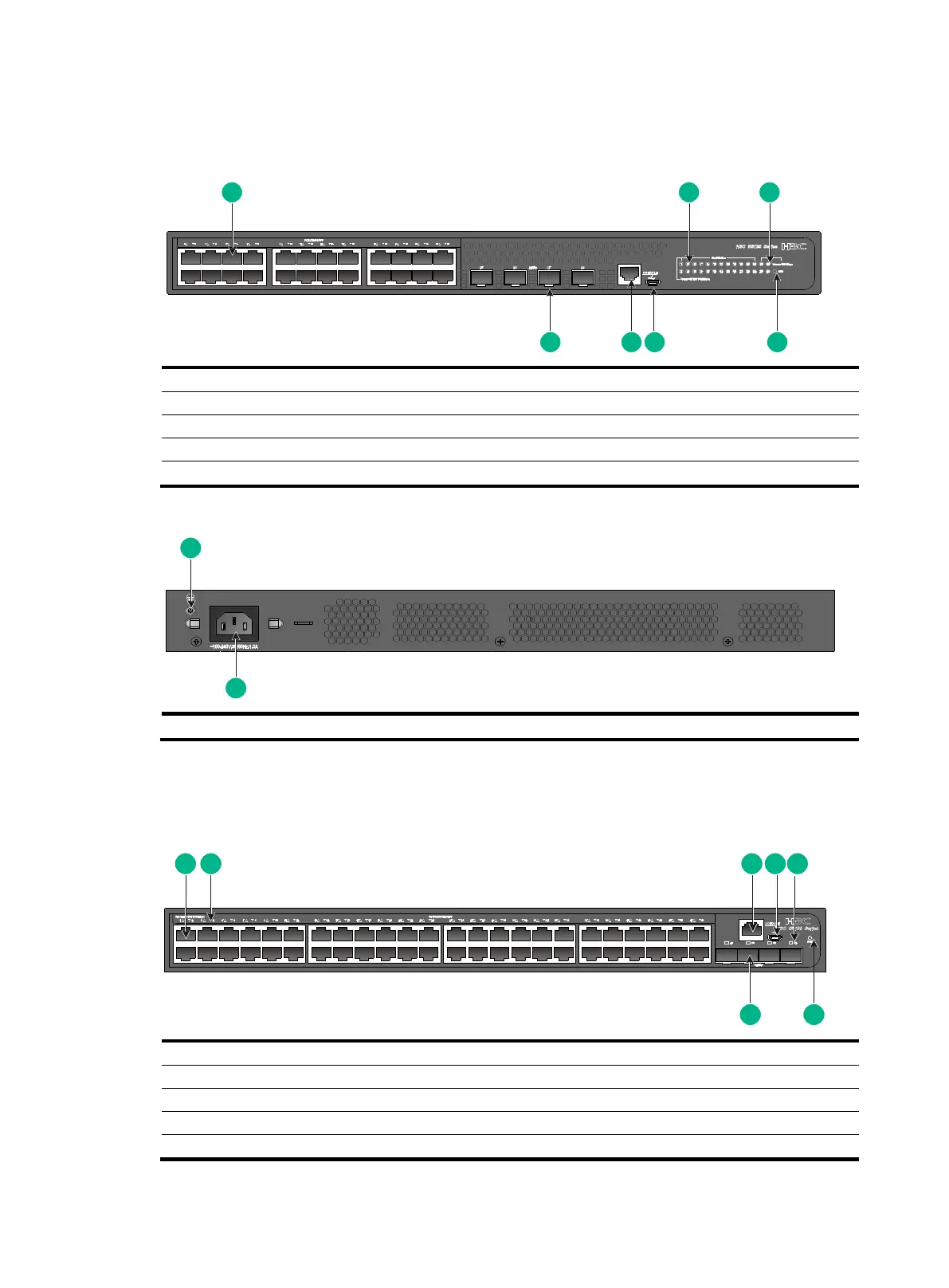

S5130S-28S-EI/S5130S-28S-EI-M
Figure 56 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP+ port LED
(4) System status LED (SYS)
(5) Micro USB console port
(6) Console port
(7) SFP+ port
Figure 57 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5130S-52S-EI/S5130S-52S-EI-M
Figure 58 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port
(4) Micro USB console port
(5) SFP+ port LED
(6) System status LED (SYS)
(7) SFP+ port
1
5
7
2
3
6
4
2
1
1
2
3
4
5
6
7
