H3C S5130S-EI series - Connecting the AC Power Cord for the Fixed AC Power Module (Method 2)

19

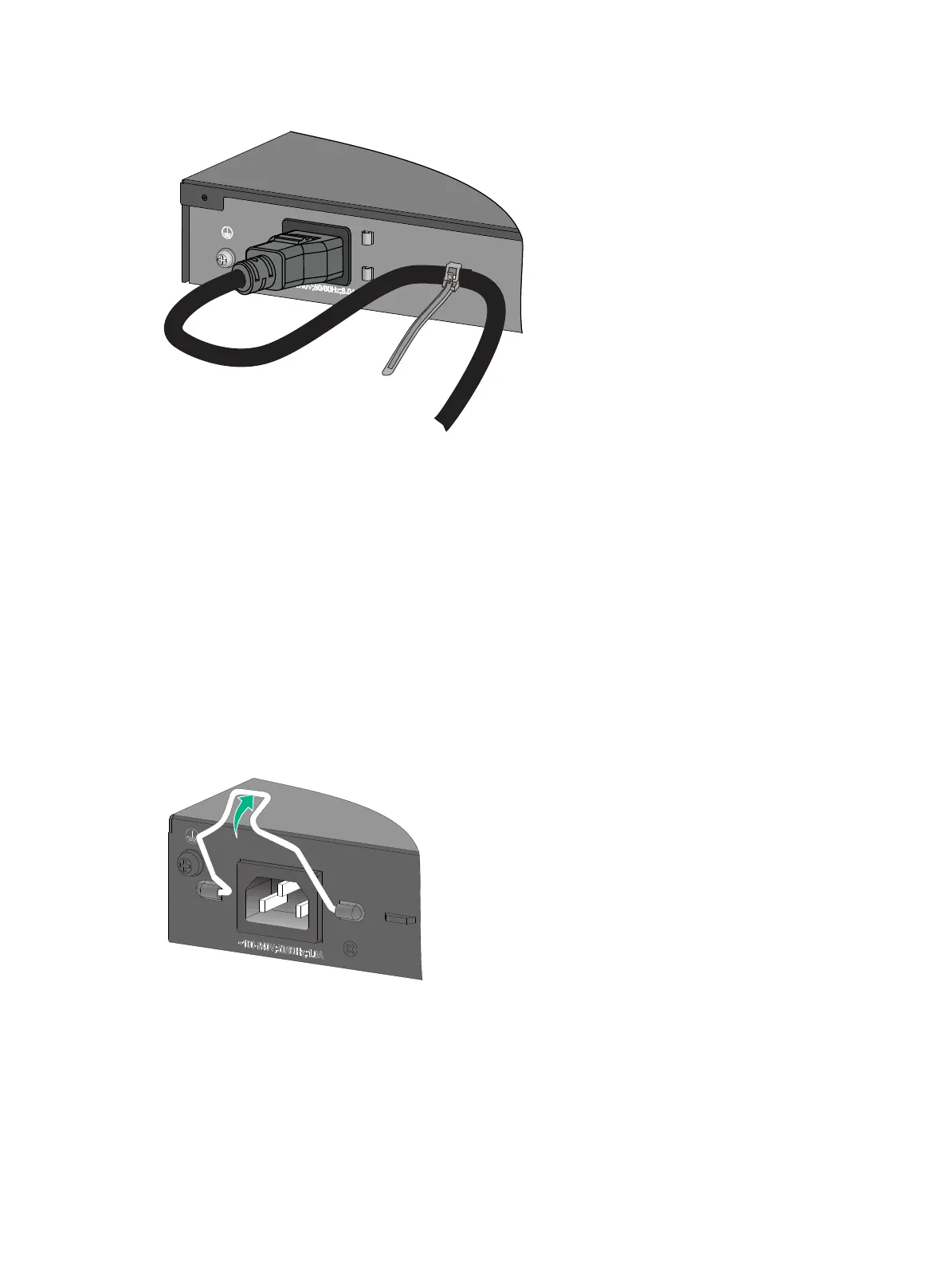

Figure 22 Securing the AC power cord for the fixed AC power module through a cable tie
Connecting the AC power cord for the fixed AC power
module (method 2)
1. Insert the two ends of the bail latch through the two holes at both sides of the AC-input power
receptacle.
2. Pivot up the bail latch, as shown in Figure 23.
3. Connect the plug of the AC power cord to the AC-input power receptacle on the switch, as
shown by callout 1 in Figure 24.
4. Pivot down the bail latch to secure the plug to the power receptacle, as shown by callout 2 in
Figure 24.
5. Connect the other end of the power cord to the power source.
Figure 23 Connecting the AC power cord for the fixed AC power module
