H3C S5130S-EI series User Manual

20

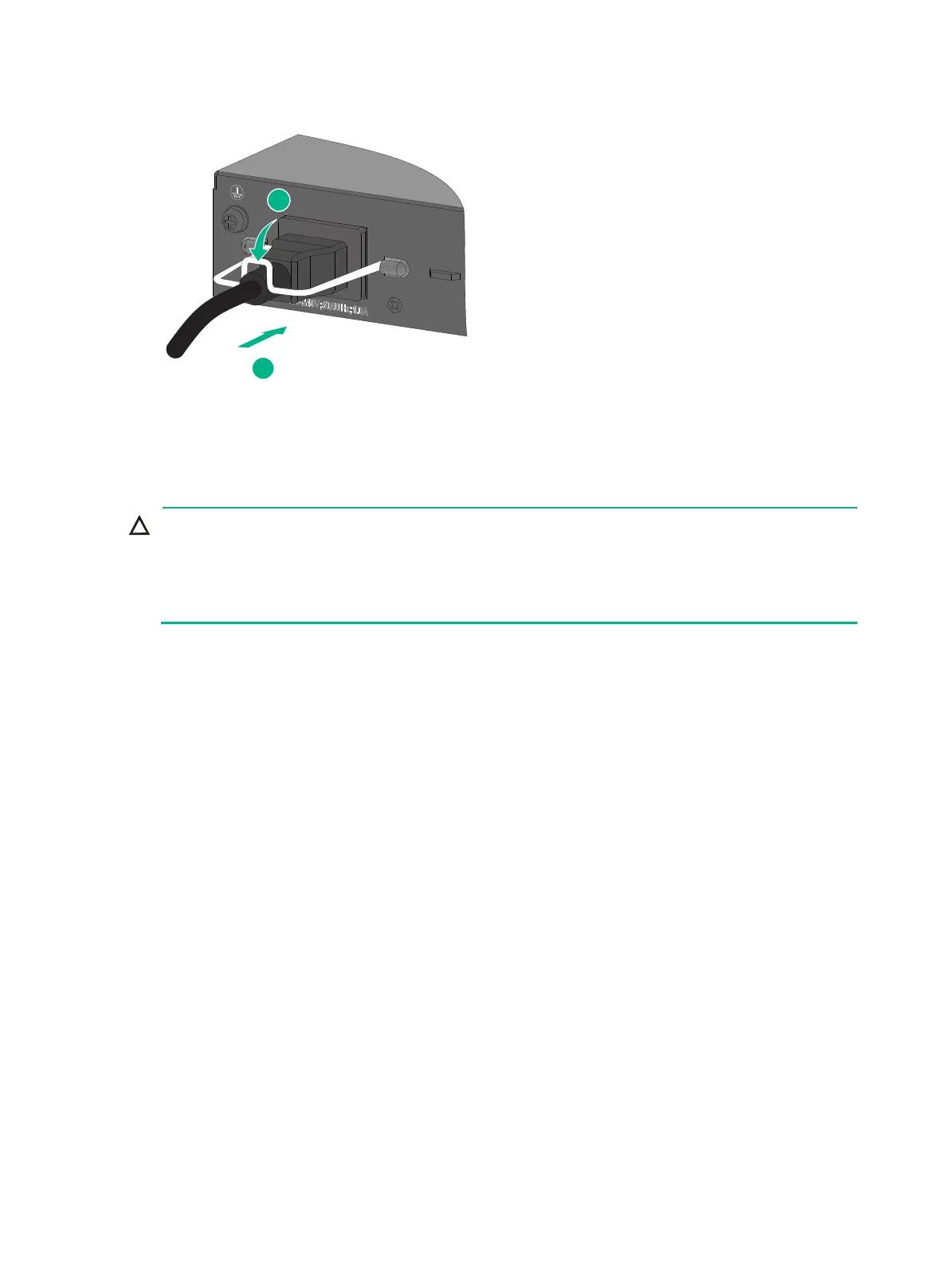

Figure 24 Securing the AC power cord for the fixed AC power module through a bail latch
Connecting the DC power cord for the fixed DC power
module (method 1)
CAUTION:
•
To connect the switch to a –48 VDC power source
, use the DC power cord provided by H3C. To
avoid connection mistakes, identify the positive (+) and negative (-) marks on the two wires
of the
DC power cord before connection.
• To connect the switch to an H3C RPS, use a power cord compatible with the RPS.
To connect the DC power cord for the fixed DC power module:
1. Correctly orient the DC power cord plug and insert the plug into the power receptacle on the
power module.
If you orient the DC power cord plug upside down, you cannot insert the plug into the power
receptacle.
2. Use a flat-head screwdriver to fasten the screws on the power cord connector, as shown in
Figure 25.
3. Connect the other end of the power cord to a –48 VDC power source or an RPS.
2
1

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
