H3C S5130S-EI series - S5130 S-28 St-Ei; S5130 S-52 St-Ei

51
S5130S-28ST-EI

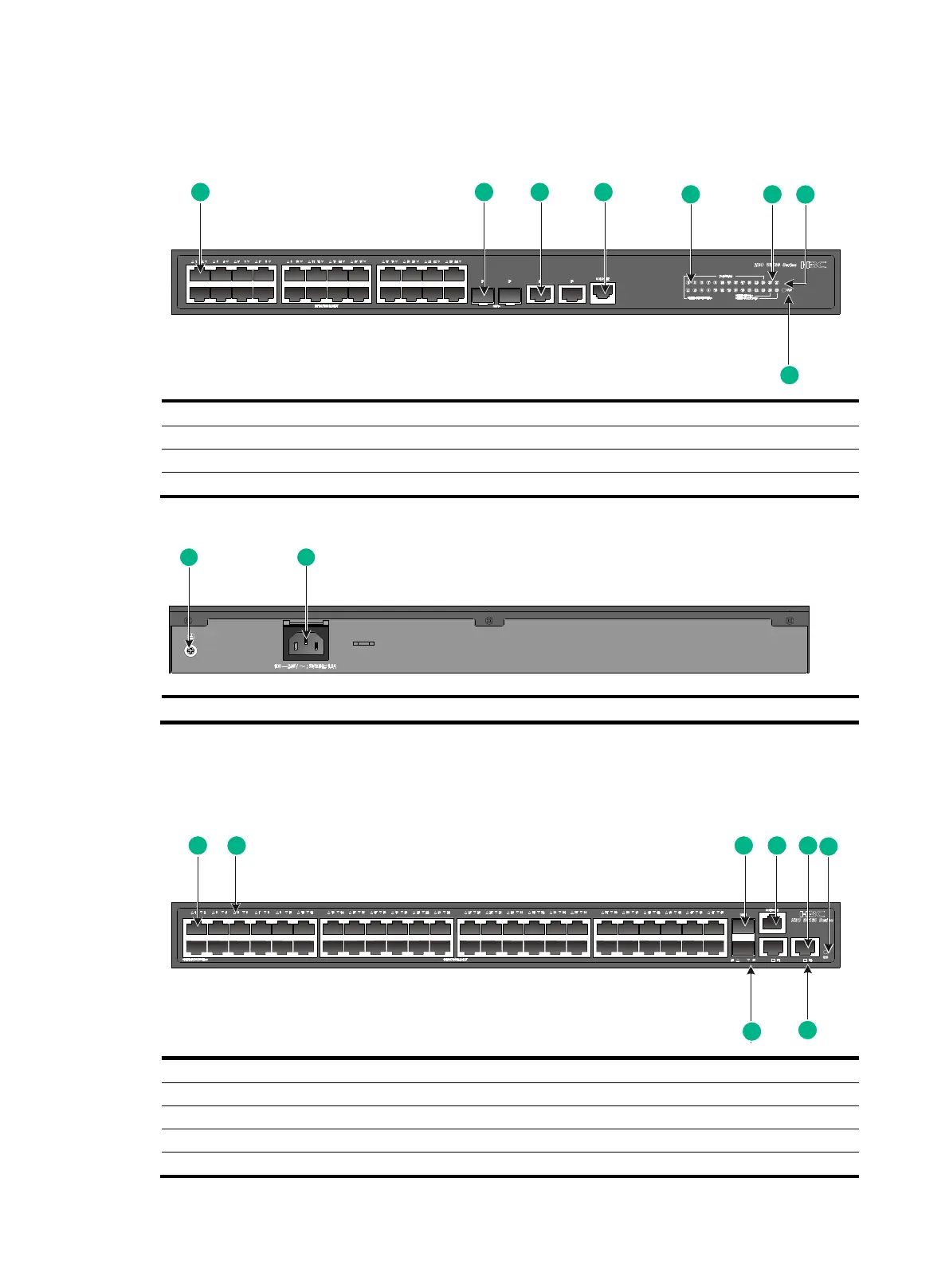

Figure 70 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) SFP+ port
(3) 10/5/2.5/1GBASE-T autosensing Ethernet port
(4) Console port
(5) 10/100/1000BASE-T autosensing Ethernet port LED
(6) SFP+ port LED
(7) 10/5/2.5/1GBASE-T autosensing Ethernet port LED
(8) System status LED (SYS)
Figure 71 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5130S-52ST-EI
Figure 72 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP+ port
(4) Console port
(5) 10/5/2.5/1GBASE-T autosensing Ethernet port
(6) System status LED (SYS)
(7) 10/5/2.5/1GBASE-T autosensing Ethernet port LED
(8) SFP+ port LED
1
2
3 4
5
6
8
7
2
1
1
2
3
4
5
8
7
6
