145
G Codes
96-8000 rev R June 2007
X
Z
Y
X
Z
Y
G98 Initial Starting Plane
Initial Starting Plane
R Plane
R Plane
Z Depth
Z Depth
G99 Rapid Plane

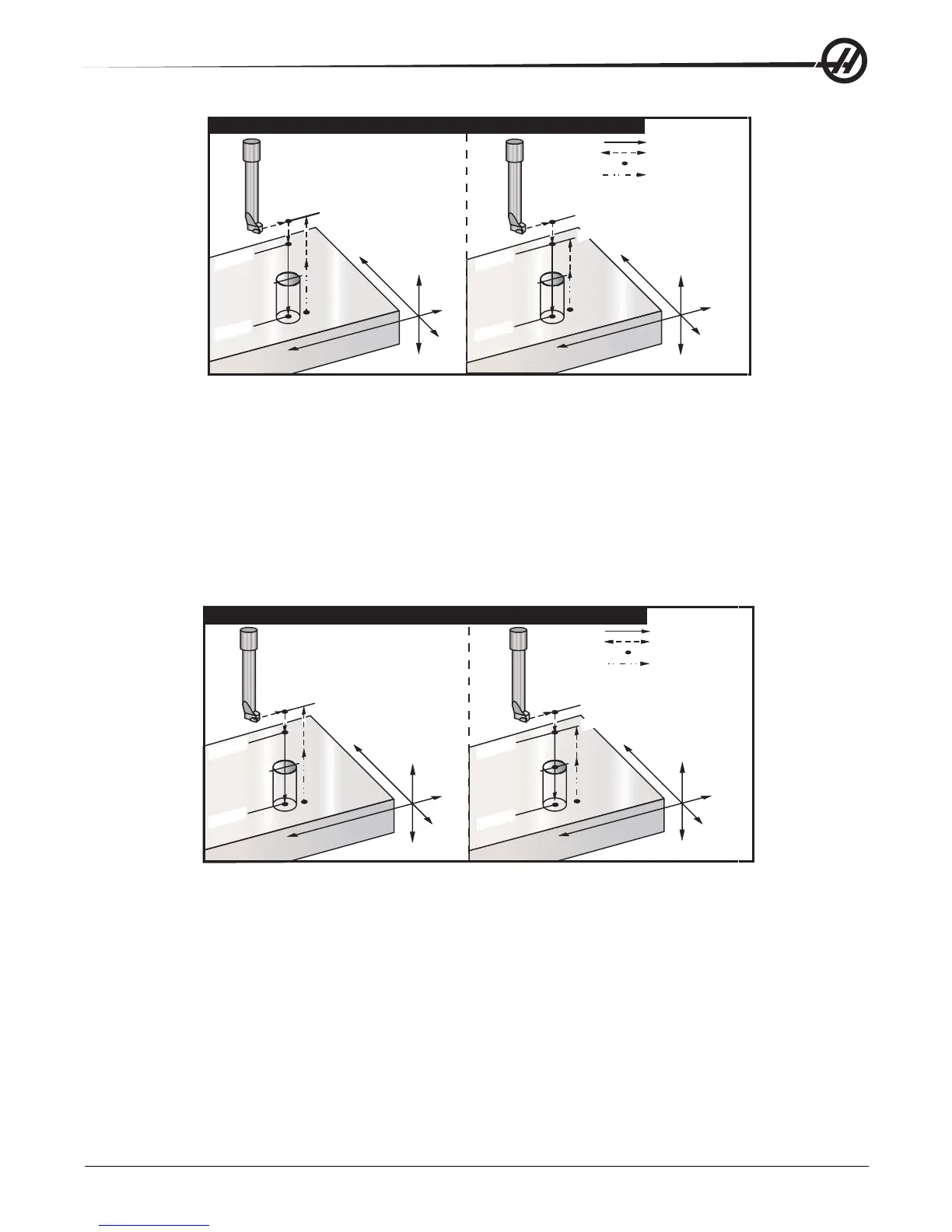

G87 Bore and Stop and Manual Retract Canned Cycle
G87 Bore and Stop and Manual Retract Canned Cycle
Feed
Rapid Move
Begin or end of stroke
Manual Jog
Feed
Rapid Move
Begin
or end of stroke
Manual Jog
G88 Bore In, Dwell, Manual Retract Canned Cycle (Group 09)
F Feedrate in inches (or mm) per minute
L Number of holes if G91 (Incremental Mode) is used
P The dwell time at the bottom of the hole
R Position of the R plane (position above the part)
X X-axis location of hole
Y Y-axis location of hole
Z Position of the Z-axis at the bottom of hole
This G code will stop once the hole is bored. At this point the tool is manually jogged out of the hole. The program
will continue when Cycle Start is pressed.
X
Z
Y
X
Z
Y
G98 Initial Starting Plane
Initial Starting Plane
R Plane
R Plane
Z Depth
Z Depth
G99 Rapid Plane
G88 Bore and Dwell and Manual Retract Canned Cycle
G88 Bore and Dwell and Manual Retract Canned Cycle
Feed
Rapid Move
Begin or end of stroke
Manual Jog
Feed
Rapid Move
Begin
or end of stroke
Manual Jog
G89 Bore In, Dwell, Bore Out Canned Cycle (Group 09)
F Feedrate in inches (or mm) per minute
L Number of holes if G91 (Incremental Mode) is used
P The dwell time at the bottom of the hole
R Position of the R plane (position above the part)
X X-axis location of holes
Y Y-axis location of holes
Z Position of the Z-axis at the bottom of hole
