G164 5-Axis Tapping Canned Cycle (Group 09)
G164 only performs floating taps. G174/184 is available for 5-axis rigid tapping.
E Specifies the distance from the start position to the bottom of the hole
F Feedrate in inches (mm) per minute
L Number of repeats
A A-axis tool starting position
B B-axis tool starting position
X X-axis tool starting position
Y Y-axis tool starting position
Z Z-axis tool starting position
S Spindle Speed

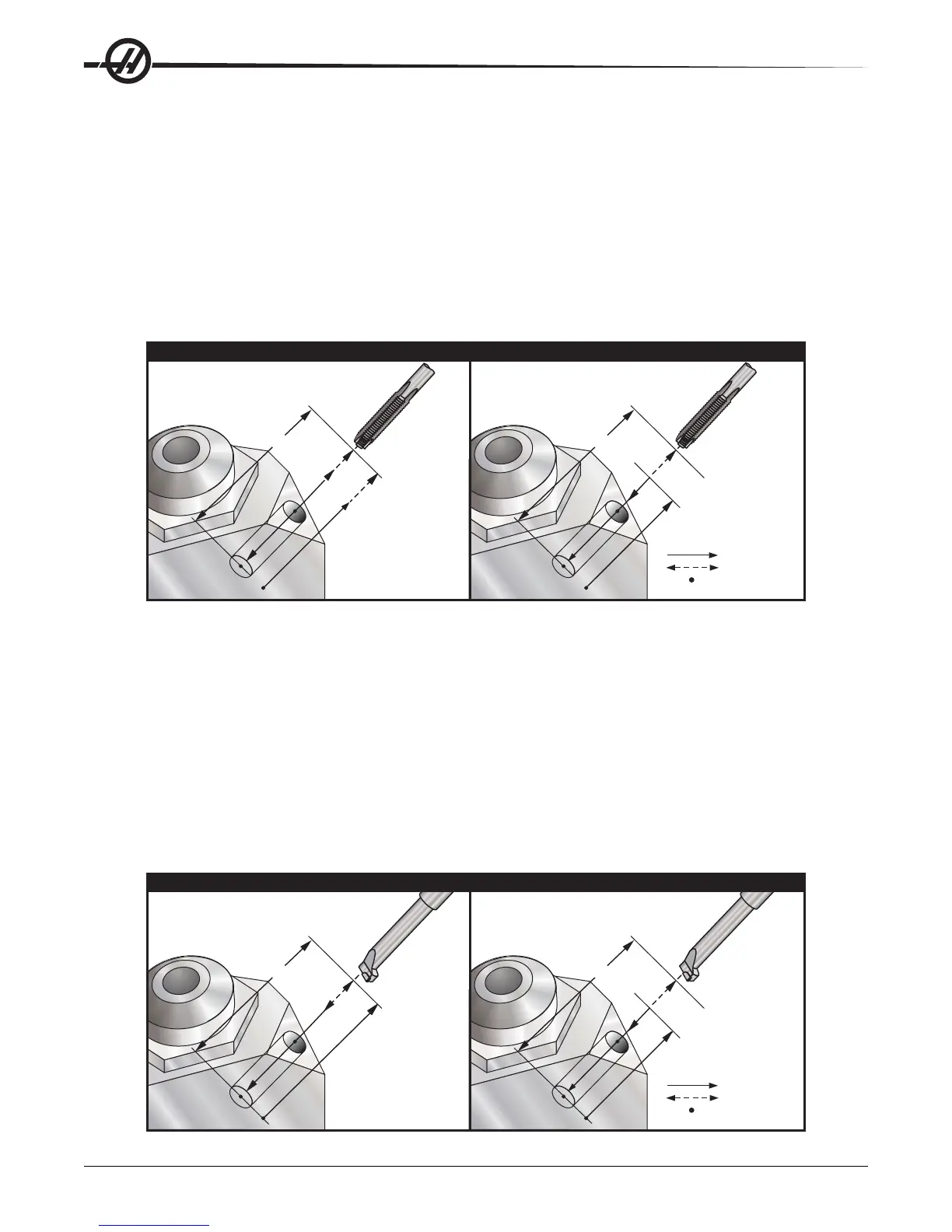

G164 5-Axis Tapping Canned Cycle
G164 5-Axis Tapping Canned Cycle
E
G98 Start
Position
G98 / G99
E
Start Position
G99 Rapid Plane
Z Axis position
between holes
Feed
Rapid Move
Begin or end
of Stroke
A specific X, Y, Z, A, B position must be programmed before the canned cycle is commanded. This position is used
as the “Initial Start position”.
You do not need to start the spindle CW before this canned cycle. The control does this automatically.
G165 5-Axis Boring Canned Cycle (Group 09)
E Specifies the distance from the start position to the bottom of the hole
F Feedrate in inches (mm) per minute
L Number of repeats
A A-axis tool starting position
B B-axis tool starting position
X X-axis tool starting position
Y Y-axis tool starting position
Z Z-axis tool starting position
G1655-Axis Boring Canned Cycle
G165 5-Axis Boring Canned Cycle
E
G98 Start
Position
G98 / G99
E
Start Position
G99 Rapid Plane
Z Axis position
between holes
Feed
Rapid Move
Begin or end
of Stroke
