175

Settings

96-8000 rev R June 2007

SETTINGS

Introduction

Settings are machine conditions that have an affect on machine operation. In general, settings allow the operator or

setup person to lock out, turn on or specify functions.

The settings are organized into pages of similar groups rather than numeric order. This puts associated settings on

the same displayed page.

Changing Settings

Press the “SETNG/GRAPH” button to enter the setting pages Use the page up/down buttons scroll through the

setting pages, use the vertical cursor keys to move to the desired setting. Or enter a setting number and press the

down arrow button to go directly to that setting.

There are two types of Settings, the first has built-in selections that can be scrolled through and then selected by

pressing Write (Use the left/right arrow keys to scroll through the selections). The second type expect to have a

value entered. There is help text at the top of the screen that advises of the type of setting.

In some cases the Emergency Stop button must be pressed in order to change a setting. The message “Servo is

On” will display as a reminder that the Emergency stop button is not pressed.

Setting List

1 Auto Power Off Timer

This setting is used to power-down the machine when it has not been used for some time. The value entered in this

setting is the number of minutes the machine will remain idle until it is powered down. The machine will not be

powered down while a program is running, and the time (number of minutes) will start back at zero anytime buttons

is pressed or the jog handle is used. The auto-off sequence gives the operator a 15-second warning before power

down, at which time pressing any button will stop the power down.

2 Power Off At M30

Powers down the machine at the end of a program (M30) if this setting is set to “On”. The machine will give the

operator a 30-second warning once an M30 is reached; pressing any button will interrupt the sequence.

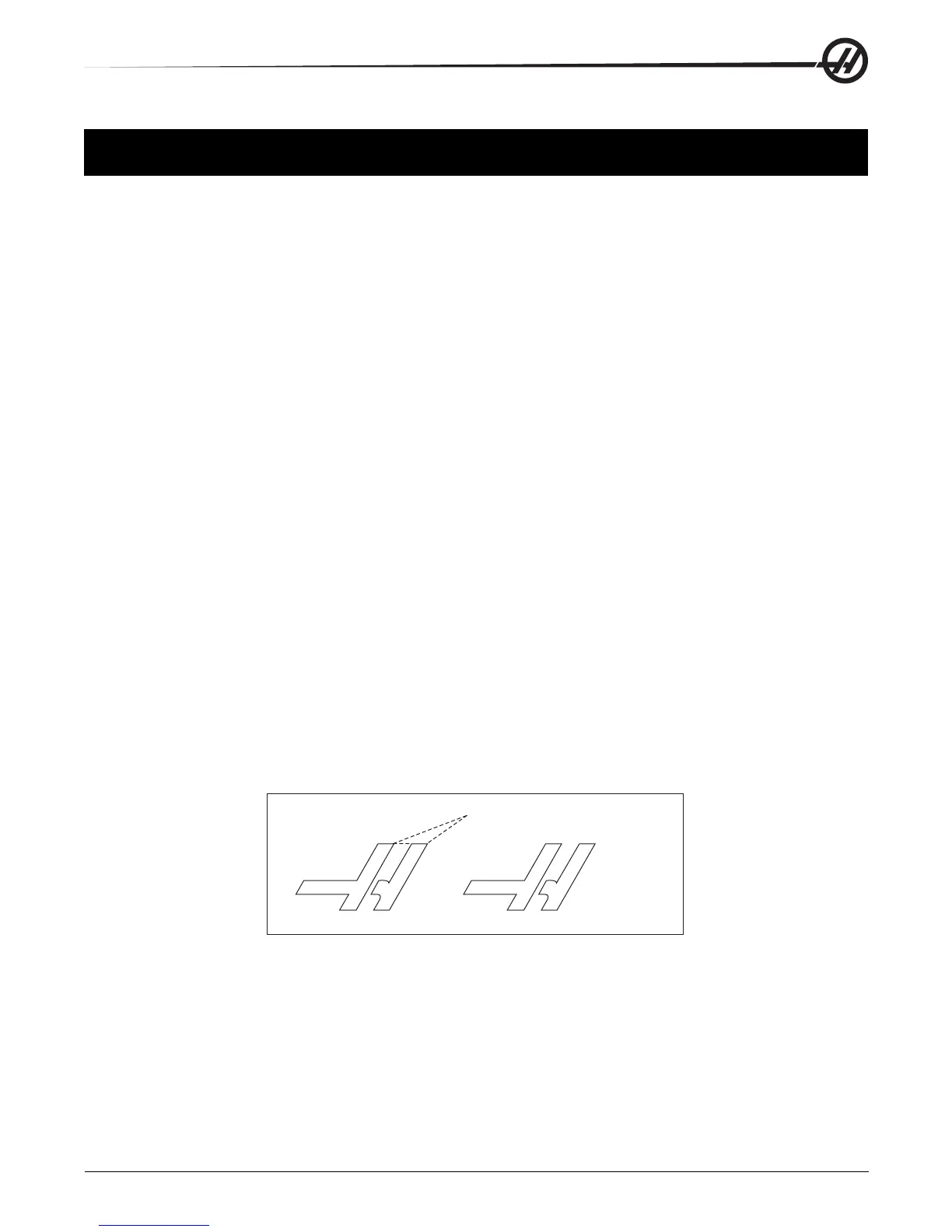

4 Graphics Rapid Path

This setting changes the way a program is viewed in the Graphics mode. When it is OFF, rapid (non-cutting tool

motions do not leave a path. When it is ON, rapid tool motions leave a dashed line on the screen.

Haas Mill User Manual
