Haas Mill User Manual

162
G Codes
96-8000 rev R June 2007

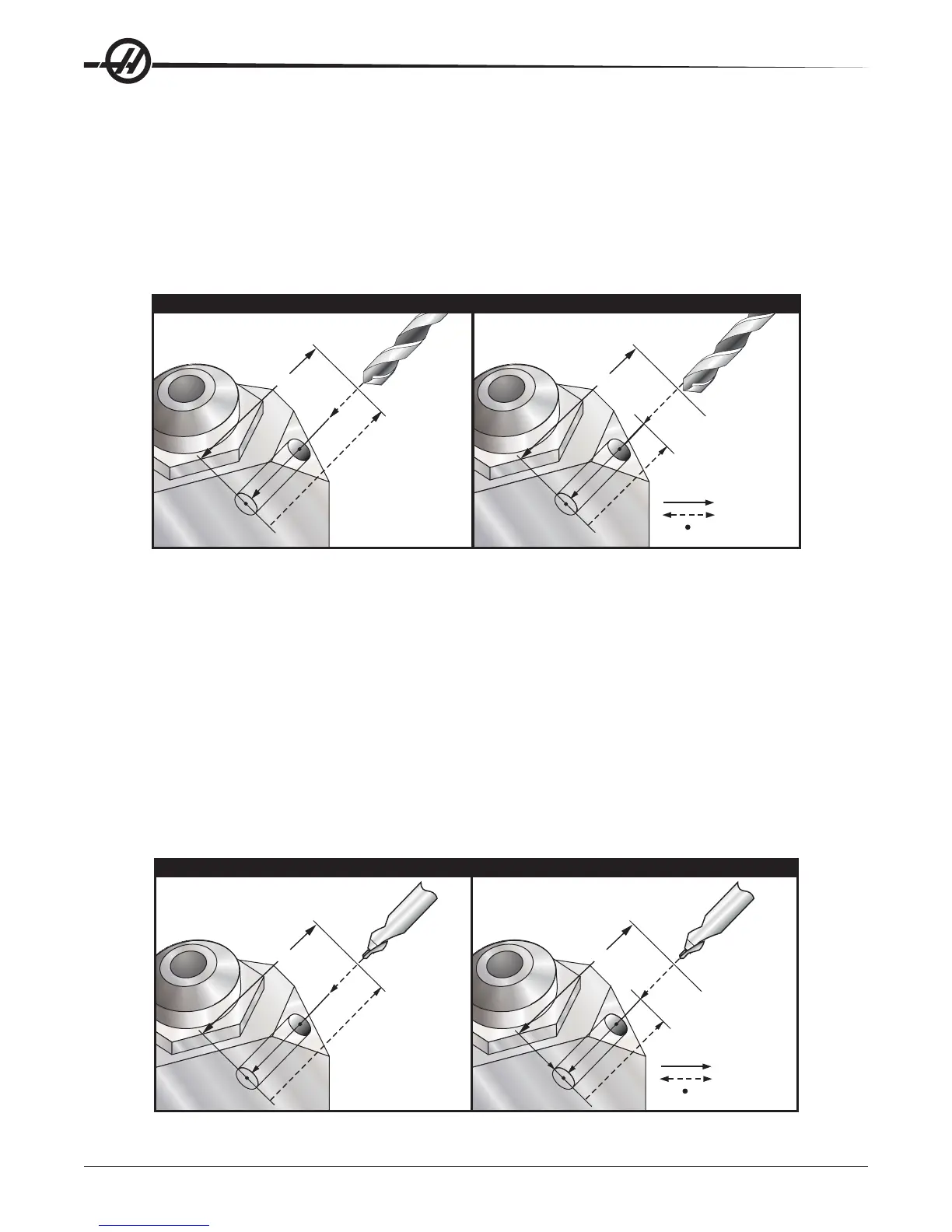

G161 5-Axis Drill Canned Cycle (Group 09)
E Specifies the distance from the start position to the bottom of the hole
F Feedrate in inches (mm) per minute
L Number of repeats
A A-axis tool starting position
B B-axis tool starting position
X X-axis tool starting position
Y Y-axis tool starting position
Z Z-axis tool starting position
E
G98 Start
Position
E
Start Position
G99 Rapid Position
G161 5-Axis Drill Canned Cycle
G161 5-Axis Drill Canned Cycle
G98 / G99
Z Axis position
between holes
Feed
Rapid Move
Begin or end
of Stroke
A specific X, Y, Z, A, B position must be programmed before the canned cycle is commanded. This position is used
as the “Initial Start position”.
G162 5-Axis Spot Drill Canned Cycle (Group 09)
E Specifies the distance from the start position to the bottom of the hole
F Feedrate in inches (mm) per minute
L Number of repeats
P The dwell time at the bottom of the hole
A A-axis tool starting position
B B-axis tool starting position
X X-axis tool starting position
Y Y-axis tool starting position
Z Z-axis tool starting position
A specific X, Y, Z, A, B position must be programmed before the canned cycle is commanded. This position is used
as the “Initial Start position”.
E
G98 Start
Position
E
Start Position
G99 Rapid Position
G162 5-Axis Spot Drill Canned Cycle
G162 5-Axis Spot Drill Canned Cycle
G98 / G99
Z Axis position
between holes
Feed
Rapid Move
Begin or end
of Stroke

Haas Mill Specifications

General

Travels X Axis	Varies by model
Travels Y Axis	Varies by model
Travels Z Axis	Varies by model
Spindle Speed	Varies by model
Spindle Motor	Varies by model
Table Size	Varies by model
Rapid Traverse Rates	Varies by model
Tool Capacity	Varies by model
Max Cutting Rate	Varies by model
Spindle Taper	Varies by model
