Haas Mill User Manual

165
G Codes
96-8000 rev R June 2007
A specific X, Y, Z, A, B position must be programmed before the canned cycle is commanded. This position is used
as the “Initial Start position”.
G166 5-Axis Bore and Stop Canned Cycle (Group 09)
E Specifies the distance from the start position to the bottom of the hole
F Feedrate in inches (mm) per minute
L Number of repeats
A A-axis tool starting position
B B-axis tool starting position
X X-axis tool starting position
Y Y-axis tool starting position
Z Z-axis tool starting position

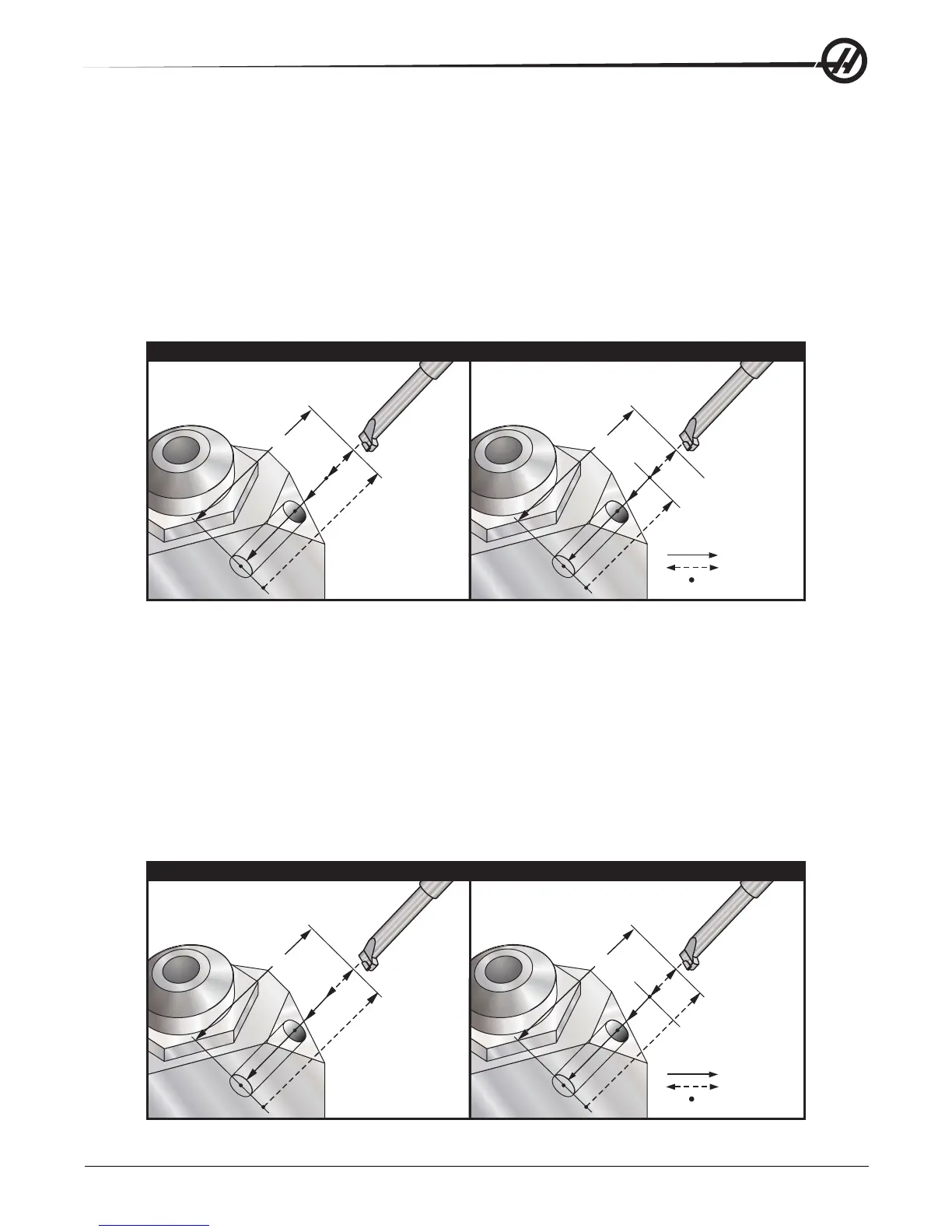

G166 5-Axis Bore Stop Canned Cycle
G166 5-Axis Bore Stop Canned Cycle
E
G98 Start
Position
G98 / G99
E
Start Position
G99 Rapid Plane
Z Axis position
between holes
Feed
Rapid Move
Begin or end
of Stroke
A specific X, Y, Z, A, B position must be programmed before the canned cycle is commanded. This position is used
as the “Initial Start position”.
G169 5-Axis Bore and Dwell Canned Cycle (Group 09)
E Specifies the distance from the start position to the bottom of the hole
F Feedrate in inches (mm) per minute
L Number of repeats
P The dwell time at the bottom of the hole
A A-axis tool starting position
B B-axis tool starting position
X X-axis tool starting position
Y Y-axis tool starting position
Z Z-axis tool starting position
G169 5-Axis Bore and Dwell Canned Cycle
G169 5-Axis Bore and Dwell Canned Cycle
E
G98 Start
Position
G98 / G99
E
Start Position
G99 Rapid Plane
Z Axis position
between holes
Feed
Rapid Move
Begin or end
of Stroke

Haas Mill Specifications

General

Travels X Axis	Varies by model
Travels Y Axis	Varies by model
Travels Z Axis	Varies by model
Spindle Speed	Varies by model
Spindle Motor	Varies by model
Table Size	Varies by model
Rapid Traverse Rates	Varies by model
Tool Capacity	Varies by model
Max Cutting Rate	Varies by model
Spindle Taper	Varies by model
