Page 120
IR Cell Replacement
UVTOCMaintenance.fm
Section 7
4. Apply light pressure on the latch. If it is adjusted correctly, the latch will
“click” into place and hold. Do not force the thumb latch. A properly
adjusted latch is critical for alignment of the cell and mirror assembly.
See Figure 46 on page 121.
5. If necessary, adjust the piston length and repeat step 4.
Refer to Figure 44.
6. When the pressure is satisfactory, hold the piston with a ¼–inch open-end
wrench and tighten the retaining nut with a
9
/32–inch open-end wrench.
7. Restore power and finalize the procedure with the pressure/leak test.
See section 7.7 on page 119.

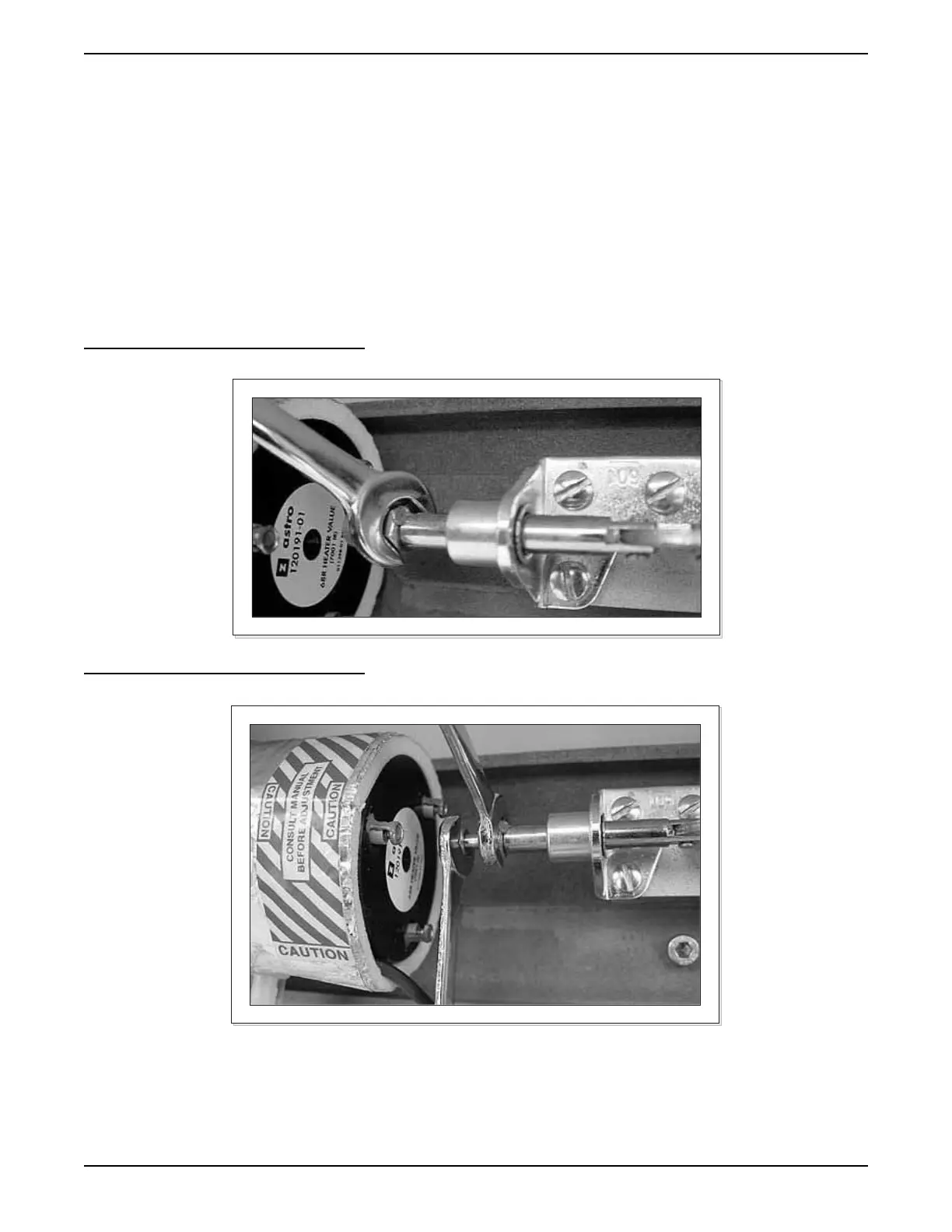

Figure 44 Adjusting the Piston Length
Figure 45 Securing the Piston
