Analyzer Pump Configurations
UVTOC_PumpConfiguration.fm
Appendix B

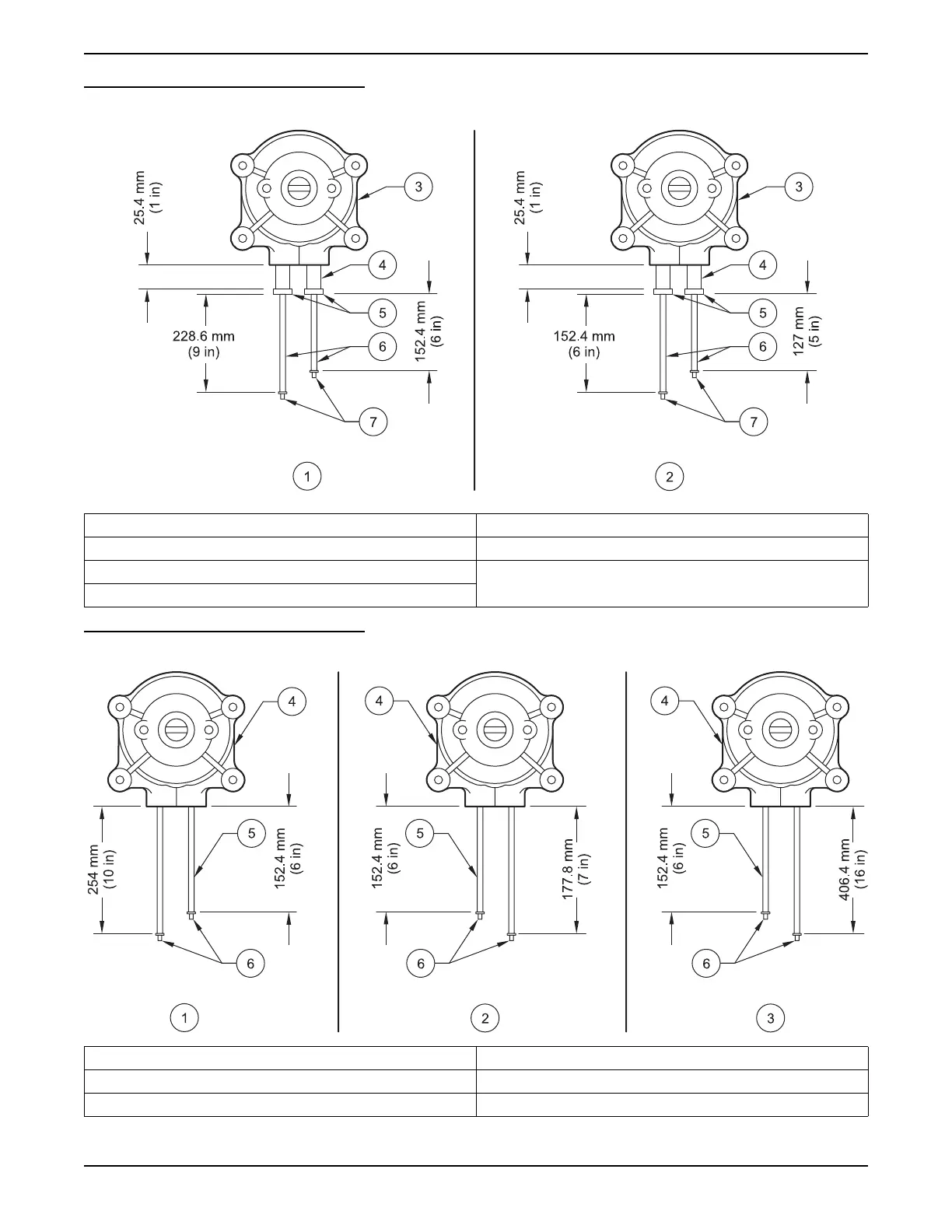

Figure 61 Pump Kit 200119
Figure 62 Pump Kit 200120
200119
1. Instrument Configuration, Left Side 5.
1
/8 x
3
/16 in. Barb (2x) (Cat. No. 014038)
2. Instrument Configuration, Right Side 6. #14 Tubing (Cat. No. 026044)
3. #15 Head (Cat. No. 024507) 7. 0.129 in. Barb (2x) (Cat. No. 013828)
4. #15 Tubing (Cat. No. 026045)
200120
1. Instrument Configuration, Left Side 4. #16 Head (Cat. No. 024508)
2. Instrument Configuration, Right Side 5. #16 Tubing (Cat. No. 026046)
3. Instrument Configuration, Sparger Waste, Right Side 6. 0.164 in. Barb (2x) (Cat. No. 013827)
