UVTOC_PumpConfiguration.fm Analyzer Pump Configurations

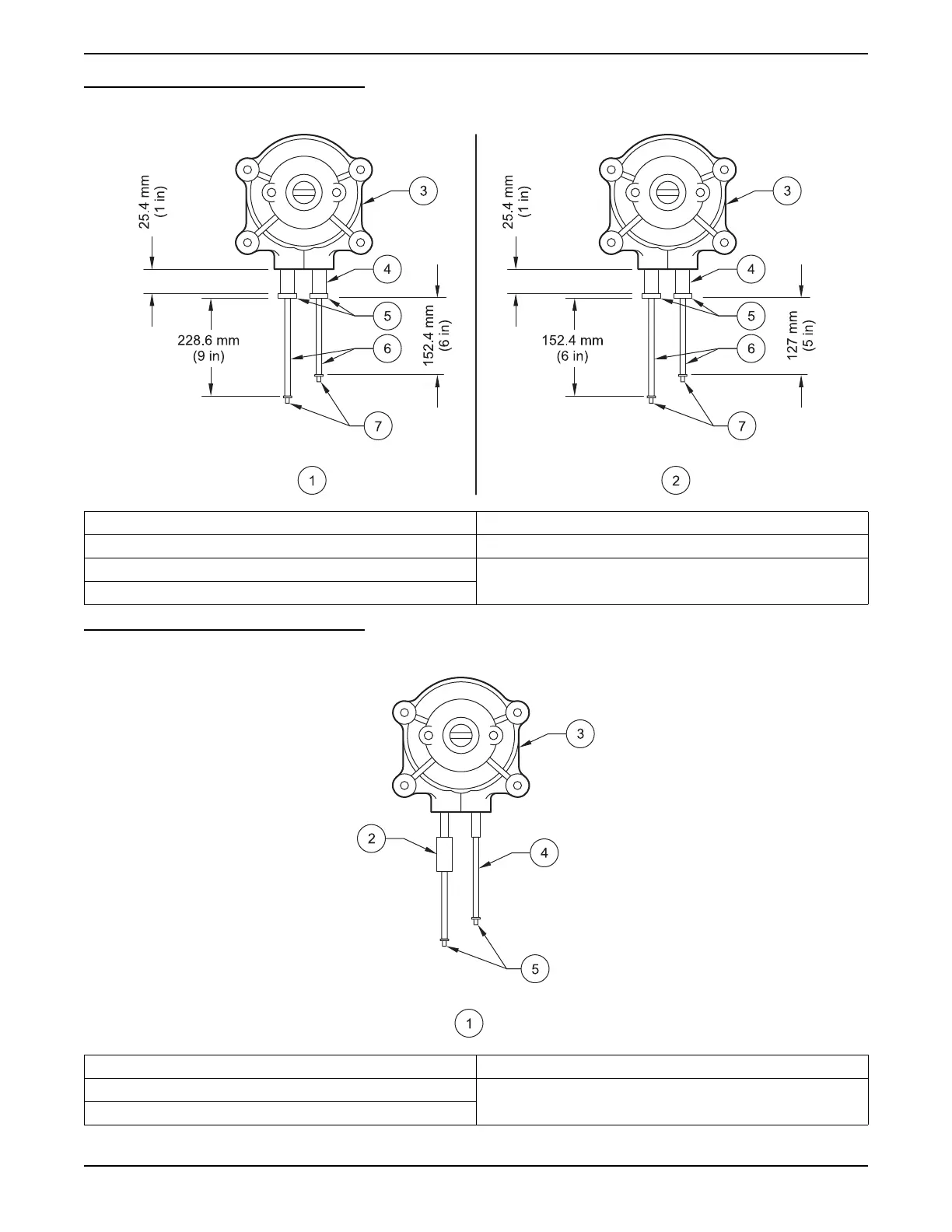

Figure 63 Pump Kit 200138
Figure 64 Pump Kit 200139
200138
1. Instrument Configuration, Left Side 5.
1
/8 x ¼ in. Barb (2x) (Cat. No. 013831)
2. Instrument Configuration, Right Side 6. #14 Tubing (Cat. No. 026044)
3. #24 Head (Cat. No. 024538) 7. 0.129 in. Barb (2x) (Cat. No. 013828)
4. #24 Tubing (Cat. No. 026071)
200139
1. Instrument Configuration, Left Side 4. Tube in Tube (Cat. No. 120240-02)
2. Retainer 5. 0.08 in. Barb (2x) (Cat. No. 013830H)
3. #14 Head (Cat. No. 024506)
