Analyzer Pump Configurations
UVTOC_PumpConfiguration.fm
Appendix B

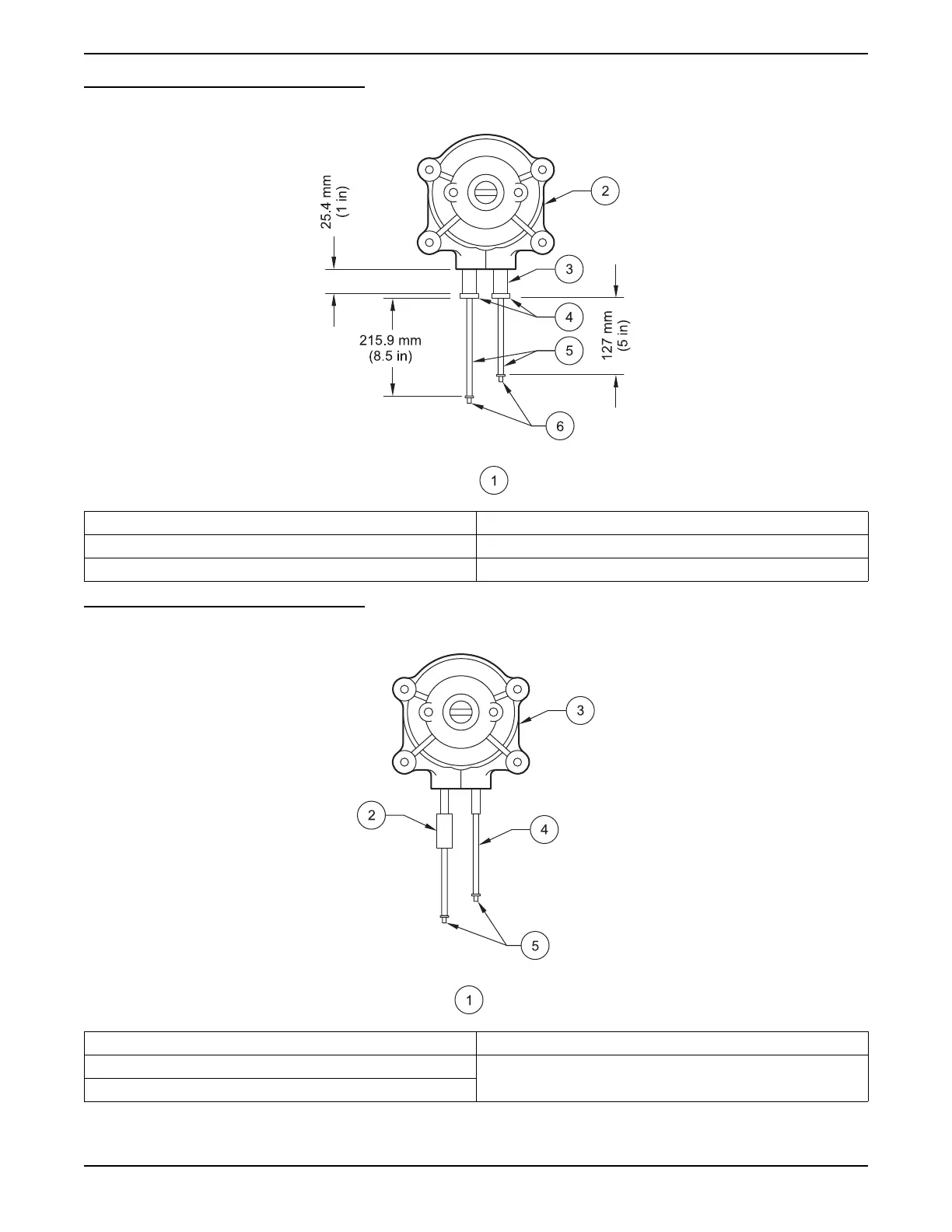

Figure 65 Pump Kit 200140
Figure 66 Pump Kit 200141
200140
1. Instrument Configuration, Left Side 4.
1
/8 x ¼ in. Barb (2x) (Cat. No. 013831)
2. #24 Head (Cat. No. 024538) 5. #14 Tubing (Cat. No. 026044)
3. #24 Tubing (Cat. No. 026071) 6. 0.129 in. Barb (2x) (Cat. No. 013828)
200141
1. Instrument Configuration, Right Side 4. Tube in Tube (Cat. No. 120240-01)
2. Retainer 5. 0.08 in. Barb (2x) (Cat. No. 013830H)
3. #14 Head (Cat. No. 024506)
