UVTOC_PumpConfiguration.fm Analyzer Pump Configurations

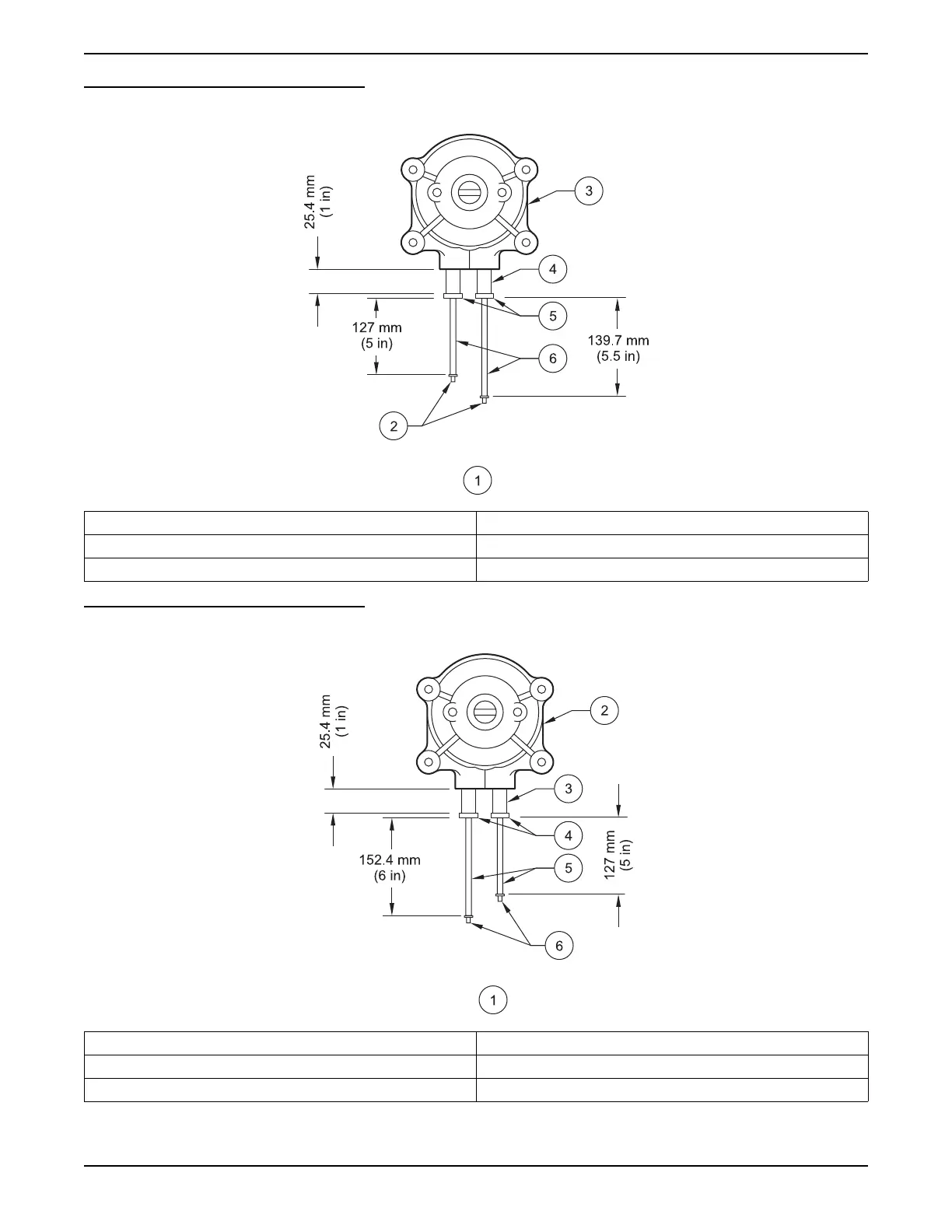

Figure 67 Pump Kit 200142
Figure 68 Pump Kit 5414700
200142
1. Instrument Configuration, Right Side 4. #15 Tubing (Cat. No. 026045)
2. 0.129 in. Barb (2x) (Cat. No. 013828) 5.
1
/8 x
3
/16 in. Barb (2x) (Cat. No. 014038)
3. #15 Head (Cat. No. 024507) 6. #14 Tubing (Cat. No. 026044)
5414700
1. Instrument Configuration, Right Side 4.
1
/16 x
1
/8 in. Barb (2x) (Cat. No. 5410600)
2. #16 Head (Cat. No. 024508) 5. #14 Tubing (Cat. No. 026044)
3. #16 Tubing (Cat. No. 026046) 6. 0.129 in. Barb (2x) (Cat. No. 013828)
