Page 158
Analyzer Pump Configurations
UVTOC_PumpConfiguration.fm
Appendix B

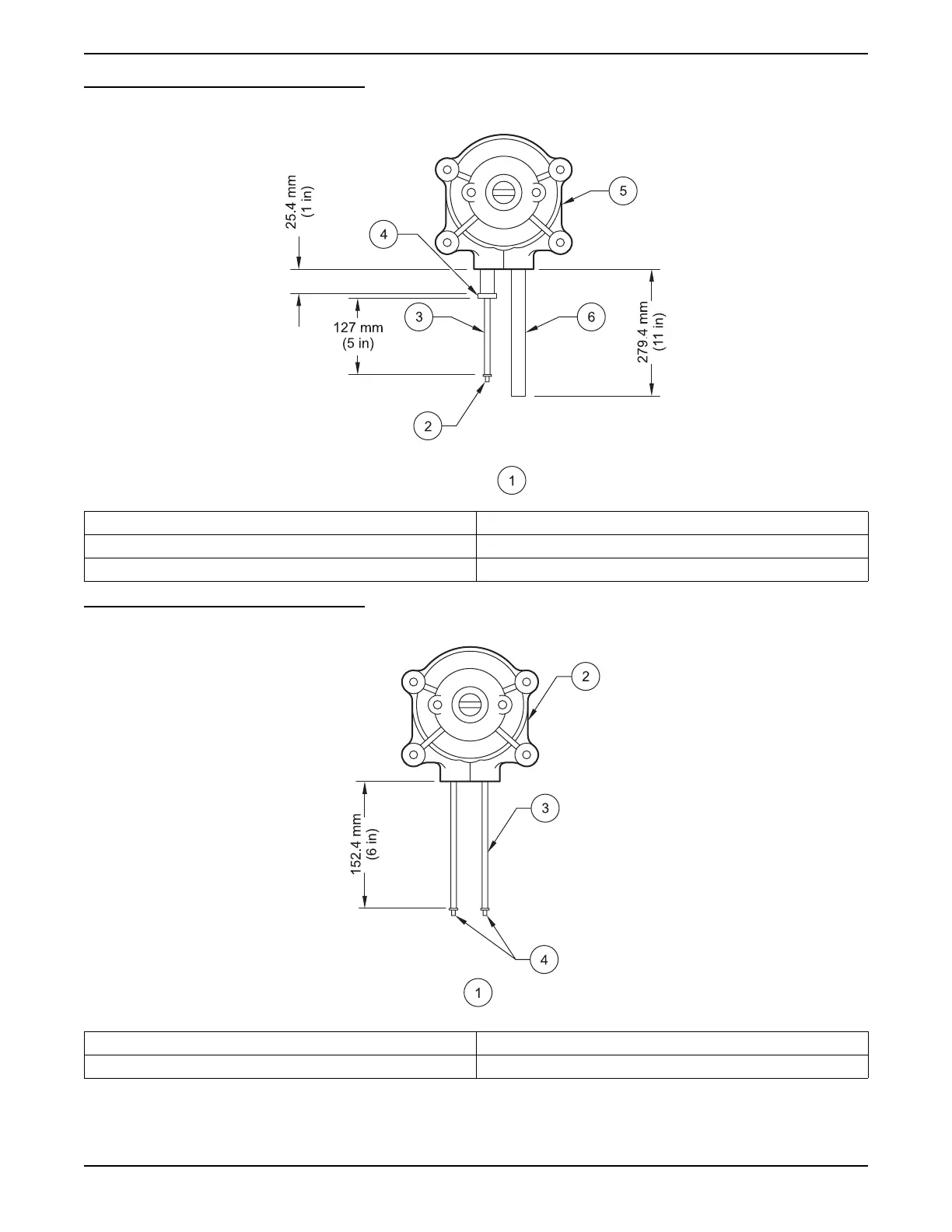

Figure 69 Pump Kit 5786700
Figure 70 Pump Kit 5787000
5789700
1. Instrument Right Side Configuration 4.
1
/8 x ¼ in. Barb (Cat. No. 013831)
2. 0.129 in. Barb (Cat. No. 013828) 5. #24 Head (Cat. No. 024538)
3. #14 Tubing (Cat. No. 026044) 6. #24 Tubing (Cat. No. 026071)
5787000
1. Instrument Configuration, Right Side 3. 0.160 Tubing (Cat. No. 5742600)
2. #13 Head (Cat. No. 024505) 4. 0.102 in. Barb (2x) (Cat. No. 013829)
