5-20 888-2463-001 3/6/08
WARNING: Disconnect primary power prior to servicing.
Diamond Series™
Section 5 Maintenance and Alignments
voltage is OK but does not read 100%, go to STEP 8. If not, continue
with the next step.
STEP 7 If necessary adjust the trim pot for 4 VDC, as read on the GUI screen. To
access the trim pots, remove the 6 cap nuts holding the cover plate. Do
not remove the plate just underneath which has the trim pot adjustment
holes. See Figure 5-7.
STEP 8 Once the detector voltage reads 4V, it should also read
100%. If not select the detector button below the voltage
reading and use the increase/decrease and Fast/Slow buttons
at the bottom of the screen to set that detector to 100%.
STEP 9 Press “Save Data”. You must press this button after each detector is set.
If you select another detector before saving it will lose the setting and
default back to what it was before adjustment.

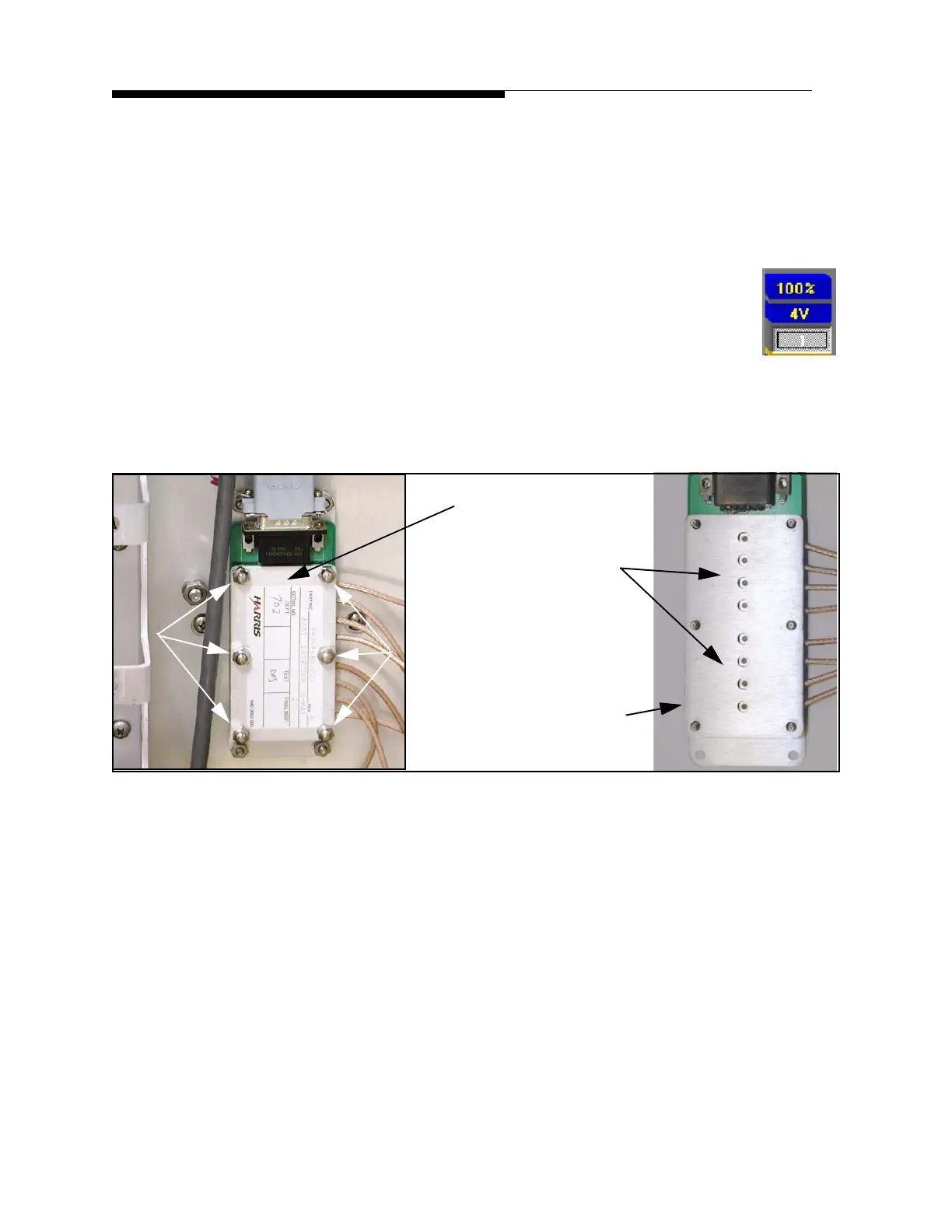

Figure 5-7 New 8 way Detector with Top Cover Removed
Detector trim
pots exposed.
NOTE:
Detector must be
adjusted with this
cover in place.
Cap
Nuts
Remove Top Cover
