measured = actual course of curve?
If you record too few measurement points, the defined windows or envelope
curve may not be analyzed as expected.

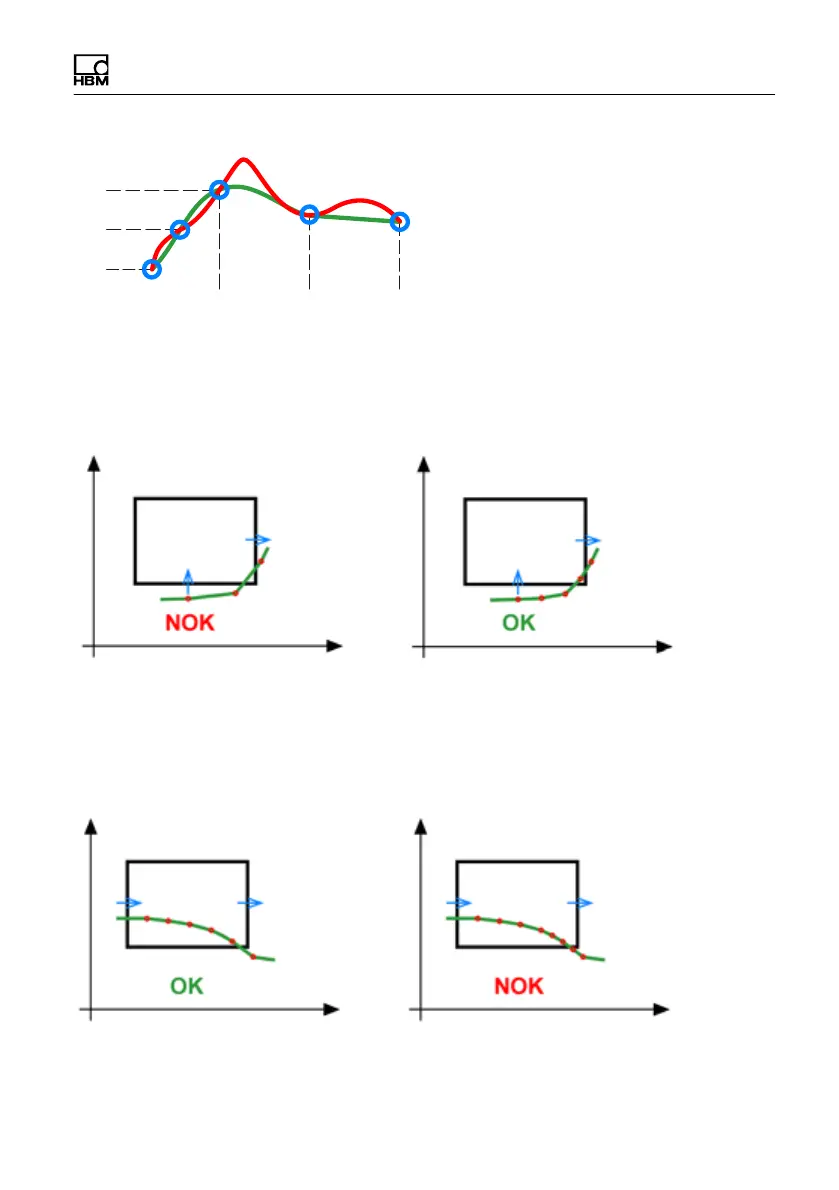

Examples of too few measurement points ( x or y too large)
The graph on the left implies that the result is OK. However, the process is
rated as NOK: As there are no measurement points within the window, there is
no entry or exit and the result is NOK. Increase the number of measured val
ues by reducing x and/or y. If at least one measured value then lies within
the window, the result of analysis is OK (right-hand graph).
