Switch test (EASYswitch)
MP85A A0293_06_E00_03 HBM: public 85
9 Switch test (EASYswitch)
The switch test and haptic test features are only available in EASYswitch ver
sions MP85A‐S, MP85ADP-S and MP85ADP-PN-S (marked with -S for switch
test).
9.1 Switch test
In the EASYswitch versions, all the switching characteristics are recorded and
evaluated based on specific features such as actuating force, release force,
differential force and differential travel.
In addition to these mechanical parameters, the electrical switching point can
also be recorded. To do this, a switch test window is positioned on the main
points.

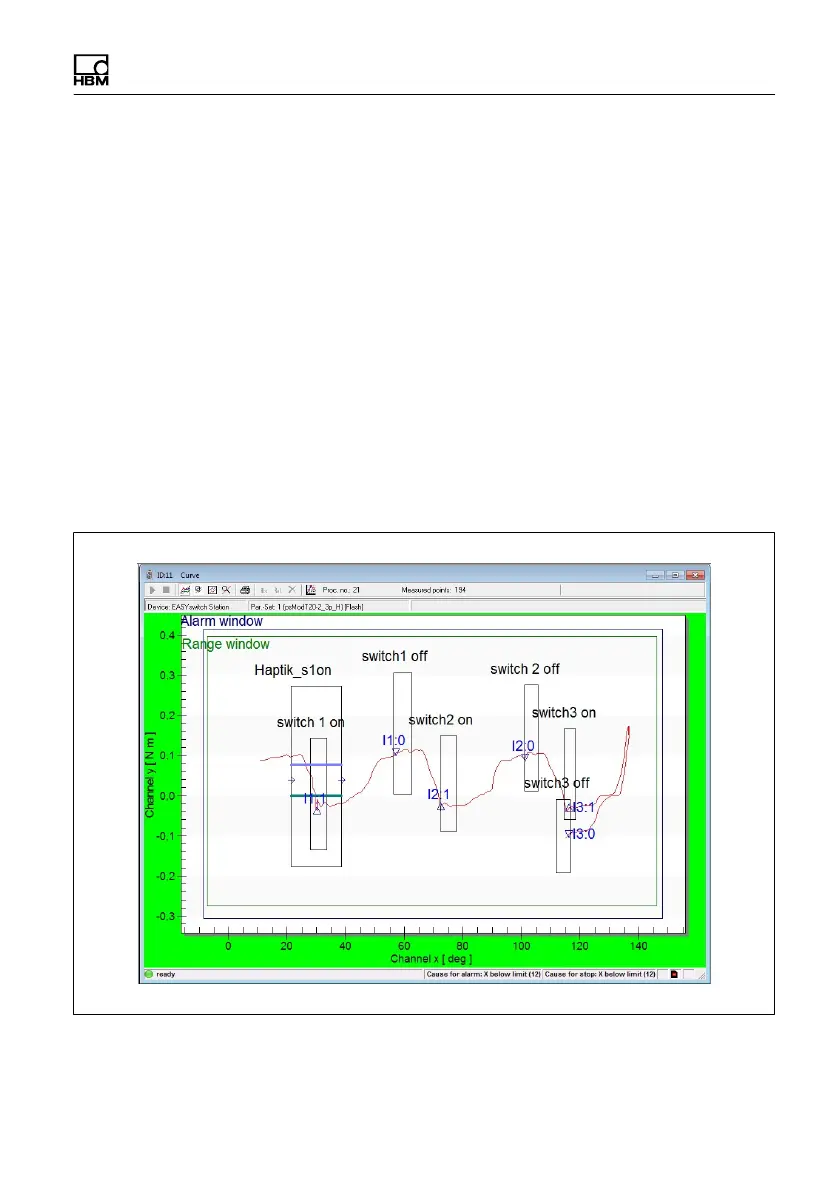

Fig. 9.1 Switch test
