5.7 Interfaces
Use the PME Assistant to set and parameterize the device via the Ethernet or
CAN interface. In automated systems, the devices are integrated in the
machine control system via fieldbus interfaces.
5.7.1 Ethernet interface
An RJ45 socket for the Ethernet connection is located on the underside of the
MP85A process controller as standard.
RJ45

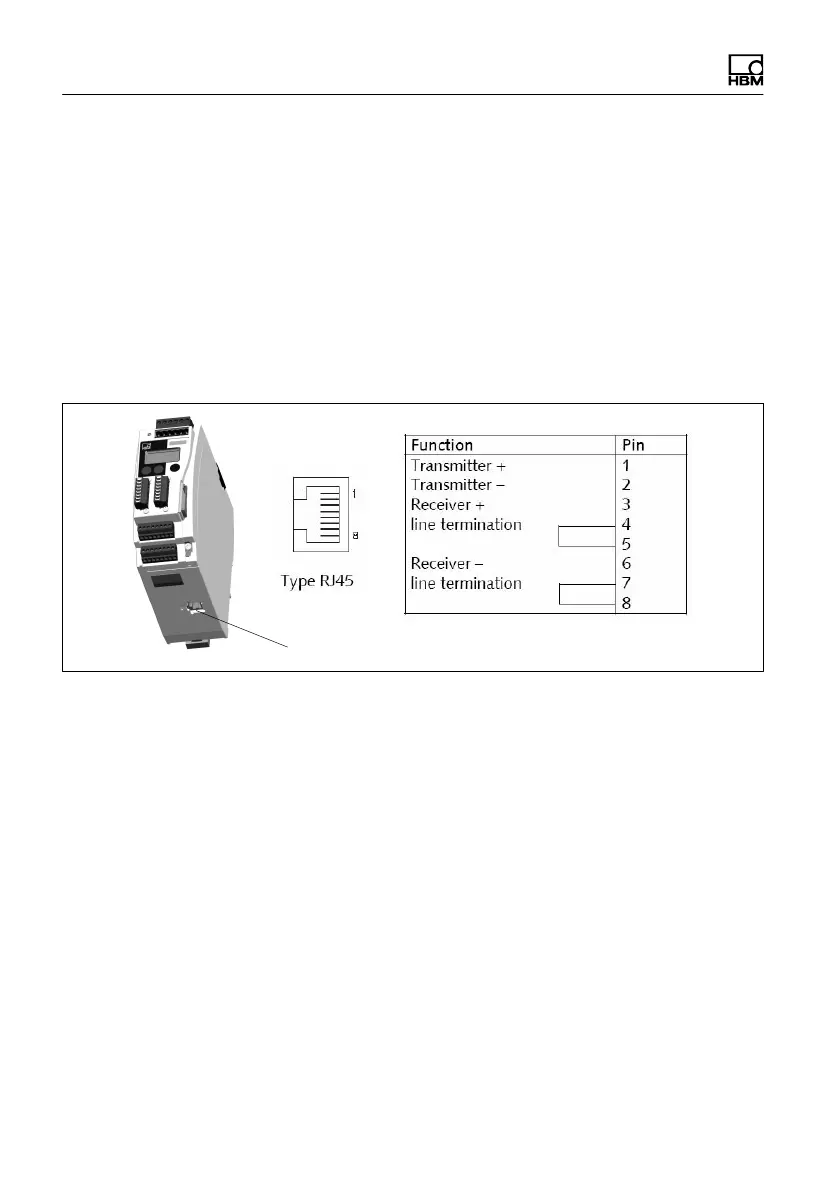

Fig. 5.12 Ethernet connection
The device can therefore also be integrated in an Ethernet network. It supports
speeds of 10 Mbit/s and 100 Mbit/s, as well as half and full duplex mode. The
transmission mode and speed are automatically adapted to the existing
network.
