fore OK. Increase the number of measured values, e.g. by reducing ny (right-
hand graph). The exit at the lower edge is then recognized, because the
y-value is already below the lower edge of the window before the right edge of
the window.
8.2 Classification
Classifying x or y
Measured quantities on channel x, such as length, thickness and diameter, or
on channel y, such as force, weight, torque, etc., can be divided into 5 groups
per window. This way, you can sort springs, for example, automatically by
spring rate.
y
max
y
min

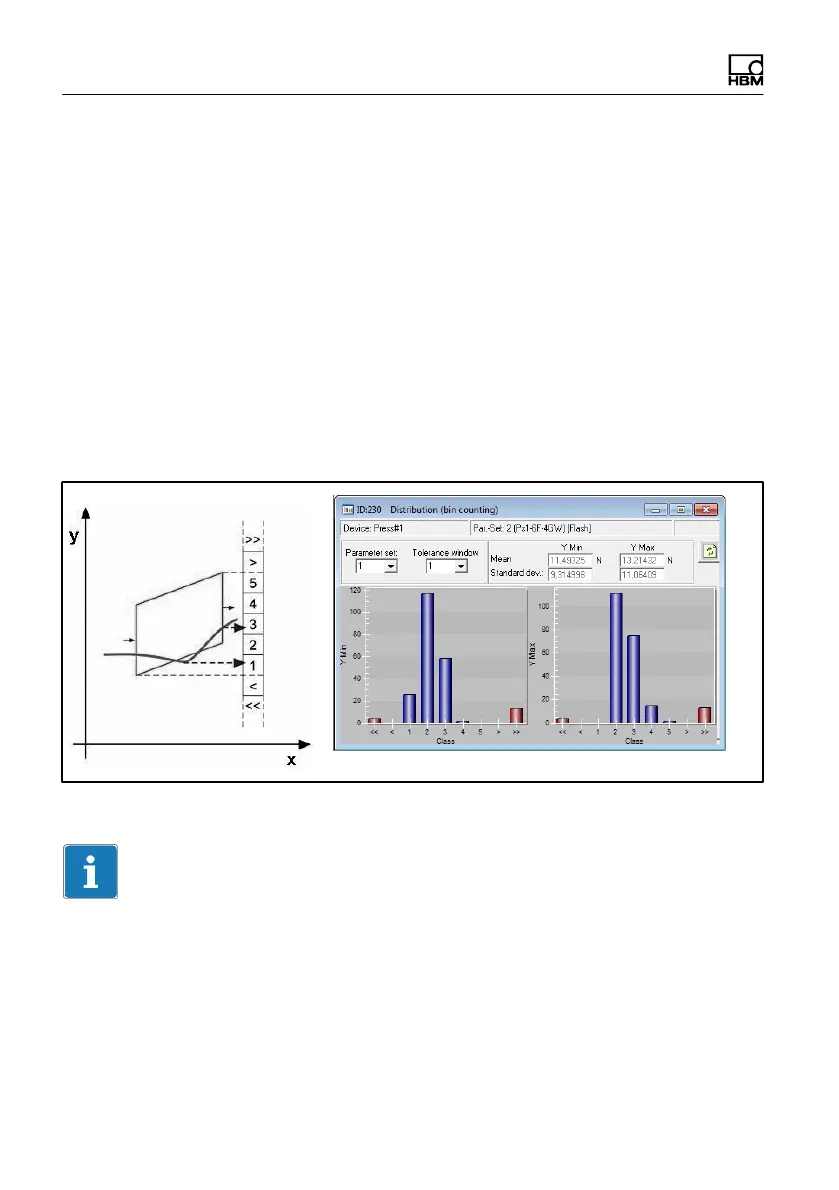

Fig. 8.5 Classifying the measured values of a tolerance window
Important
Statistics and classification can only be used with the 31 flash parameter sets,
not with parameter sets from a memory card or PC.
