4.2 Connecting several devices
1.
2.
3.
Color coding
on pin 1
Ribbon cable female connector
Recommended gap for
ribbon cable female
connectors
Further devices are
interconnected via this
connector.
58 mm

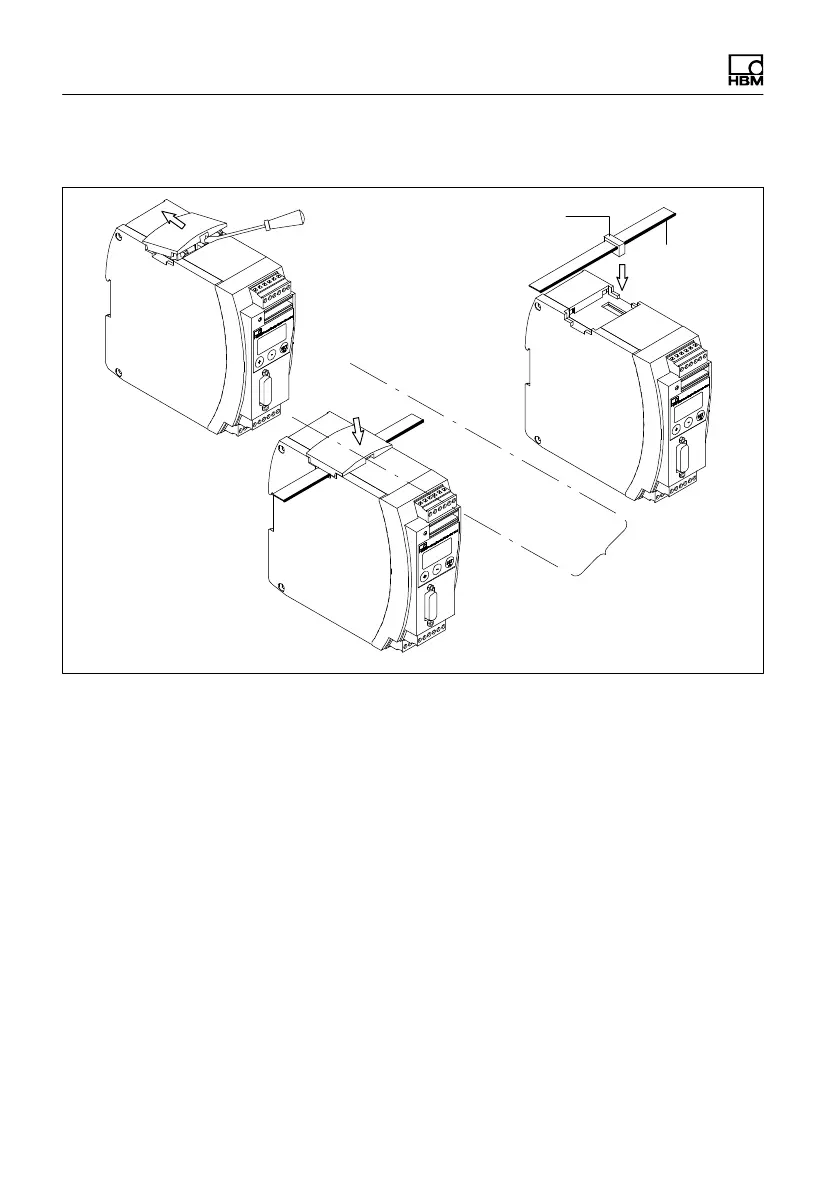

Fig. 4.4 Connecting a ribbon cable
You can connect up to four MP85A process controllers via a ribbon cable. This
cable takes care of the local supply voltage, CAN bus connection and carrier
frequency synchronization between the devices.
