Switch settings/Replacing the battery
MP85A A0293_06_E00_03 HBM: public 49
Battery position
-
+

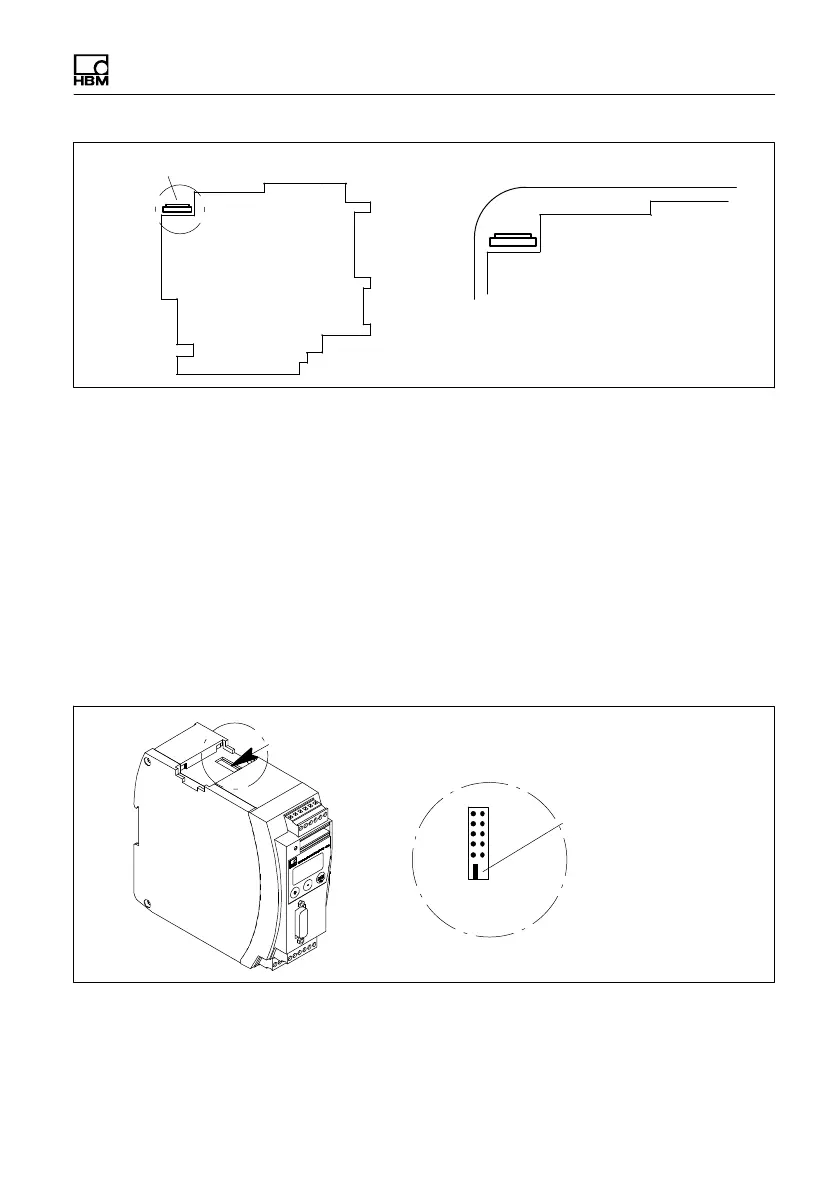

Fig. 6.4 Correct battery position
The buffer battery is only required for the integrated real-time clock. The device
functions are not affected by the battery. However, the time is also saved with
the curve and results files. Therefore, set the correct time and date in the
device (PME Assistant: “Basic settings” menu).
There is no automatic summer/winter time switchover.
6.3 CAN termination resistor
Switch the CAN termination resistor on or off using switch S2 (see Fig. 6.5).
Toggle switch S2 for
termination resistor
ON OFF
S2
Fig. 6.5 Switch for CAN bus termination resistor
