HBM MP85A - Evaluation Criteria

Measurement procedure
MP85A A0293_06_E00_03 HBM: public 77
Fig. 8.8 shows two measured curves: On the left, measured curve 1 with a
mean value in the upper section of window 2; on the right, measured curve 2
with a mean value in the center of window 2. This means that window 3 is also
shifted down as compared with the graph on the left.
8.5 Evaluation criteria
The MP85A process controller has different window types to allow the univer
sal evaluation of different curve shapes using the window method. These win
dow types can be mixed as desired for each measured curve. If you wish to
monitor the entire process seamlessly, an envelope curve is available.

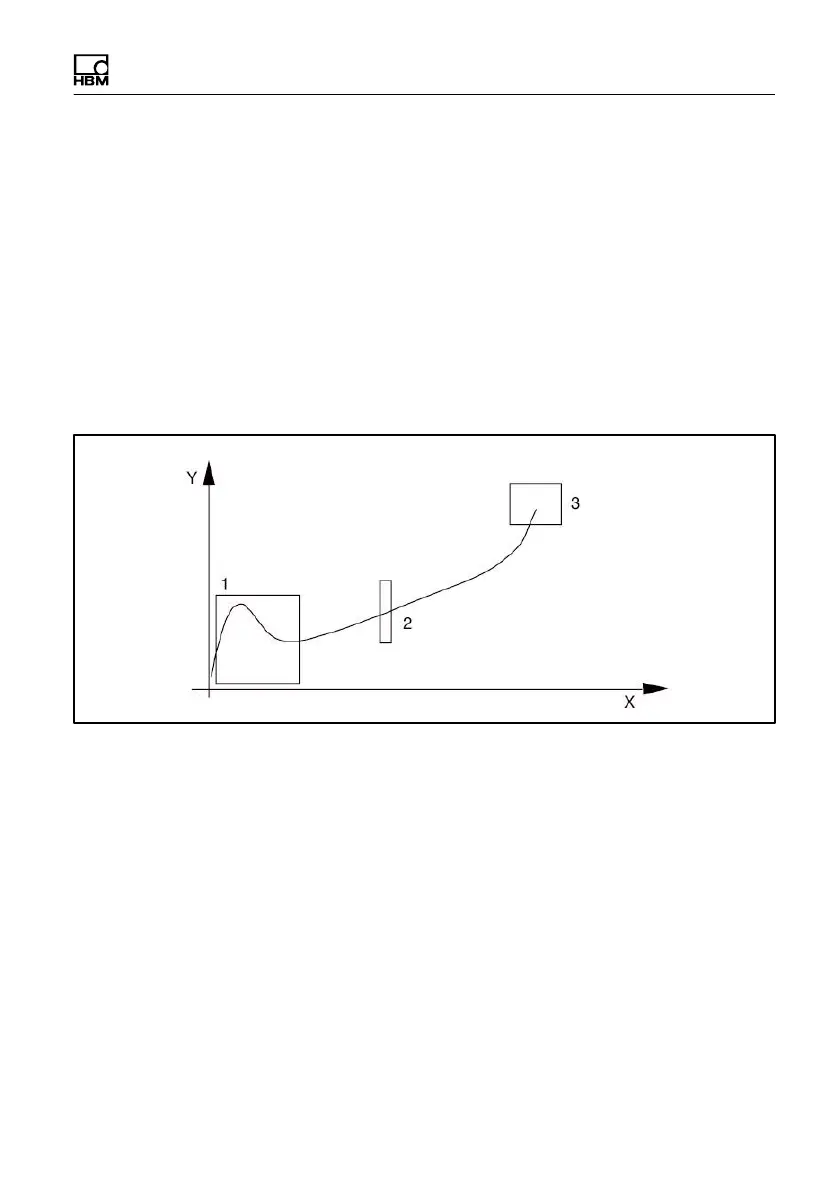

Fig. 8.9 Evaluation method using tolerance windows
Thread-in window
Checks that the fitting partners thread in correctly and are not askew.
A real-time signal indicates a thread-in problem (e.g. the window is exited from
the top). Use this for press control, e.g. for initiating the press return stroke.
