Electrical connection
36 A0293_06_E00_03 HBM: public MP85A
1
2
4
Supply voltage 0 V (GND).....
Output signal -10 ... +10 V.....
RANGE 1/RANGE 2 (CMA only).....
TEDS.....
MEASURE/RESET.....
5
white
yellow
gray
3
6
7
8
Measurement ground.....
Do not use !.....
Supply voltage 18 ... 30 V DC
1)
.....
pink
red
M12 x 1, 8-pin
1)
Operation in a SELV (safety extra low voltage) circuit
7
3
5
2
8
MP85A process
controller
Sensor x/y
(screw terminals
5 and 6)
CMD
MP85A process controller digital OUT
(reset piezo sensor);
screw terminal 3 or 4 (output)

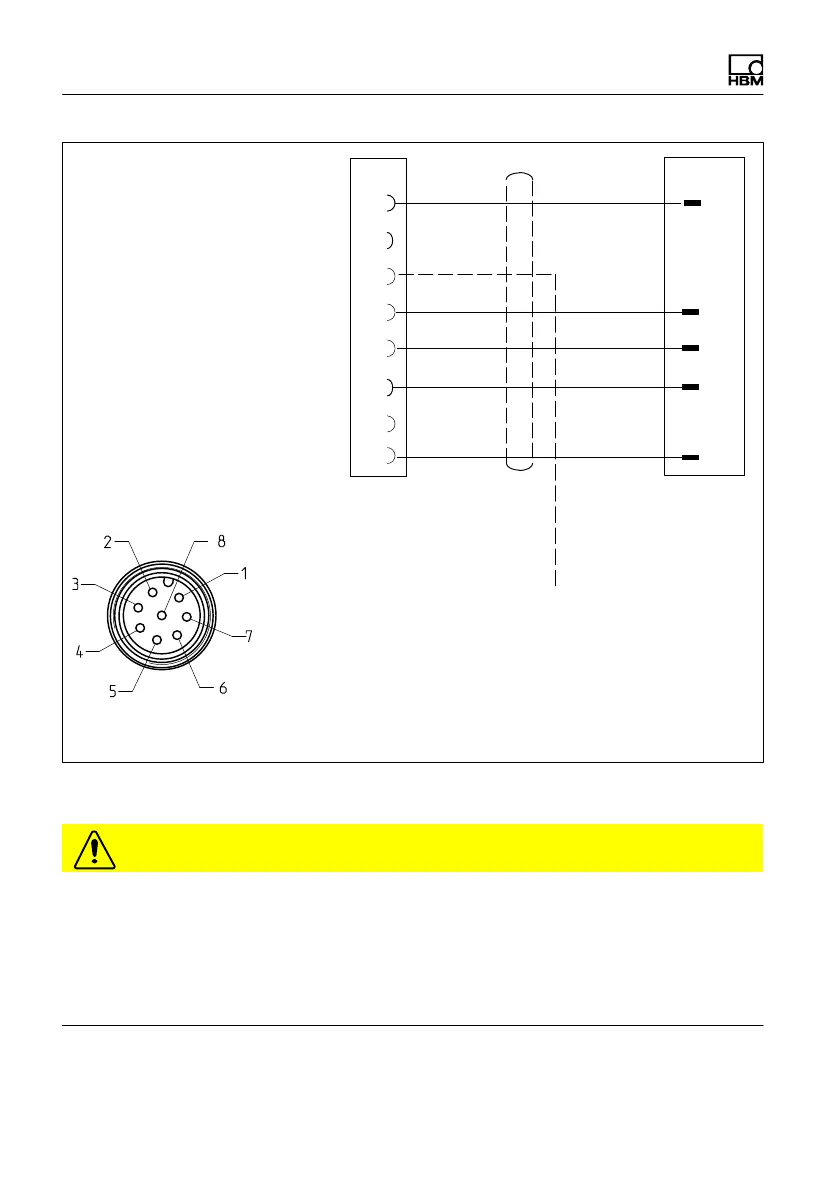

Fig. 5.10 Connection of the piezoelectric CMA/CMD charge amplifier
CAUTION
Although the output signal is still in the range -10 ... +10V, force can still be
present after a RESET. The addition of further loads can lead to an overload
and therefore damage to components and danger to persons.
Make sure that the force transducer is not overloaded, even if the output signal
is still in the -10 ... +10V range.
