Measurement procedure
MP85A A0293_06_E00_03 HBM: public 79

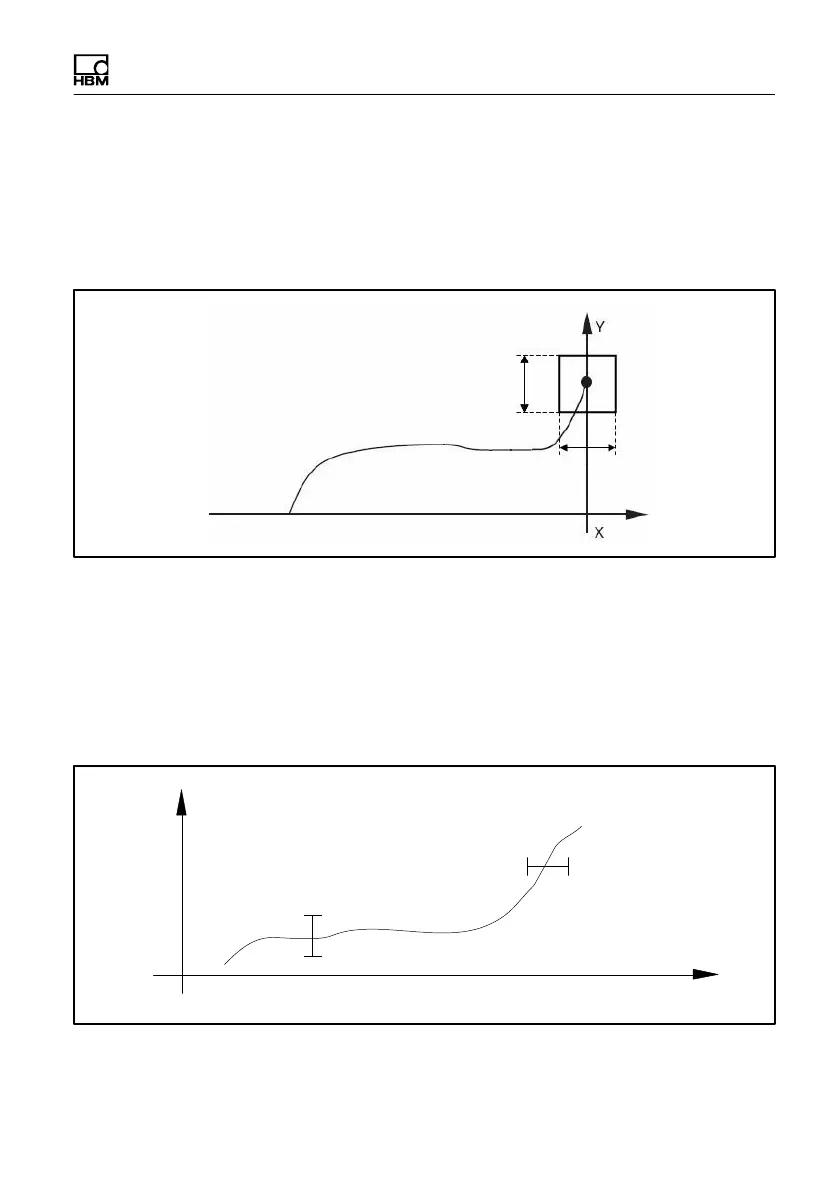

Block window
The block window monitors the block size and block force of a press-fitting
process. With this window type, the curve must enter at the given entry side
and must not exit the window. The entry side can be freely selected (left, right,
top, bottom, any).
Permitted block force
Permitted block size
Fig. 8.12 Block window
Thresholds
Thresholds monitor the process continuously in very restricted ranges. The
thresholds can be positioned vertically or horizontally. To protect the machine,
these evaluation elements can also monitor the process in real time and send
signals to the control system via a digital output or the fieldbus.
y
x
y-threshold
x‐threshold
Fig. 8.13 Thresholds
