7 Cleaning and maintaining the heating system – Procedure
148
8. Release and remove the M8
screws (2) using a 13 mm
spanner.
9. Remove the deflector
plate (1).

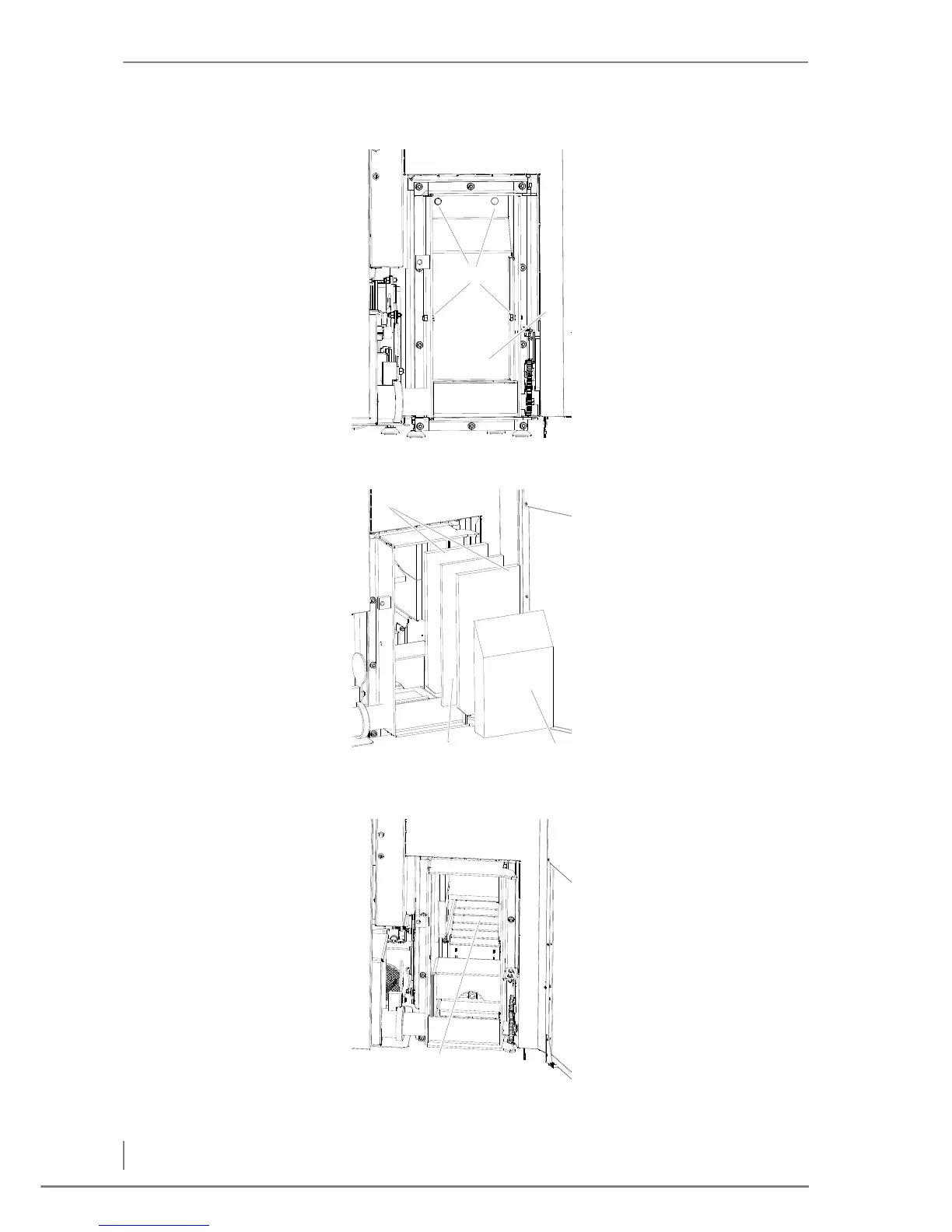

Figure 7/5 - Removing the deflector plate
2
1
10.Remove the insulating
piece (2).
11.Remove the two stones (1)
lying behind it with the
insulation in between (3).
Figure 7/6 - Removing stones and insulation in between
1
2
3
12.Check the stepped grate (1)
for ash and dirt.
13.If necessary, clean the
stepped grate (1) with a
vacuum cleaner.
Figure 7/7 - Checking and cleaning the stepped grate
1
