HDG Pelletmaster 15 - Connecting the Pressure Equalisation Hoses

4 Planning and installation – Installing the heating system
50
CONNECTING THE PRESSURE EQUALISATION HOSES
1. Slide the hose clip (1) onto the long pressure equalisation hose (3).
2. Attach the long pressure equalisation hose (3) on the connection
nozzle on the ignition fan (2).
3. Fasten the long pressure equalisation hose (3) with the hose
clip (1).
4. Slide the hose clip (1) onto the short pressure equalisation
hose (3).
5. Insert the short pressure equalisation hose (3) onto the
connection nozzle on the rotary feeder (2).
6. Fasten the short pressure equalisation hose (3) with the hose
clip (1).
✓ The pressure equalisation hoses have been connected.

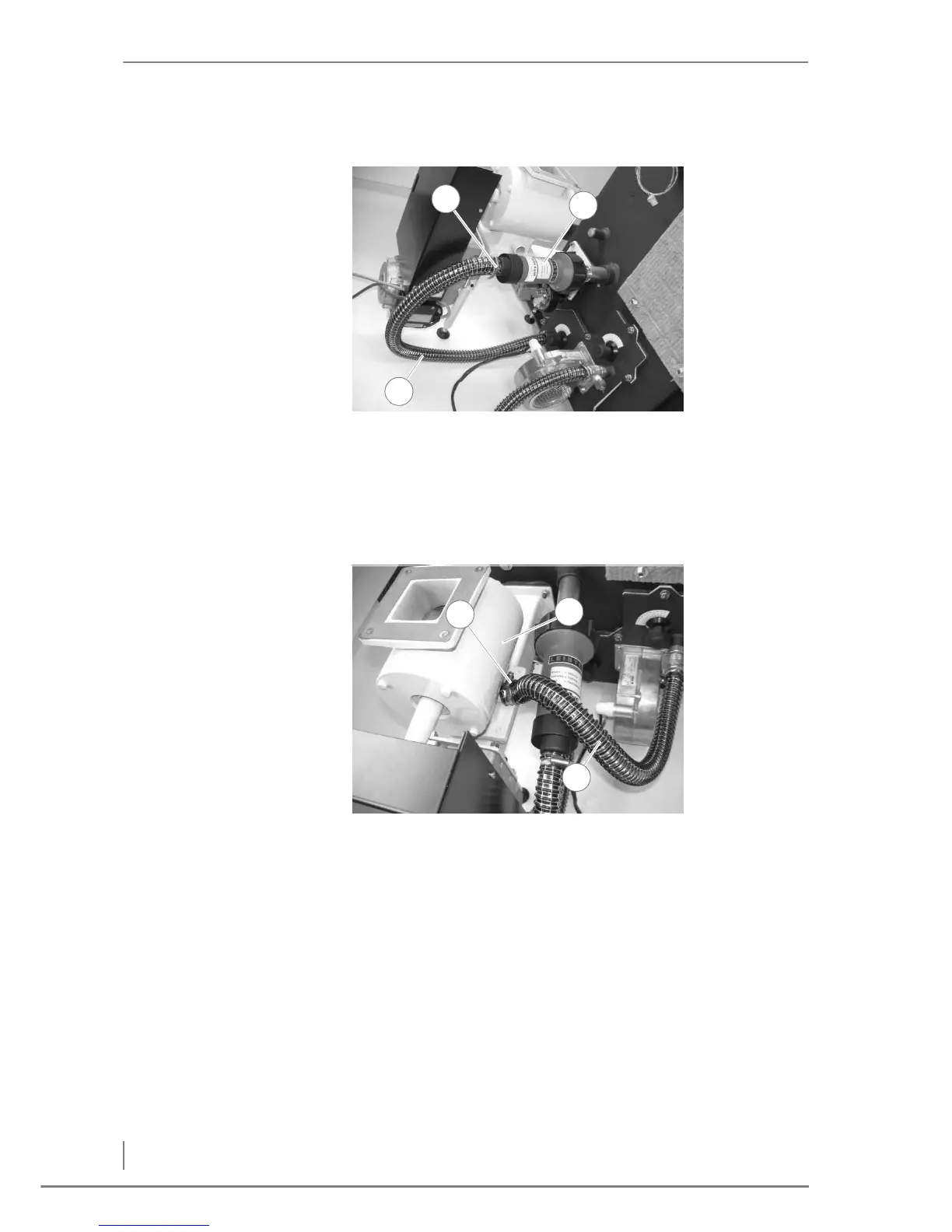

Figure 4/21 - Connecting the long pressure equalisation hose
1
3
2
Figure 4/22 - Connecting the short pressure equalisation hose
1
3
2
