57
8. Mount the pellet vacuum container cover with the suction turbine
at the rear on the intermediate container using a 4 mm hexagon
socket wrench.
9. Lay the cable (1) of the suction turbine and the fill level sensor in
the cable channel (2).
✓ The pellet vacuum container has been installed.
INSTALLING THE WIRING IN THE CONTROL CABINET
1. Connect the plug on the control cabinet (1).
✎ See HDG Hydronic circuit diagram.

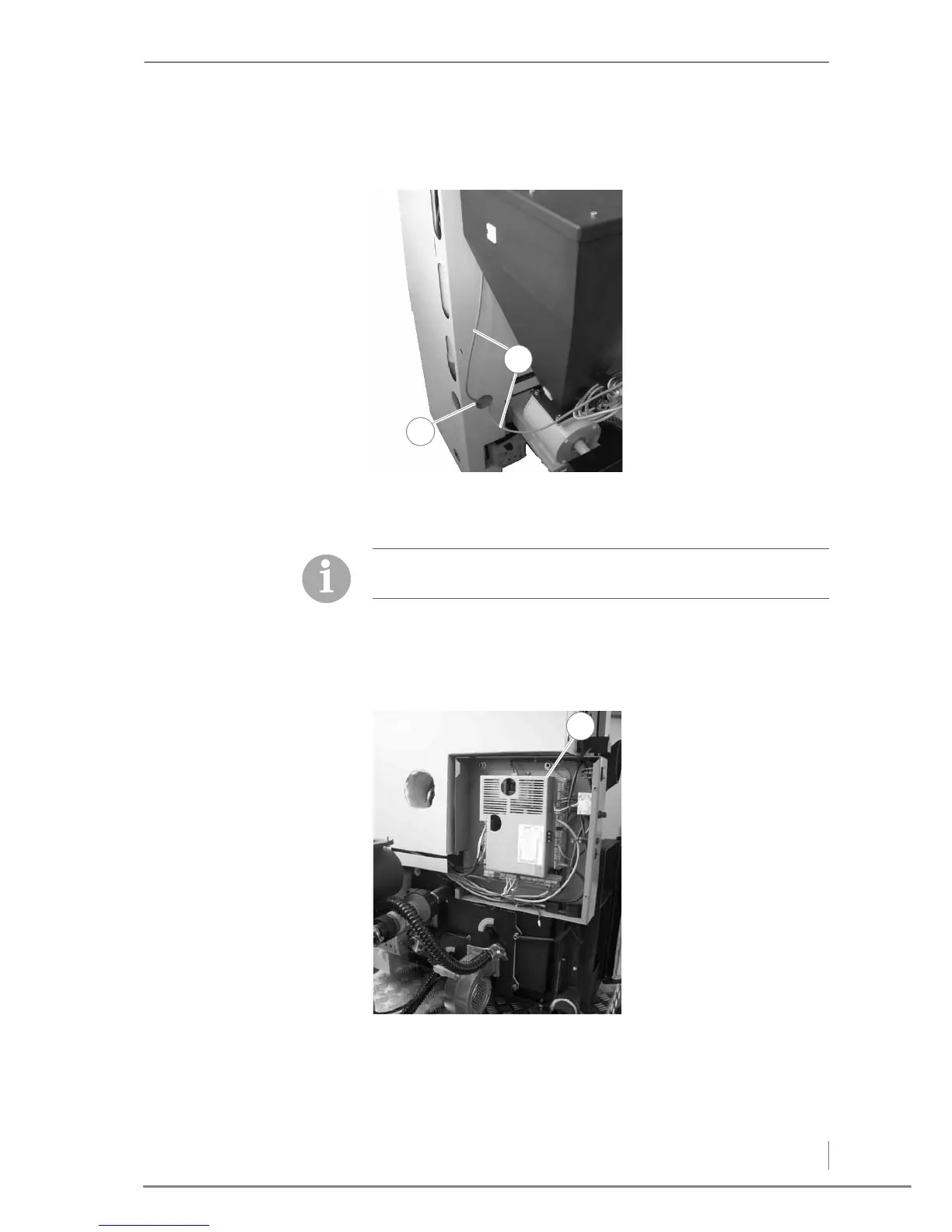

Figure 4/35 - Installing the pellet vacuum container
Connect the thermal safety device, which is used here as an
extinguisher, with a suitable flexible hose.
Figure 4/36 - Installing the wiring in the control cabinet
