MOUNTING THE ASH BOX AND ATTACHING THE TECHNICAL
COMPONENTS DOOR
1. Place the door frame (1) on the stud bolt (2) of the plastic foot.
2. Insert the stud bolt of the plastic foot (2) through the front hole of
the technical components (1).

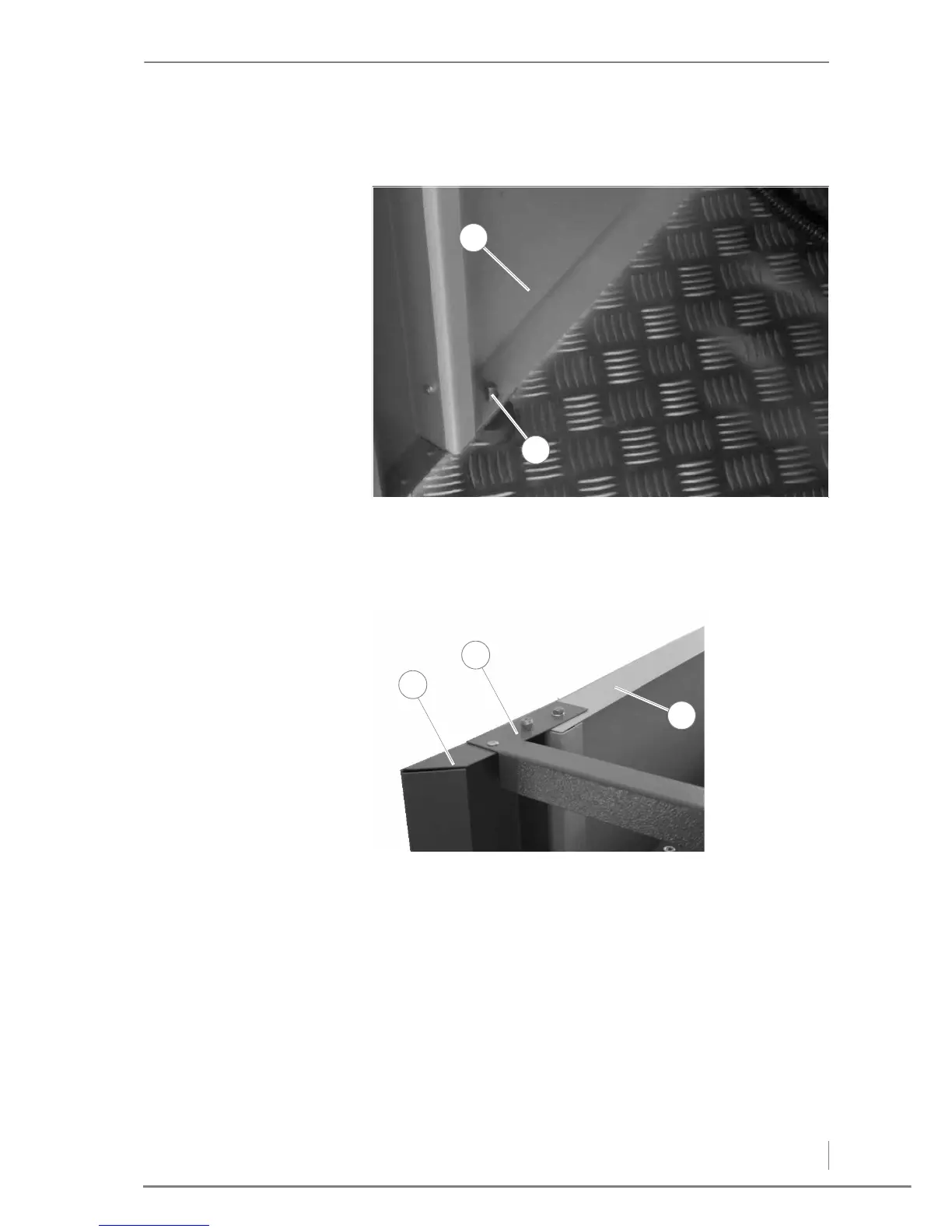

Figure 4/39 - Attaching the plastic feet
1
2
Figure 4/40 - Attaching the door frame
3
1
2
