INSTALLING THE SLOPING FLOOR
PANELS
5. Screw the sloping floor panels to the bearing beams.
✓ The sloping floor panels have been installed.
1 Sloping floor panels
A) 28 cm
B) min. 5.5 cm
C) 25 cm
4.7 Delivery and vacuum delivery system
INSTALLING THE TRANSFER
STATION
1. From the pellet bunker, slide the end of the transfer station (2)
with the flange (1) through the hole in the wall.
When installed, the lowest point of the sloping floor panels must be
at least 5.5 cm above the top edge of the finished floor in the room
where the boiler is installed.
Please note that if the level of the pellet bunker and that of room
where the boiler is installed are different, the clearance between
the intersection of the sloping floor panels and the boiler room
level must be adjusted.

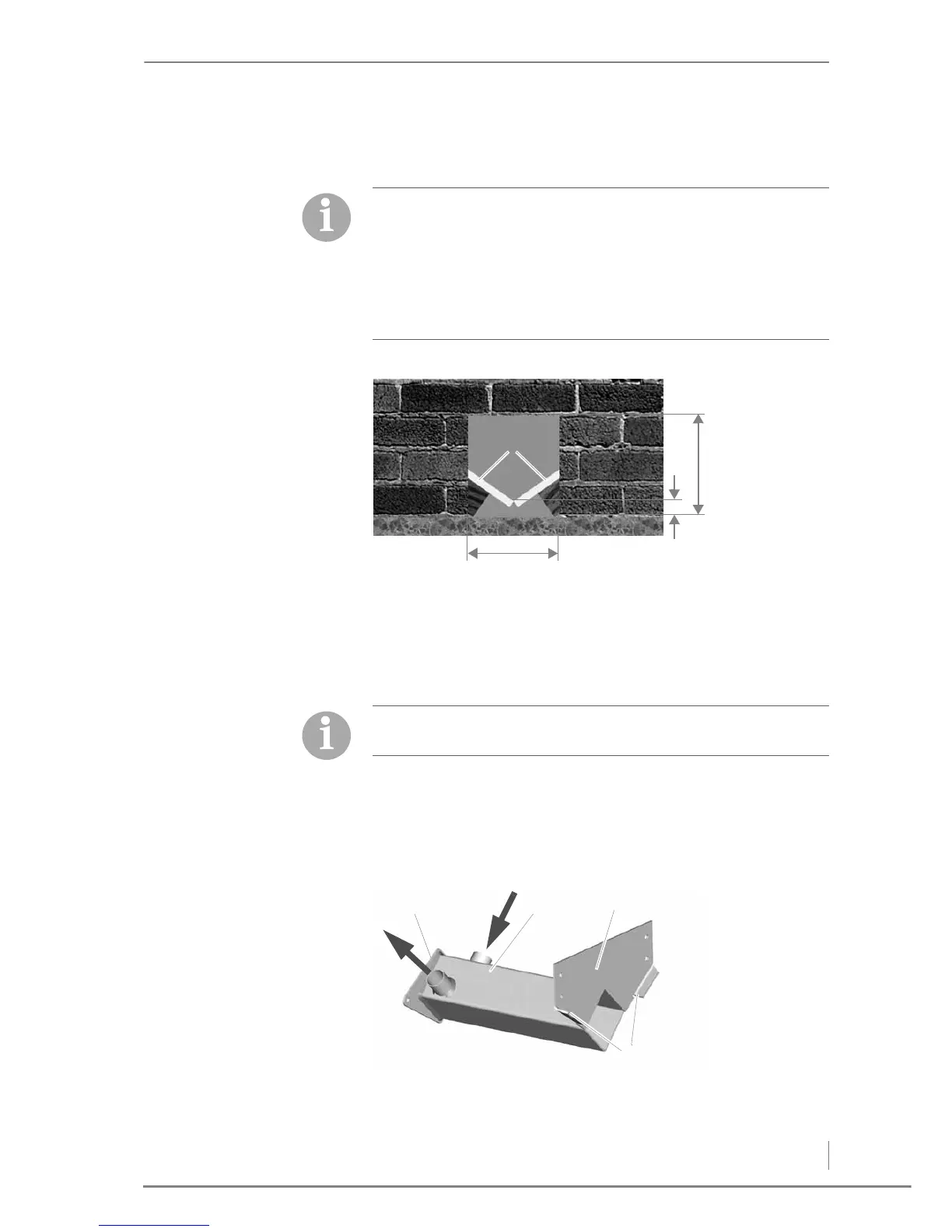

Figure 4/63 - Passage through the wall
A
C
1
B
Dimension B must be more than 5.5 cm, to avoid problems
installing the transfer station.
Figure 4/64 - Installing the transfer station
4
1
2
3
