2. Ensure that both bearing faces (4) lie flat on the sloping floor.
3. Use the supplied screws to fasten the other flange (3) to the wall.
✓ The transfer station has been installed.
I
NSTALLING THE DELIVERY
AUGER
4. Pull the feather key (1) out of the delivery auger (2).
5. From the pellet bunker side, slide the delivery auger (2) out
through the transfer station (1).
6. Insert the feather key back in the delivery auger.
✓ The delivery auger has been installed.

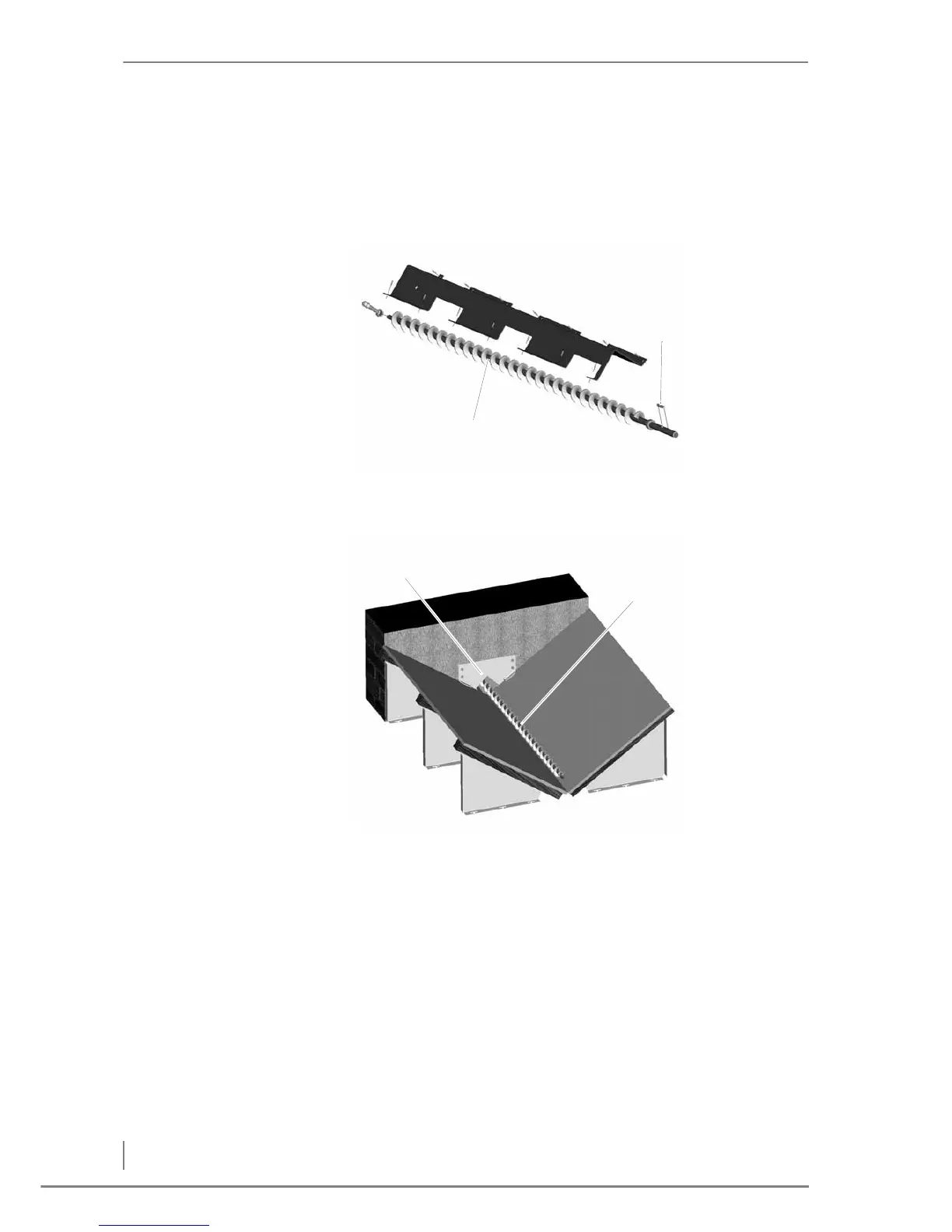

Figure 4/65 - Removing the feather key
1
2
Figure 4/66 - Installing the delivery auger
1
2
