HDG Pelletmaster 15 - Fitting the Covers

4 Planning and installation – Installing the heating system
61
8. Firmly bolt the bracing and support plate (1) on the left plastic
foot of the boiler (2) with a 17 mm spanner and on the plastic foot
on the technical components with the M10 nuts.
9. Insert the ash box (1) in the bracing and support plate (3) and slide
the ash box on the connection of the auger channel (2).
10.Close the clamp lock (4).
11.Screw the door to the door frame.
✓ The ash box and the door of the technical components have been
installed.
FITTING THE COVERS
1. Place the right, upper cover (1) on the rear of the boiler.

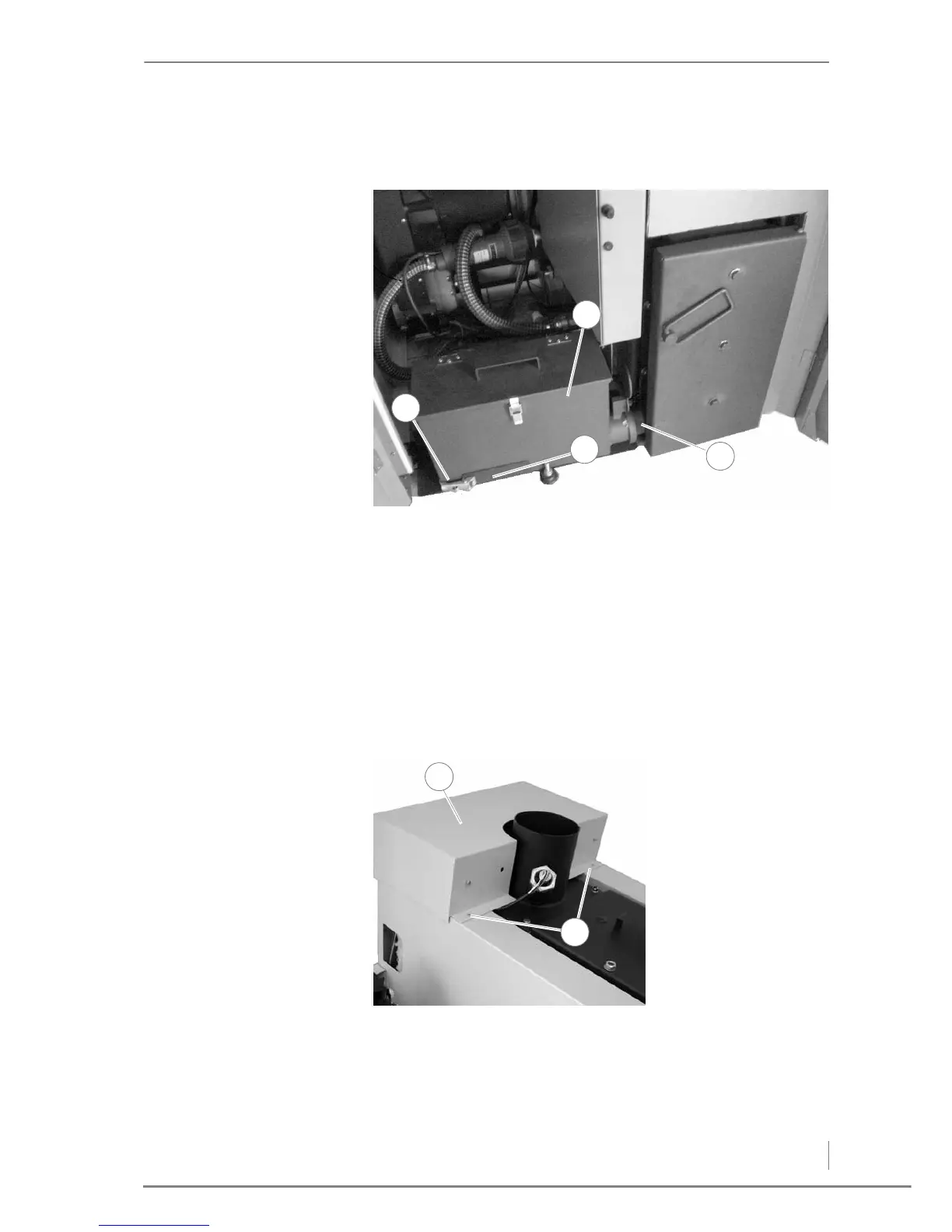

Figure 4/43 - Attaching the lower brace
2
3
1
4
Figure 4/44 - Fitting the right rear cover
1
2
